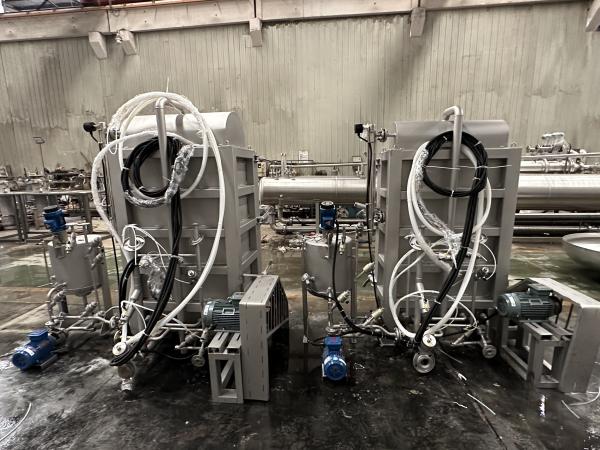

Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Acrylic Fabric Spray Type Hank Dyeing Machine SUS316L Full Automatic Control System
Specifications
Brand Name :
Alees
Model Number :
AS-Y
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD5000-250000
Packaging Details :
Wooden Case/Plastic Film
Delivery Time :
6-9 weeks
Supply Ability :
50 sets per month
Meterial :
SUS 316L
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Voltage :
380V-50HZ
Description

Introduction

AS-Y series hank yarn dyeing machine processes cotton, wool, acrylic, and blended twisted yarn at 98°C under normal pressure, completing puffing, scouring, bleaching, dyeing, and softening in one cycle.Its hanging rod spacing adjusts from 426 to 855 mm to accommodate different yarn lengths, while the full-layer model suits varied and special-sized yarns. An automatic forward-reverse controller ensures uniform dyeing, and a variable-speed circulating pump adapts to different yarn types. The machine supports series operation to minimize batch variation.

Technical Parameters

-Maximum operating temperature: 98℃

-Temperature accelerating rate: 25℃-98℃ about 4℃/minute

(Saturated vapor pressure: Mpa 0.7)

(7kg/cm2dried satured steam manometer)

Model and Specifications

Model

 General Power(KW) Standard Form Three layer model

Capacity

(kg)

L

(mm)

W

(mm)

H

(mm)

Capacity

(kg)

L(mm)

W

(mm)

H

(mm)
AS-Y-5 1.1 2.2 1235 820 1937
AS-Y-10 1.1 4.5 1235 900 1937
AS-Y-20 1.1 9 1400 1050 2080
AS-Y-30 2.25 14 1714 1125 2050
AS-Y-50 2.25 23 1714 1326 2050
AS-Y-100 2.95 45 2417 1357 2155
AS-Y-200 4.75 90 2830 1637 2210
AS-Y-300 5.5 140 2815 1590 3150 170 2815 1590 3410
AS-Y-400 7 185 2905 1880 3160 235 2905 1880 3420
AS-Y-600 9 275 3510 2178 3305 340 3510 2178 3565
AS-Y-800 12.5 360 3550 2490 3310 440 3550 2490 3570
AS-Y-1000 12.5 455 3775 2490 3310 550 3775 2490 3570
AS-Y-1200 13.5 545 3910 2760 3570 650 3910 2760 3830
AS-Y-1000X2 25 910 6935 2555 3310 1100 6935 2555 3570
AS-Y-1200X2 33 1090 7105 2830 3570 1300 7105 2830 3830
AS-Y-1000X4 47 1820 6935 5000 3310 2200 6935 5000 3570
