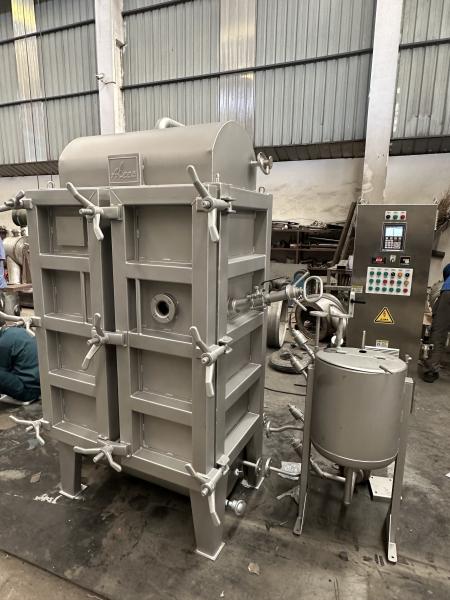

Energy Saving Full Automatic Control System Bulked Acrylic Hank Yarn Dyeing Machine
Energy Saving Full Automatic Control System Bulked Acrylic Hank Yarn Dyeing Machine
Energy Saving Full Automatic Control System Bulked Acrylic Hank Yarn Dyeing Machine
Energy Saving Full Automatic Control System Bulked Acrylic Hank Yarn Dyeing Machine
Energy Saving Full Automatic Control System Bulked Acrylic Hank Yarn Dyeing Machine
Energy Saving Full Automatic Control System Bulked Acrylic Hank Yarn Dyeing Machine
Specifications
Brand Name :
Alees
Model Number :
AS-Y
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD5000-250000
Supply Ability :
50 sets per month
Delivery Time :
6-9 weeks
Packaging Details :
Wooden Case/Plastic Film
Meterial :
SUS 316L
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Voltage :
380V-50HZ
Description

Introduction


AS-Y series hank yarn dyeing machine processes cotton, wool, acrylic, and blended twisted yarn at 98°C under normal pressure, completing puffing, scouring, bleaching, dyeing, and softening in one cycle.Its hanging rod spacing adjusts from 426 to 855 mm to accommodate different yarn lengths, while the full-layer model suits varied and special-sized yarns. An automatic forward-reverse controller ensures uniform dyeing, and a variable-speed circulating pump adapts to different yarn types. The machine supports series operation to minimize batch variation.


Technical Parameters


-Maximum operating temperature: 98℃

-Temperature accelerating rate: 25℃-98℃ about 4℃/minute

(Saturated vapor pressure: Mpa 0.7)

(7kg/cm2dried satured steam manometer)


Model and Specifications


Model

Capacity (KG)

Dimension

Main Pump Power (KW)

L*W*H (MM)

AS-Y-5

2.2

1235*820*1937

1.1

AS-Y-10

4.5

1235*900*1937

1.1

AS-Y-20

9

1400*1050*2080

1.1

AS-Y-30

14

1714*1125*2050

2.25

AS-Y-50

23

1714*1326*2050

2.25

AS-Y-100

45

2417*1357*2155

2.95

AS-Y-200

90

2830*1637*2210

4.75

AS-Y-300

140

2815*1590*3150

5.5

AS-Y-400

185

2905*1880*3160

7

AS-Y-600

275

3510*2178*3305

9

AS-Y-800

360

3550*2490*3310

12.5

AS-Y-1000

455

3775*2490*3310

12.5

AS-Y-1200

545

3910*2760*3570

13.5

AS-Y-1000*2

910

6935*2555*3310

25

AS-Y-1200*2

1090

7105*2830*3570

33

AS-Y-1000*4

1820

6935*5000*3310

47
