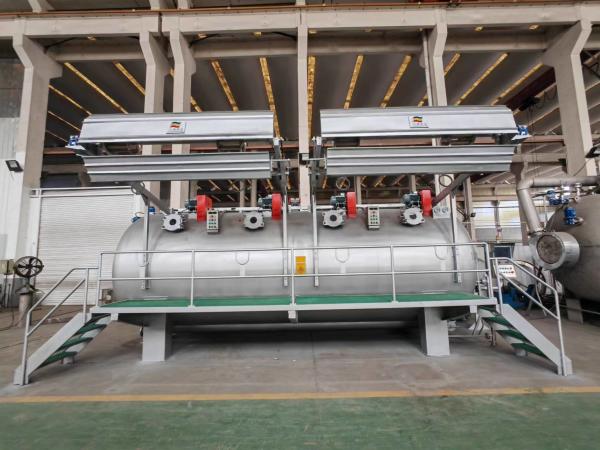

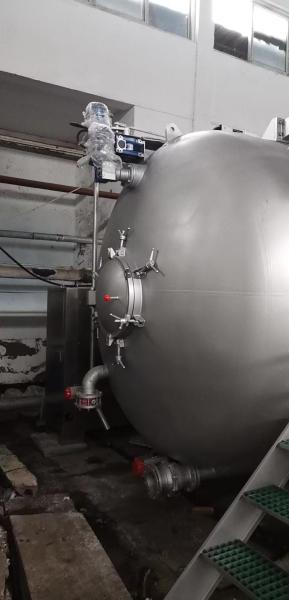

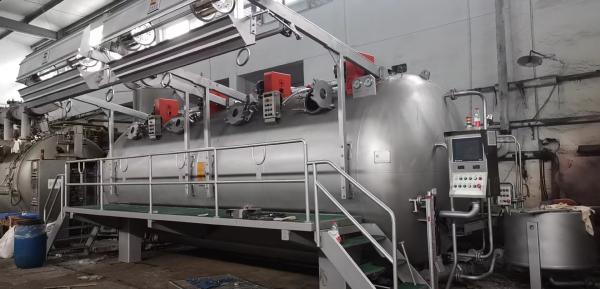

Full Automatic Rope Dying Machine Low Consumption O Shape With SETEX747 Controller
Full Automatic Rope Dying Machine Low Consumption O Shape With SETEX747 Controller
Full Automatic Rope Dying Machine Low Consumption O Shape With SETEX747 Controller
Full Automatic Rope Dying Machine Low Consumption O Shape With SETEX747 Controller
Full Automatic Rope Dying Machine Low Consumption O Shape With SETEX747 Controller
Full Automatic Rope Dying Machine Low Consumption O Shape With SETEX747 Controller
Specifications
Brand Name :
Alees
Model Number :
AS-A
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
USD5000-250000
Packaging Details :
Wooden Case/Plastic Film
Delivery Time :
6-9 weeks
Supply Ability :
50 sets per month
Shape :
O Shape
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Description

Introduction


AS-A series is a groundbreaking U-flow dyeing machine designed to transform textile processing with its ultra-low liquor ratio of 1:5-1:6. By integrating an innovative dye circulation system and intelligent fabric handling technology, it achieves exceptional dyeing uniformity while significantly reducing resource consumption. This advanced system cuts additive usage by over 60% and reduces dyestuff requirements by 5%-10% through precise chemical dosing controls. Environmental performance is equally remarkable, with a 60% reduction in wastewater discharge and substantial decreases in water, energy, and steam consumption compared to conventional dyeing systems.


Technical Parameters


-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

100℃-130℃ about 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

100℃-85℃average2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6



Model and Specifications


Model

Capacity (KG)

Dimension

Main Pump Power (KW)

L*W*H (MM)

AS-A-Mini-25KG

25

2800*3400*2900

4

AS-A-Mini-50KG

50

3000*3600*3150

4

AS-A-Mini-100KG

100

3000*3700*3300

4

AS-A-1T

250-300

3900*5500*3750

11

AS-A-2T

500-600

5400*5500*3750

18.5

AS-A-3T

750-900

7000*5720*3750

30

AS-A-4T

1000-1200

8500*5750*3750

37

AS-A-6T

1500-1800

12000*5750*3750

45
