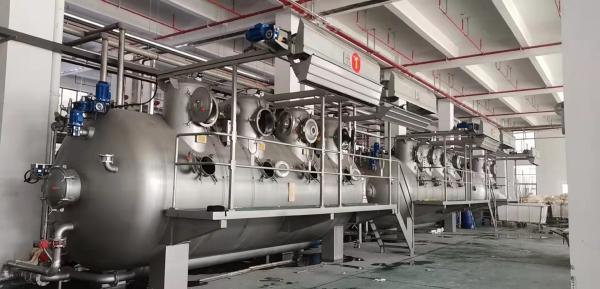

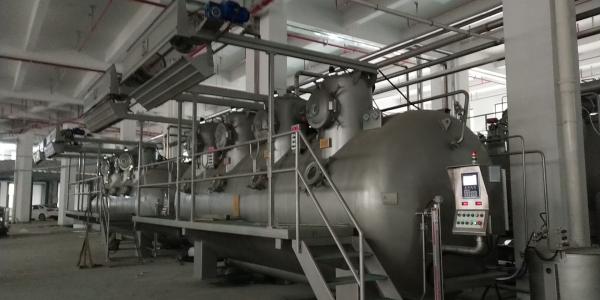

Textile High Temperature Overflow Dyeing Machine
Textile High Temperature Overflow Dyeing Machine
Textile High Temperature Overflow Dyeing Machine
Textile High Temperature Overflow Dyeing Machine
Textile High Temperature Overflow Dyeing Machine
Textile High Temperature Overflow Dyeing Machine
Specifications
Brand Name :
Alees
Model Number :
AS-Towel
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
USD5000-250000
Packaging Details :
Wooden Case/Plastic Film
Delivery Time :
6-9 weeks
Supply Ability :
50 sets per month
Shape :
O Shape
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Description

Introduction

AS-Towel series is a groundbreaking U-flow dyeing machine designed to transform textile processing with its ultra-low liquor ratio of 1:5-1:6. By integrating an innovative dye circulation system and intelligent fabric handling technology, it achieves exceptional dyeing uniformity while significantly reducing resource consumption. This advanced system cuts additive usage by over 60% and reduces dyestuff requirements by 5%-10% through precise chemical dosing controls. Environmental performance is equally remarkable, with a 60% reduction in wastewater discharge and substantial decreases in water, energy, and steam consumption compared to conventional dyeing systems.

Technical Parameters

-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

100℃-130℃ about 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

100℃-85℃average2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6

Model and Specifications

Model

Capacity

(kg)

Dimension (mm)

(L*W*H)

General Power

(kw)
AS-Towel-1T 250-300 3670*4850*3470 5.5
AS-Towel-2T 500-600 4694*4850*3648 11
AS-Towel-3T 750-900 6220*4880*3545 18.5
AS-Towel-4T 1000-1200 7276*4880*3748 30
AS-Towel-5T 1250-1500 9384*4788*3748 45
