Specifications
Brand Name :
QingDao Zhenxiong
Model Number :
SJ120
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
220000 - 300000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Purpose :
produce two-layer, three-layer, multi-layer composite pipes or reinforced composite pipes
Equipment configuration :
customized production according to customer needs
Description
Large Diameter Multi Layer Plastic Pipe Machine Tube Extrusion Machine Energy Saving
Product Specifications
Purpose Produces two-layer, three-layer, and multi-layer composite pipes or reinforced composite pipes
Equipment Configuration Customized production according to customer requirements
High Performance HDPE Large Diameter Pipe Machine

Our energy-efficient HDPE large-diameter pipeline equipment enables flexible production through easy mold changes. By adding single screw extruders and updating the production line, you can manufacture two-layer, three-layer, or multi-layer composite pipes with reinforced structures.

Core Advantages
  • Professional single screw extruder with optimized variable pitch double linear wave design and strong cold reverse feed section ensures high output while maintaining stable material plasticization and reduced energy consumption

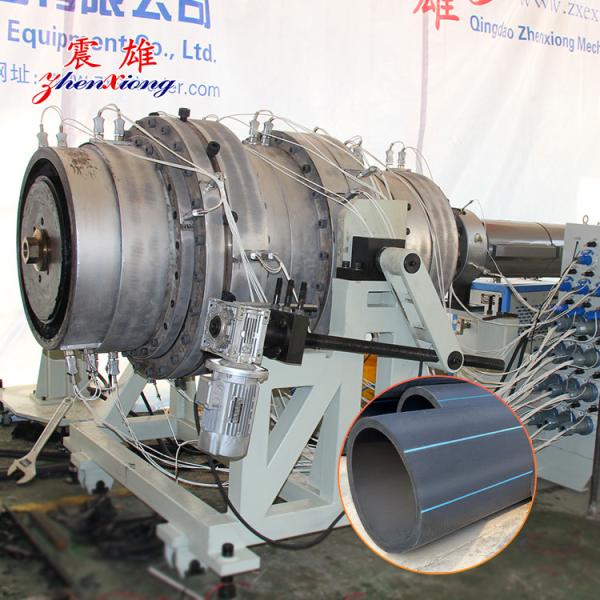

  • Spiral shunt head die provides uniform distribution without flow marks, guaranteeing consistent pipe wall thickness and smooth inner/outer surfaces
  • PLC control system enables full-line synchronization and automation with user-friendly intelligent interface
  • Dual waterway system allows filter replacement without shutdown and achieves high-speed cooling
  • Rubber block crawler traction with variable frequency speed control ensures smooth operation and reduced waste
  • Hydraulic feed chipless cutting mechanism produces clean, smooth end surfaces

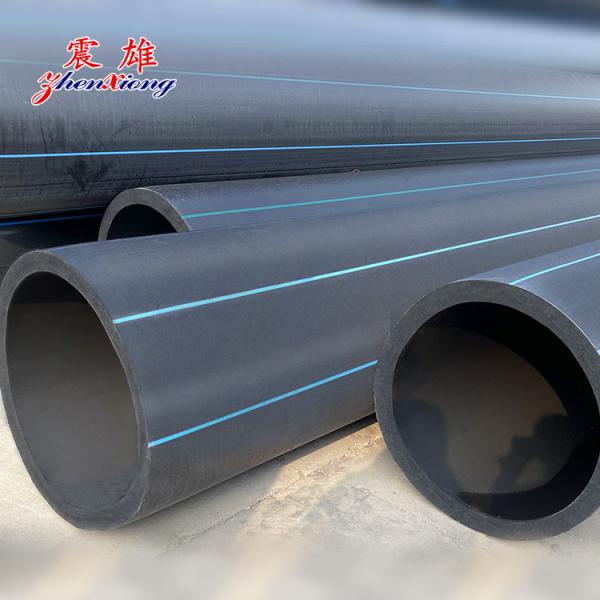

  • Resulting pipes feature smooth surfaces, high pressure resistance, corrosion resistance, aging resistance, and impact resistance
Production Line Specifications
Pipe Specifications (mm) Extruder Output (kg/h) Available Sizes
160-315 90×33 350-450 160,180,200,225,250,280,315
315-630 120×33 850-1000 315,355,400,450,500,560,630
710-1200 90×33 120×33 1200-1500 710,800,900,1000,1200
Application Areas
  • Urban water supply and drainage main pipes and branches
  • Pipe network reconstruction in urban renewal projects
  • Industrial pipelines for chemicals, food processing, paper manufacturing, and other raw material transport
  • Industrial wastewater and sewage discharge systems
  • Transport of minerals, coal ash, and river sediment
  • Agricultural irrigation systems
Product Images
Large Diameter Multi Layer Plastic Pipe Machine Tube Extrusion Machine Energy Saving Large Diameter Multi Layer Plastic Pipe Machine Tube Extrusion Machine Energy Saving Large Diameter Multi Layer Plastic Pipe Machine Tube Extrusion Machine Energy Saving Large Diameter Multi Layer Plastic Pipe Machine Tube Extrusion Machine Energy Saving
