Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
PVC
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
26800 - 55800 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Pipe specification :
75 - 160
Extruduer :
65 / 132
Remark :
75、90、110、125、140、160
Power Consumption :
37 kw
Extrusion capacity :
150 - 250 Kg / h
Overall dimension :
30000 * 1500 * 2800mm
Description

Customize Plastic Pipe Machine Low Scrap Rate Of PVC Pipes With Variable Frequency Speed Regulation


Our PVC pipe production line integrates instruments or PLC intelligent control system, with high degree of automation, convenient operation and maintenance, stable operation, which helps to reduce employee labor intensity and improve production efficiency.


Item

SJGF-50

SJGF-110

SJGF-160

SJGF-250

SJGF-400

SJGF-630

Extruder

SJZ45

SJZ55

SJZ65

SJZ65

SJZ80

SJZ92

Pipe range

16-40

50-110

63-160

110-250

200-400

315-630

Vacuum tank(mm)

5000

5000

5000

6000

6000

6000

Cutting machine (m/min)

3-12

2-8

2-8

0.4-3

0.2-4

0.4-3

Total power (kw )

66

62

89

95

135

255

Total length(mm)

17000

18000

20000

20500

28000

30000


Its core advantages are as follows:

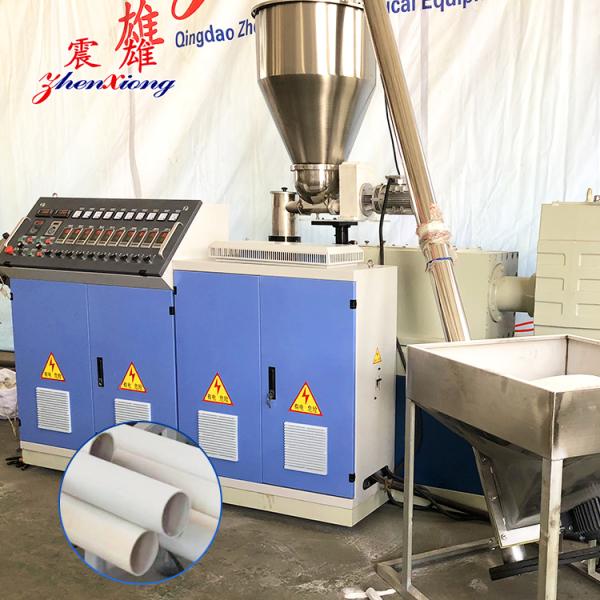

The conical twin-screw extruder has a large aspect ratio and a reasonable screw structure, achieving high-quality plasticization and high output while maintaining low energy consumption;
Special extrusion die design ensures smooth and uniform material flow, accelerates shaping, and improves product quality;
Automatic control of vacuum pump speed, low noise, and more energy-efficient;

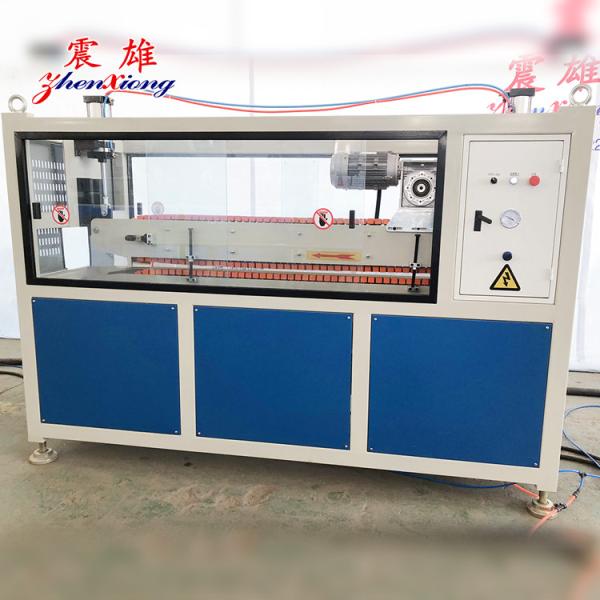

The traction equipment has stable frequency conversion speed regulation, effectively controlling the generation of waste products;
Optional online expansion machines and other automated peripheral devices are available to meet the needs of various pipe diameter expansion processing;
Fixed diameter sleeve with inlet pre cooling, suitable for high-speed extrusion needs;
Fully automatic chip free cutting, running clean and stable;
Produce pipes with smooth walls, light weight, high strength, and excellent corrosion resistance.


This production line can be used to produce PVC water supply and drainage pipes, suitable for municipal, industrial, civil water supply and drainage, as well as irrigation, garden watering and other occasions.
