32m Plastic Wire Making Machine Paint Broom Wire Manufacturing
32m Plastic Wire Making Machine Paint Broom Wire Manufacturing
32m Plastic Wire Making Machine Paint Broom Wire Manufacturing
32m Plastic Wire Making Machine Paint Broom Wire Manufacturing
32m Plastic Wire Making Machine Paint Broom Wire Manufacturing
32m Plastic Wire Making Machine Paint Broom Wire Manufacturing
32m Plastic Wire Making Machine Paint Broom Wire Manufacturing
32m Plastic Wire Making Machine Paint Broom Wire Manufacturing
Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
ZX - SZS
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
58000 - 70000USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Dimension :
32m * 1.5 * 2.8 m
Weight :
Weight approximately 6 tons
Note :
Different models and configurations are available for customization
Description

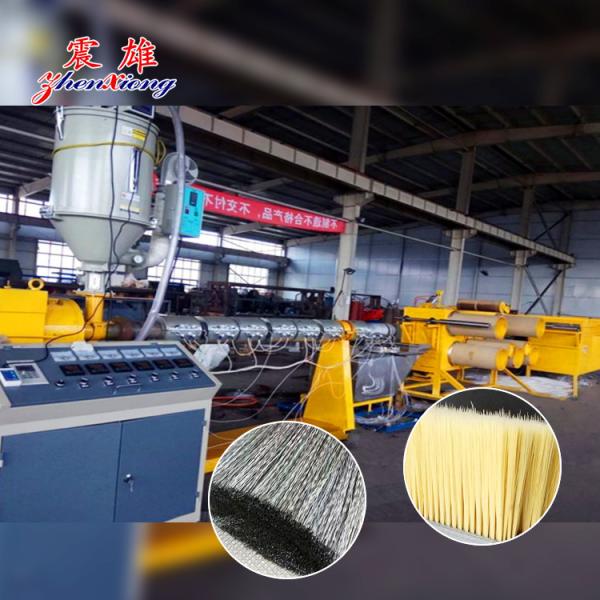

Energy Efficient Plastic Wire Making Machine Paint / Broom Wire Manufacturing Stable Operation

The paint brush wire/broom wire production equipment is equipped with a professional reducer for the extruder. The gears and shaft components are made of high-strength alloy steel, processed by carburizing, quenching, grinding and other processes, and equipped with oversized thrust bearings. It has the characteristics of high load-bearing capacity, stable transmission and high production efficiency.

Core advantages:

●The screw and barrel of the paint brush wire/broom wire production equipment are made of 38CrMoAL/A, nitrided, low noise, wear and corrosion resistance.

●The barrel of the paint brush wire/broom wire production equipment is cooled by air, and the temperature is automatically reduced when over-temperature; the heating method is ceramic stainless steel heating ring heating.

●The head mold (with metering pump) of the paint brush wire/broom wire production equipment is made of high-strength mold steel, which is wear-resistant and high-precision. The die head structure has been optimized and the wire output is more uniform.

●Vertical plastic dehumidifier dryer, automatic operation timing, overload automatic protection alarm.

●The hot water tank adopts overflow type, which allows the single wire to be heated more fully; The stretching machine is driven by helical gears for smoother operation.
●The paint brush/broom production equipment is equipped with a fully automatic temperature control distribution panel, digital intelligent temperature control instruments, and contactors using Siemens appliances and Omron temperature control meters, with high control accuracy.
●Equipped with an automatic drying hopper and automatic feeding machine, it has a high degree of automation and reduces labor costs.
●Double station rewinding machine (formula shaped rewinding frame) (also equipped with two circular telescopic adjustable rewinding frames)
●The extruded wire blanks from the paint brush/broom production equipment are cooled with water to control the crystallinity of the plastic and ensure the elongation rate during stretching.
●The oven channel is specially designed to be more energy-efficient, with even distribution of hot air.

Application industry:

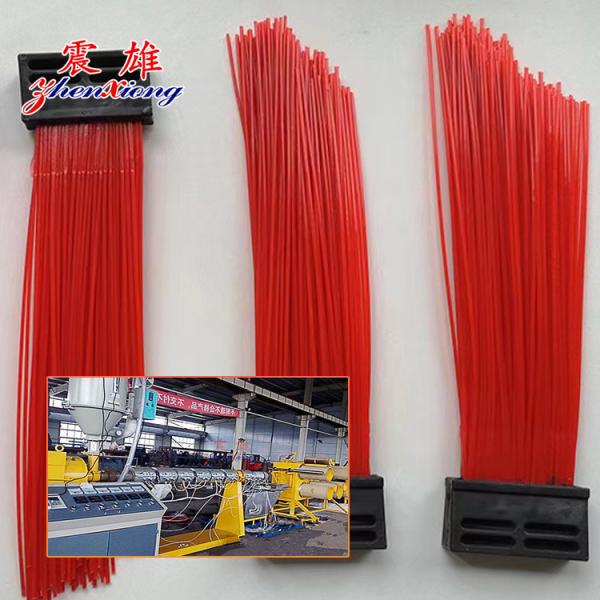

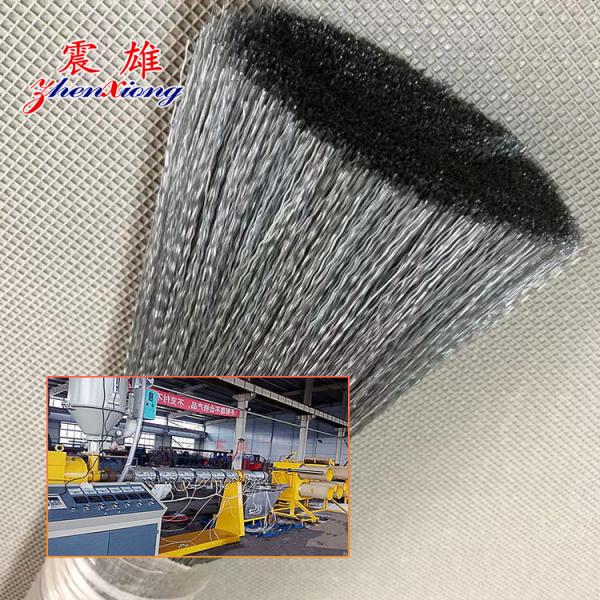

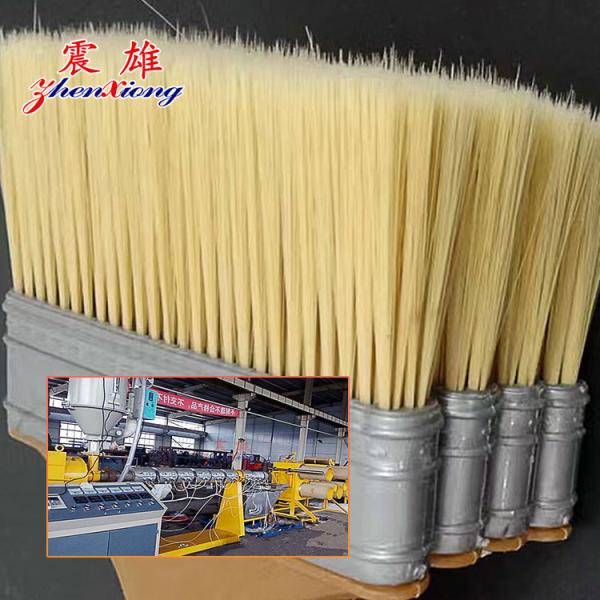

Cleaning brushes, broom brushes, paint brushes, etc.

Voltage

380V 50Hz

Control System

PLC

Weight

6T

Dimension

32000*1500*2800mm

Warranty

12 months

Application

Paint brush wire / broom wire
