Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
SZW
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
90000 - 120000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Production Capacity :
High
Main Motor Power :
55kW
Description

Synthetic Resin Tile Plastic Board Extrusion Machine PLC Control Precision Molding

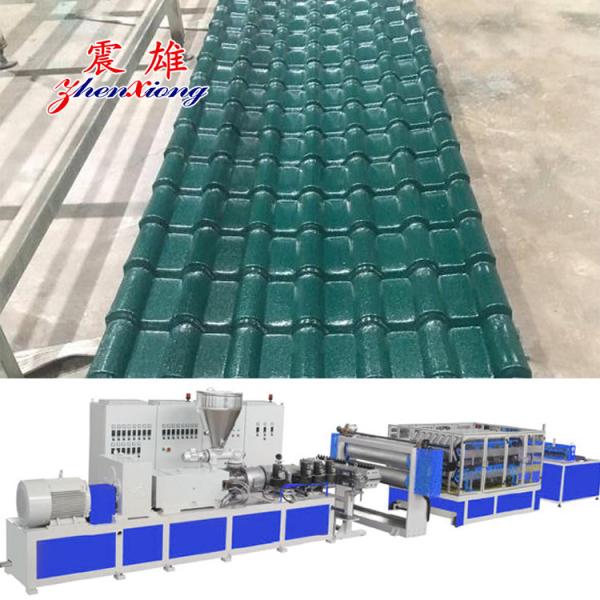

The synthetic resin tile production line adopts 80/156 conical double extruder to produce resin tiles, which have the advantages of smooth and flat board surface, good weather resistance and arbitrary length cutting.

Core advantages:

●The synthetic resin tile production line uses the process of first extruding the board and then press-molding. It features a simple structure, which makes operation and maintenance easy. Also, the stable molding ensures consistent synthetic resin tile quality, crucial for practical applications like roofing. press molding, which has the advantages of simple structure and stable molding.

●The sheet mold of the synthetic resin tile production line adopts a hanger-type mold, and the die mouth is equipped with an oil string device, which is conducive to temperature control and makes the produced sheets more uniform.

●The cutting saw blade of the synthetic resin tile production line adopts imported Kojiro saw blade, which has the advantages of smooth cutting surface and no edge collapse.

●The host adopts PLC touch screen frequency conversion control, the operation is more intuitive and convenient.
●The main machine of synthetic resin tile production line adopts vacuum exhaust, which is more conducive to improving the quality of products.
●The feed of the host adopts the metering feeding method to ensure the stability of the products with higher precision.

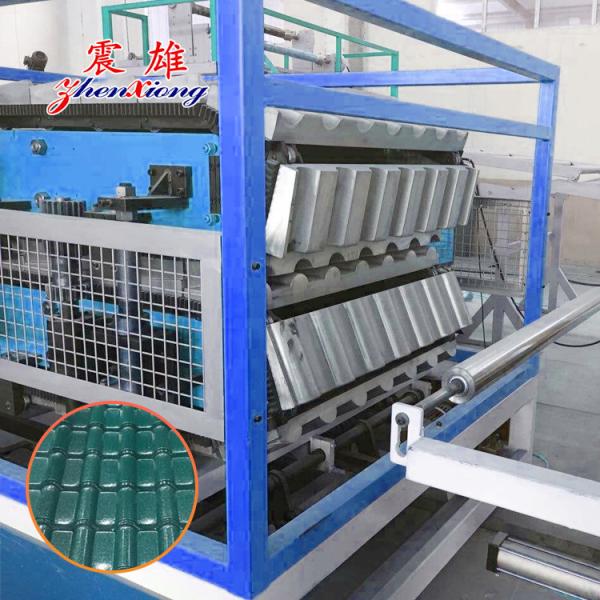

●The forming machine is composed of multiple sheet forming molds, which has the advantages of reliable and stable forming.
●Synthetic resin tile production wire cutting is equipped with dust collecting device, making the production site cleaner and sanitary.

Application range:

1. Suitable for cast-in-place concrete slab slope roofs and purlin system slope roofs.

2. Mainly used for multi-storey or low-rise residential buildings with high decoration requirements, and can also be used for park buildings, corridors in public places, etc. Compared with ordinary plastic tiles, it has good weather resistance, color retention and long service life.

3. Suitable for sloping roofs with suitable slopes.

Control System

PLC

Power Consumption

Low

Screw Material

38CrMoAlA

Screw Diameter

80 / 156 mm

Main Motor Power

55kW

Flow channel form

hanger type
