850 - 1000Kg/H Pvc Foam Board Extrusion Line PE Waterproof Shee Fast Output
850 - 1000Kg/H Pvc Foam Board Extrusion Line PE Waterproof Shee Fast Output
Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
FSJC
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
430000 - 480000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Control System :
PLC
Cooling Method :
Water Cooling
Production Speed :
0.3 - 3 m / min
Max. Board Width :
5000mm
Description

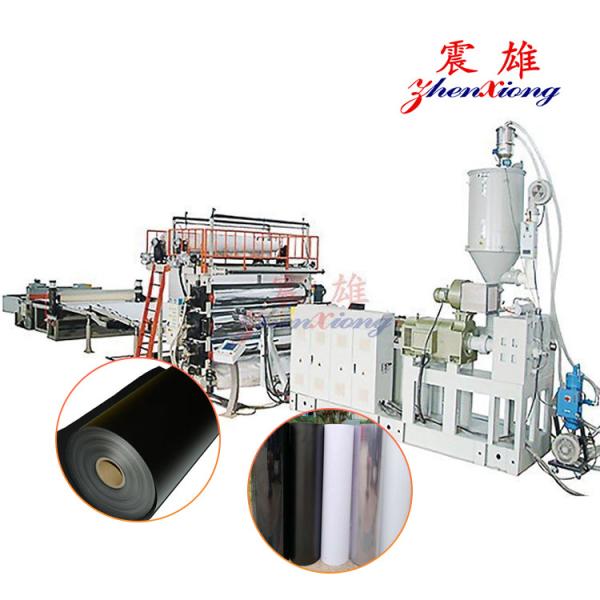

850 - 1000 Kg / H Plastic Board Extrusion Machine PE Waterproof Shee Fast Output

The PE waterproof sheet production line adopts a hanger type mold, and the mold lip is equipped with an oil temperature control system to ensure uniform and consistent discharge.

Core advantage:

●The screw of the PE waterproof sheet production line adopts a BM type belt mixing structure, fully ensuring the plasticization of the material.

●The three roll roller of the PE waterproof sheet production line adopts a specially designed eight channel, four in and four out structure, ensuring uniform and consistent surface temperature of the roller, thereby avoiding warping and deformation caused by different temperatures in the product production process.

●The roller of the PE waterproof sheet production line is controlled by a hydraulic cylinder, ensuring that there is no fluctuation caused by mechanical adjustment of the gap in the product.

●PLC touch screen control for PE waterproof sheet production line.

●The automation level of the PE waterproof sheet production line is high.

●The operation of the PE waterproof sheet production line is simple.

●PE waterproof sheet making machine products are stable.

●The PE waterproof sheet extrusion line has high production efficiency.

PE waterproof sheet production line - Product application scope:

1. Tunnels, air raid shelters, water retaining dams, and artificial lakes.

2. Wastewater treatment plants, landfill plants, power plants, and large oil depots.

3. Expressway foundation, railway, airport runway.

4. Building foundation and garage foundation.

5. Buildings, roofs of large venues, etc.

Production Speed

0.3 - 3 m / min

Max. Board Width

5000mm

Control System

PLC

Extrusion Capacity

850 - 1000 kg / h

Cooling Method

Water Cooling

Main Motor Power

250 kw

Voltage

380V 50Hz

Color

Customizable
