Three Outlet MBBR Filler Profile Extrusion Line Profile Extruder Machine
Three Outlet MBBR Filler Profile Extrusion Line Profile Extruder Machine
Three Outlet MBBR Filler Profile Extrusion Line Profile Extruder Machine
Three Outlet MBBR Filler Profile Extrusion Line Profile Extruder Machine
Three Outlet MBBR Filler Profile Extrusion Line Profile Extruder Machine
Three Outlet MBBR Filler Profile Extrusion Line Profile Extruder Machine
Specifications
Model Number :
EC65/33 One‑outlet Three‑outlet MBBR Filler Production Line
Price :
USD 34,000-36,000/set,EXW
Applicable Material :
HDPE
Delivery Time :
30 work days
Traction Device :
EC20‑110 Double‑claw Traction Machine
Application :
Sewage Waste‑water Treatment
Brand Name :
King Joy
Main Extruder :
EC65/33 Single‑screw Extruder
Payment Terms :
T/T
Cutting Device :
2 Sets Flying‑knife Cutting Machine
Product Name :
EC65/33 One‑outlet Three‑outlet MBBR Filler Production Line
Auxiliary Unit :
Automatic Vacuum Loading System Hopper Dryer
Place of Origin :
China
Mold Specification :
Φ25×4mm 76‑holes
MOQ :
1 set
Description

EC65/33 One‑outlet Three‑outlet MBBR Filler Production Line Profile Extrusion Line

Product Description

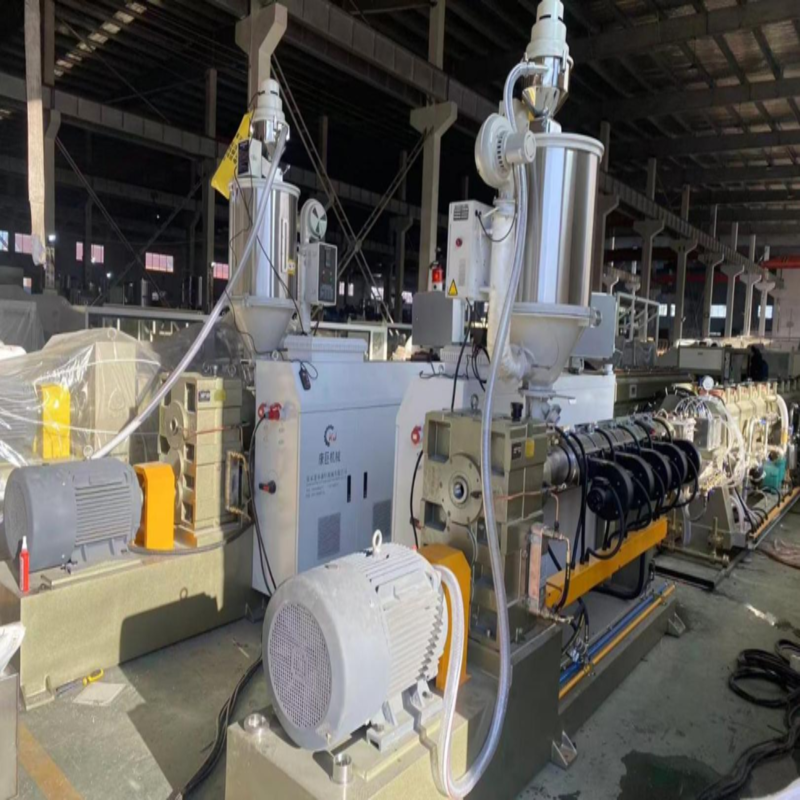

This EC65/33 one‑outlet three‑outlet MBBR filler production line is dedicated to produce MBBR bio‑filter media for waste‑water treatment. Equipped with automatic vacuum loading system, hopper dryer, EC65/33 single‑screw extruder, vacuum setting box, EC20‑110 double‑claw traction machine, 2 sets of flying‑knife cutting machines and Φ25×4mm 76‑hole mold. High output, stable extrusion, uniform dimension of finished MBBR filler. Widely applied in sewage treatment industry. Full‑set equipment supplied, installation and commissioning support is available.

Main Features

  • EC65/33 single‑screw extruder ensures stable plasticizing and high capacity
  • Automatic vacuum loading system realizes automatic raw‑material feeding

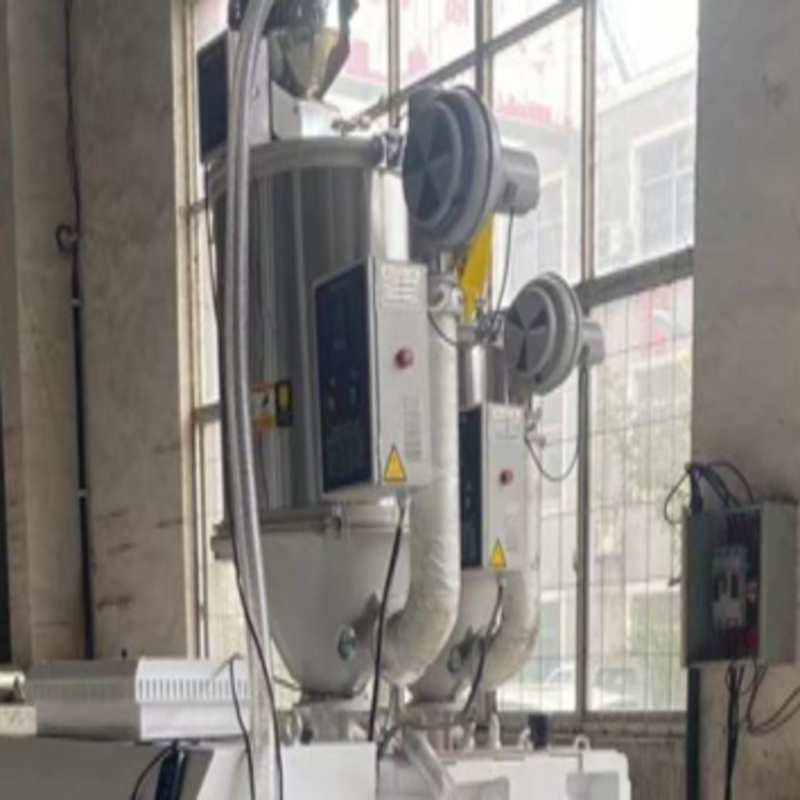

  • Hopper dryer keeps raw material dry for better product quality
  • EC20‑110 double‑claw traction machine provides stable pulling performance
  • Two flying‑knife cutting machines ensure neat cutting for high‑speed production
  • Φ25×4mm 76‑hole special mold for high‑efficiency MBBR filler output
  • Reliable operation, easy maintenance

Technical Parameter

Item Specification
Raw material HDPE

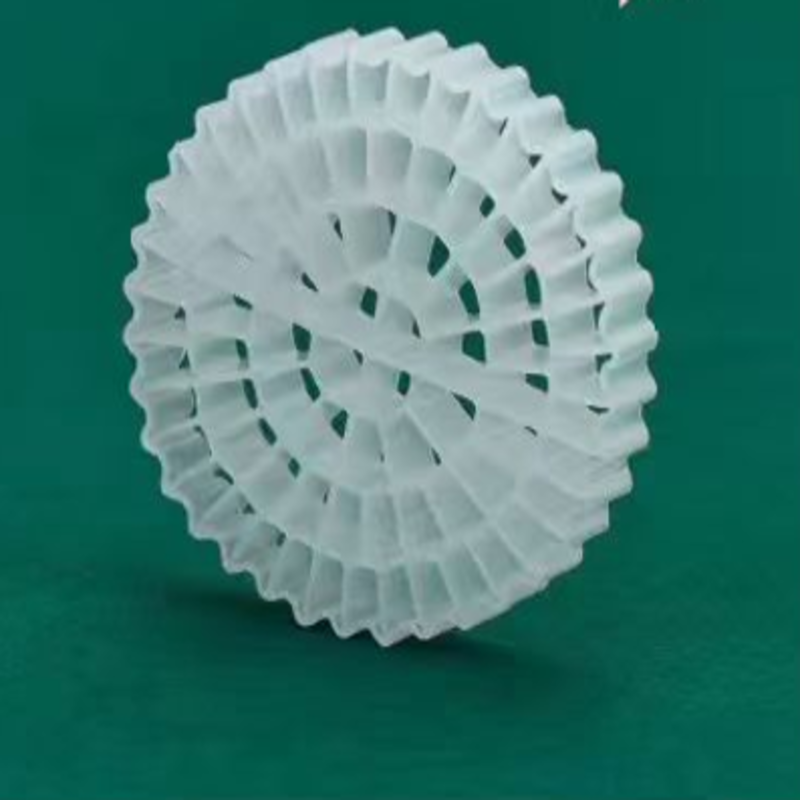

Finished product MBBR bio‑filter media
Extruder type EC65/33 Single‑screw extruder
Mold Spec Φ25×4mm 76‑hole
Application Sewage & waste‑water treatment

Supply Scope

Automatic vacuum loading system ×1 unit,Hopper dryer ×1 unit,EC65/33 single‑screw extruder ×1 unit,Vacuum setting box ×1 unit,EC20‑110 double‑claw traction machine ×1 unit,Flying‑knife cutting machine ×2 units,Mold (Φ25×4mm 76‑holes) ×1 set

FAQ

Q: Can we change to other molds for different MBBR sizes?

A: Yes, different specification molds are optional.

Q: Do you offer installation guidance?

A: Installation and commissioning guidance is available.
