2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
Specifications
Brand Name :
Kechengda
Model Number :
SJ-90 150 180 200
Place of Origin :
Qingdao,Shandong,China
MOQ :
1
Price :
USD30000-500000
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
35 work days
Packaging Details :
wrapping film
Screw No. :
Multi-screw
Control :
PLC
Computerized :
Computerized
Automation :
Automatic
Product Type :
Extrusion Molding Machine
Main Motor :
Siemens
Description

Plastic Sheet/Plate/Floor/ PP/PS/PE/PVC/Pet/ABS Production Line Single Conical Extruder Extrusion Making Machine

Product Description:

PS ABS PP PE HDPE Sheet Production Line Plastic Sheet Extruder Extrusion Machine


This line is specially used for producing PP/PE/PS/ABS single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
Main technical data:

1. Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm

2. Usual Sheet thickness:

0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm

3. Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.

4. T -type die head:
Suitable compression ratio to ensure uniform flow stability.

5. Three-roller calendar:
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

6. Cooling frame:

According to product specifications, configurations with different specifications of the stainless steel cooling roller

7. Edge-cutting devices:

Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

8. Cut off machine:

Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.

NO. Item Unit Quantity
1 Conical Twin Screw Extruder set 1
2 Extrusion Mould, T-die set 1
3 Three roller Calender set 1
4 Roller bracket set 1
5 Haul-off unit set 1
6 Torque winding machine set 1
7 Cutting machine set 1
8 Tipping bracket set 1
9 Mixer 200/500,300/600, 500/1000 set 1

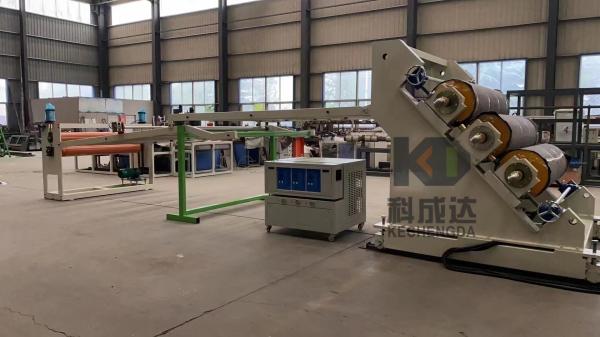

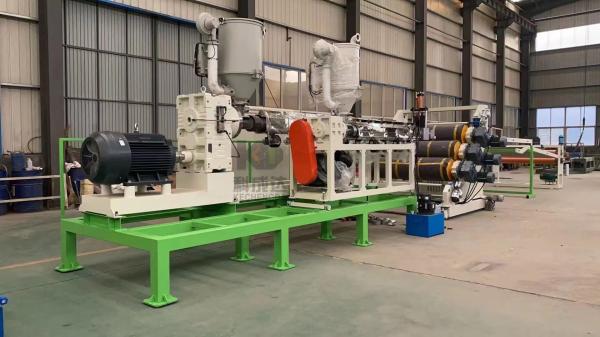

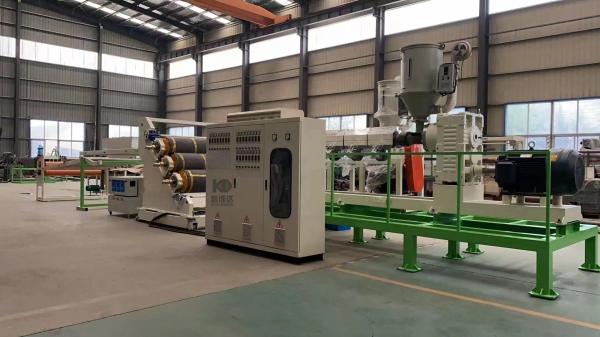

Production line photos

2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line

Send your message to this supplier
Send Now

2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line

Ask Latest Price
Product Detail
Brand Name :
Kechengda
Model Number :
SJ-90 150 180 200
Place of Origin :
Qingdao,Shandong,China
MOQ :
1
Price :
USD30000-500000
Payment Terms :
T/T
Contact Supplier
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line
