UV Decorative Board Equipment/UV Imitation Marble Board Production Line

1.Product Description

Advantages: flat surface, not easy to scratch, convenient for dust removal, pressure resistance, fall resistance, bending resistance, fireproof, waterproof, anti-scratch, sound absorption, noise reduction, no pollution, etc.

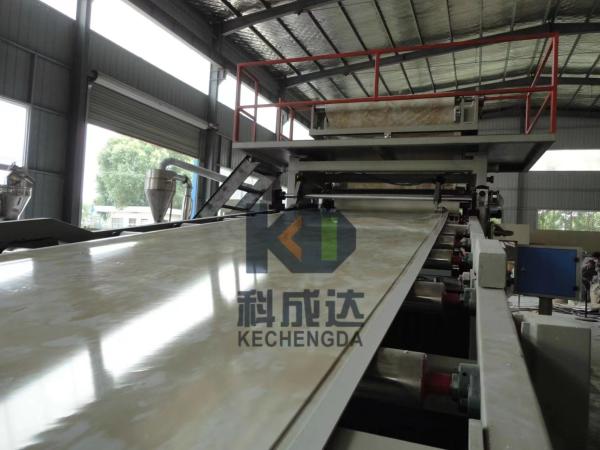

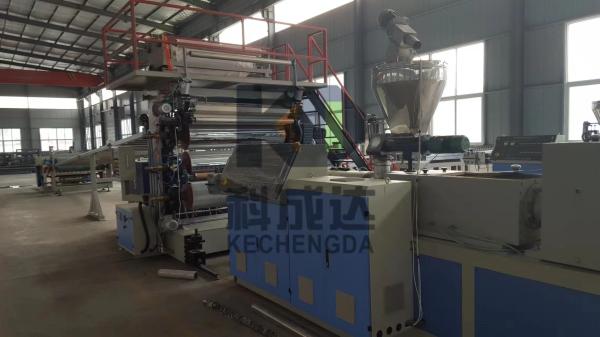

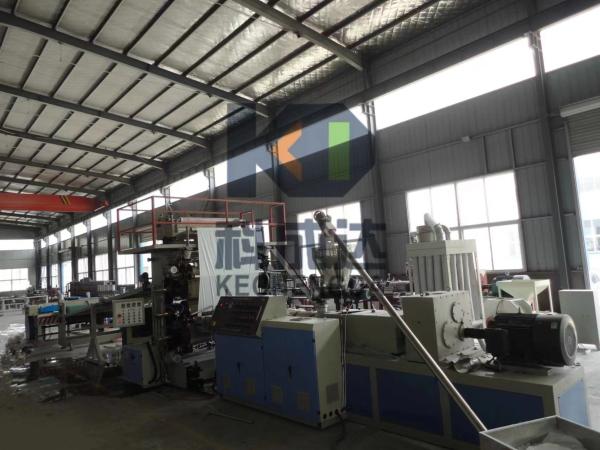

Imitation marble plate machinery and equipment: automatically feed the material into the high-speed mixer to mix, and then automatically feed the material to the SJSZ80/156 or SJSZ92/188 twin-screw extruder, extruded by the imitation marble special plate mold for three-roller setting mold setting and rowing Roller support cooling device, trimming device, tractor, automatic cutting machine, roller conveyor, etc. There are two follow-up treatment processes: one can realize online UV, and the other requires secondary processing

The imitation marble slab machinery has a compact structure and superior performance. The screw and barrel are optimized design and processed by alloy steel, so that the whole machine has the advantages of uniform plasticization, stable extrusion, high output, long life and so on.

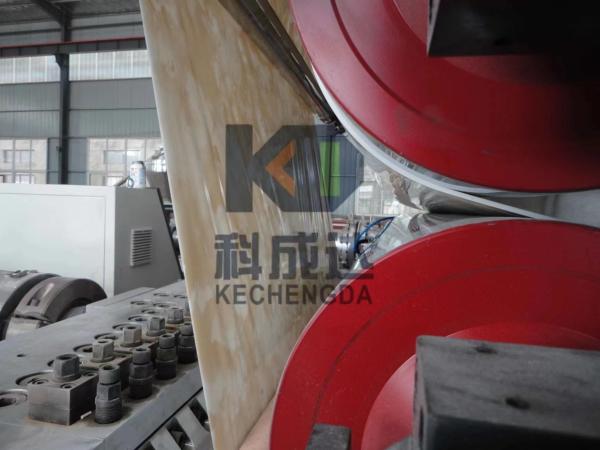

The main barrel is heated by cast aluminum heater, cooled by air, and temperature is controlled by precision electronic control instrument. The precise shaping and calendering device, through its good adjustment function, makes the plate shape excellent. The cutting part adopts a fixed-length cutting device to ensure the length of the plate. The plate extrusion equipment consists of a conical twin-screw extruder, a plate mold, three-roller shaping, traction and other auxiliary parts. It realizes multiple functions and can produce imitation solid wood plates, solid hard PVC plates, free foaming plates, and PVC. Soft coils and so on.
