PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machine
Specifications
Brand Name :
Kechengda
Model Number :
SJ-65 75 90 120 150
Place of Origin :
Qingdao,Shandong,China
MOQ :
1
Price :
usd 25000~100000
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
35 work days
Packaging Details :
wrapping film
Screw Design :
Single-screw
Screw L/D Ratio :
33:1
Condition :
New
Plastic Processed :
PE, HDPE, PPR
Application :
PIPE
Weight :
6 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Construction works
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw, Other
Machinery Test Report :
Provided
Screw Material :
38CrMoALA
Screw diameter (mm) :
65
Screw Speed (rpm) :
78 rpm
Voltage :
3~380V~50/60HZ
Dimension(L*W*H) :
3200*1400*2100 mm
Power (kW) :
55
Keywords :
PE pipe extrusion line
Automatic Grade :
High Automation
Usage :
Water Pipe
Description

PE Pipe Extrusion Line 20-110mm Plastic PE HDPE PPR Pipe Making Machinery/HDPE Production Line/Plastic Extruder

Flow chart of PE pipe extrusion line :

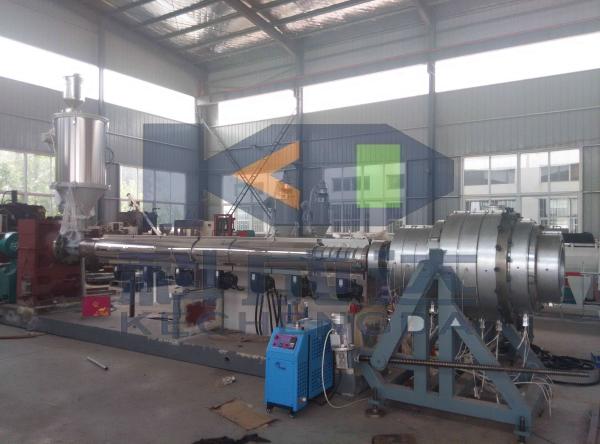

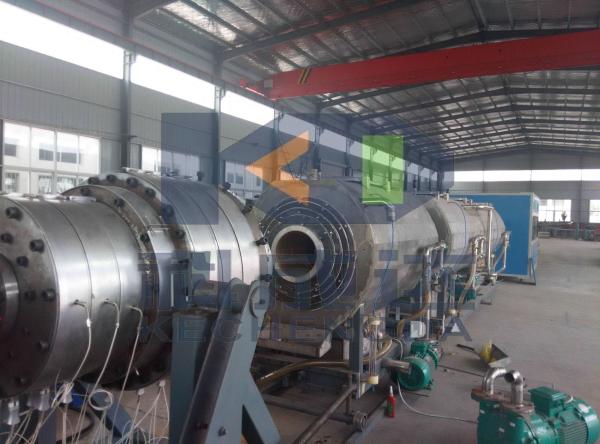

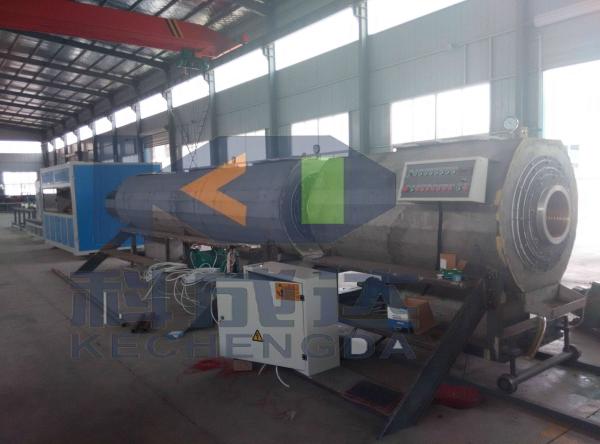

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder
→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)
PE pipe extrusion line application description: This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
Characteristics PE pipe extrusion line : · Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h
· Diameter: from 16 to 800mm
· Adopts reasonable design, absorbing safe producing technology, acquiring CE & ISO certificate
Technical Parameter for PE pipe extrusion line :
Pipe Range (mm)
16-63
20-110
75-160
90-250
110-315
160-450
315-630
500-800
Extruder
65/30
65/33
75/30
75/33
90/33
90/33
120/33
150/33
Motor power (KW)
30/37
55/75
75/90
90/110
132
160
280
335
Capacity (Kg/h)
60-130
100-150
200-300
220-350
300-400
350-450
500-600
700-900
Max. Speed
15m/min
10m/min
8m/min
6m/min
3m/min
1.2m/min
1.0m/min
0.8m/min
