Specifications
Brand Name :
ACC
Model Number :
ACC-65
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD+40000+SET
Payment Terms :
T/T
Supply Ability :
1+45+WORK DAYS
Delivery Time :
5-8 work days
Packaging Details :
film and wood box package
Suitable Materiao :
PE PP PVC TPU
Machineweight :
3000 - 5000 kg
Motor Brand :
Simens Beide
Power :
30-200kw
Pvc Sheet Width :
500-5000mm
Length :
3m to 20m
Electric Control :
PLC
Speed :
10-200 m/min
Screw Design :
Single Screw & Double Screw
Film Thickness :
0.2-3mm
Raw Material :
TPU,EVA,PP,PE
Warranty Time :
one year
Description

I. MAIN PARAMETERS:

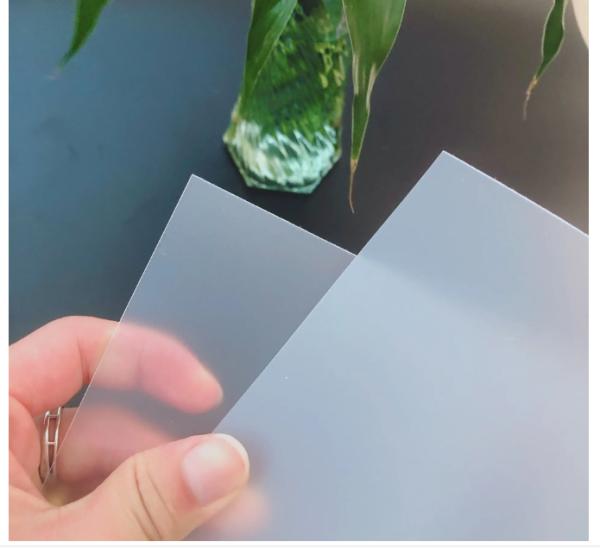

1. Processed Material: PP/PS/PE Granule or powder

2. Max. width of finished product after slitted: 680mm

3. Thickness of the finished product: 0.3-2.0mm

4. Max. output capacity of extruder: around 180-250Kg/h

5. Machine Frame: square steel

II. Configuration and Specification

1. Direct connection way between motor and gear box

2. Main motor: 55KW

3. Main screw: 110mm, L/D: 33:1

4. Aluminum heater

5. Non-stop Fast Screen Changer With Double-sieve

6. The effective width of the die head: 800mm

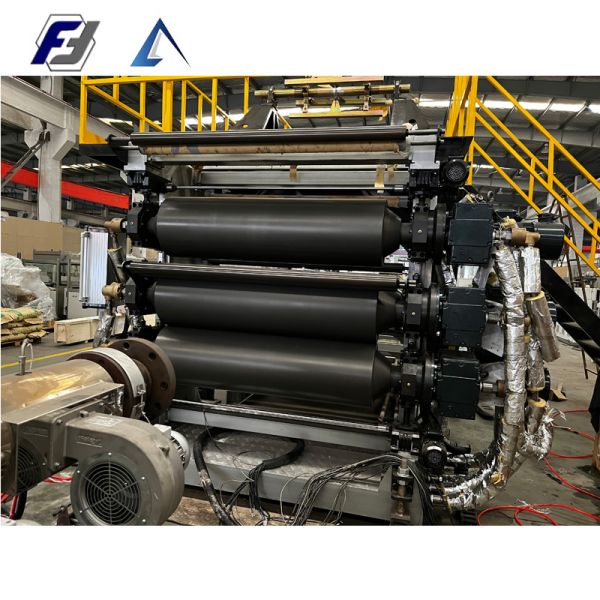

7. Calender Roll Stack

(1) Structure: the three-rollers calender lay on the round with 45° slantways,

(2) Roll number: 3

(3) Diameter of roll: 350mm

(4) Roll length: 780mm

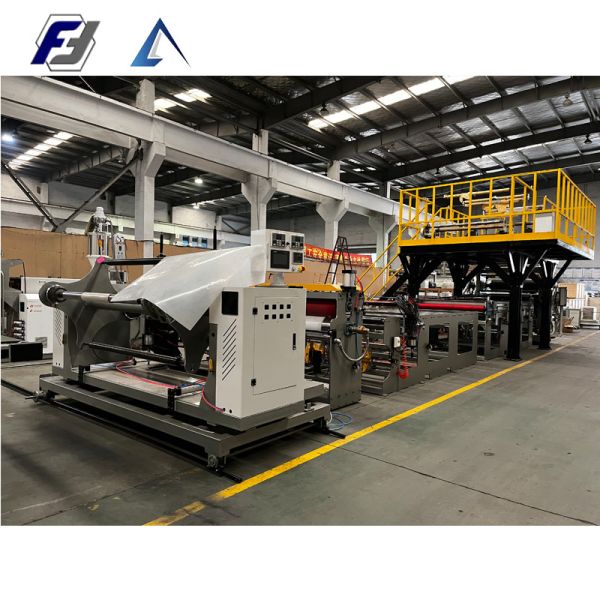

8. Single-shaft Winder 1 set

9. Waste sheet reweinder 1 set

10. Thermostat 2 sets (only for making PS sheet)

11. Electronic Control Cabinet (one set)

Main Technical Parameters:

Model FJL-PC-90-A/B FJL-PC-100-A/B FJL-PC-105-A/B FJL-PC-110-A/B FJL-PC-115-A/B FJL-PC-120-A/B
Raw Material PP,HIPS,PE
Sheet Thickness 0.3-2mm
Layer 1
Capacity 100kg/h 150kg/h 175kg/h 200kg/h 225kg/h 250kg/h
Screw Dia. 90mm 100mm 105mm 110mm 115mm 120mm
L/D Ratio 32:1
Roller Dia. 300mm 320mm 350mm 350mm 400mm 450mm
Main Motor Power 37kw 45kw 45kw 55kw 75kw 90kw
Overall Power 90kw 100kw 110kw 120kw 135kw 160kw
Weight 5.5T 6T 6.5T 7T 7.5T 8T
Power Supply 380V/50HZ/3P
