SJ-80 Optical Clear Sheet Extrusion Line with 150-250 kg/h Output Capacity, Class 10000 Dust-Free Enclosure, and Mirror-Finish Calender Rolls for PMMA and PC Sheets
SJ-80 Optical Clear Sheet Extrusion Line with 150-250 kg/h Output Capacity, Class 10000 Dust-Free Enclosure, and Mirror-Finish Calender Rolls for PMMA and PC Sheets
SJ-80 Optical Clear Sheet Extrusion Line with 150-250 kg/h Output Capacity, Class 10000 Dust-Free Enclosure, and Mirror-Finish Calender Rolls for PMMA and PC Sheets
SJ-80 Optical Clear Sheet Extrusion Line with 150-250 kg/h Output Capacity, Class 10000 Dust-Free Enclosure, and Mirror-Finish Calender Rolls for PMMA and PC Sheets
SJ-80 Optical Clear Sheet Extrusion Line with 150-250 kg/h Output Capacity, Class 10000 Dust-Free Enclosure, and Mirror-Finish Calender Rolls for PMMA and PC Sheets
SJ-80 Optical Clear Sheet Extrusion Line with 150-250 kg/h Output Capacity, Class 10000 Dust-Free Enclosure, and Mirror-Finish Calender Rolls for PMMA and PC Sheets
Specifications
Sheet Thickness :
0.5-6.0mm
Price :
USD 75000-110000 / Set
Screw Type :
Single Screw with Special Coating
Calender Type :
Three Roll Vertical with Mirror Finish
L/D Ratio :
30:1
MOQ :
1 Set
Payment Terms :
T/T, L/C, Western Union
Sheet Width :
Up to 1000mm
Delivery Time :
35-45 working days after deposit
Certification :
ISO 9001:2015, CE, RoHS
Control System :
PLC with Touch Screen HMI
Supply Ability :
10 Sets per Month
Packaging Details :
Cleanroom-grade protective packaging, export plywood case with anti-static film, vacuum-packed optical components
Brand Name :
ACC
Power Supply :
380V 50Hz 3Phase Customizable
Model Number :
SJ-80 Optical
Output Capacity :
150-250 kg/h
Melt Pump :
Precision Gear Melt Pump
Place of Origin :
Jiangsu, China
Screw Diameter :
80mm
Cleanroom Enclosure :
Class 10000 Dust-Free Enclosure
Material :
PC, PMMA, PS (Optical Grade)
Description
SJ-80 PC PMMA Optical Clear Sheet Extrusion Line 150-250kg/h LED Lighting Diffuser Panel Production Machine
SJ-80 PC PMMA Optical Clear Sheet Extrusion Line

The SJ-80 Optical is a specialized extrusion line for producing optical-grade PC and PMMA clear sheets used in LED lighting diffuser panels, display screens, and transparent protective covers. With precision gear melt pump, mirror-finish calender rolls, and Class 10000 dust-free enclosure, it delivers 150-250 kg/h of defect-free optical sheet with superior light transmission and clarity.

Key Features
  • Precision Gear Melt Pump: Positive displacement melt pump eliminates pressure pulsation, ensuring uniform sheet thickness with deviation below +/-0.02mm for optical applications

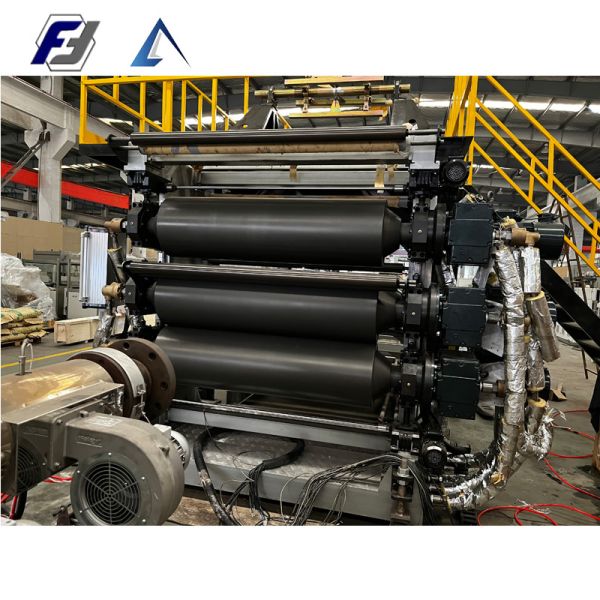

  • Mirror-Finish Calender Rolls: Ultra-polished chrome-plated rolls with surface roughness Ra less than 0.01 micron, producing optically clear sheet without flow marks or surface defects
  • Class 10000 Dust-Free Enclosure: Fully enclosed production zone from die to winder maintains cleanroom conditions, preventing dust and particle contamination critical for optical sheet quality
  • Special Screw Coating: Bimetallic screw with wear-resistant coating prevents metal contamination and ensures material purity for transparent optical applications
  • Precision Temperature Control: Multi-zone PID temperature control with +/-1°C accuracy throughout barrel, die, and calender for consistent optical properties
  • Static Elimination System: Integrated ionizing bars neutralize static charge, preventing dust attraction during sheet handling and winding
Technical Specifications
Screw Type Single Screw with Bimetallic Coating
Screw Diameter 80mm
L/D Ratio 30:1
Output Capacity 150-250 kg/h
Sheet Width Up to 1000mm
Sheet Thickness 0.5-6.0mm
Melt Pump Precision Gear Melt Pump 100cc/rev
Cleanroom Enclosure Class 10000 (ISO 7) Dust-Free Enclosure
Calender Type Three Roll Vertical with Mirror Finish
Control System PLC with Touch Screen HMI
Typical Applications

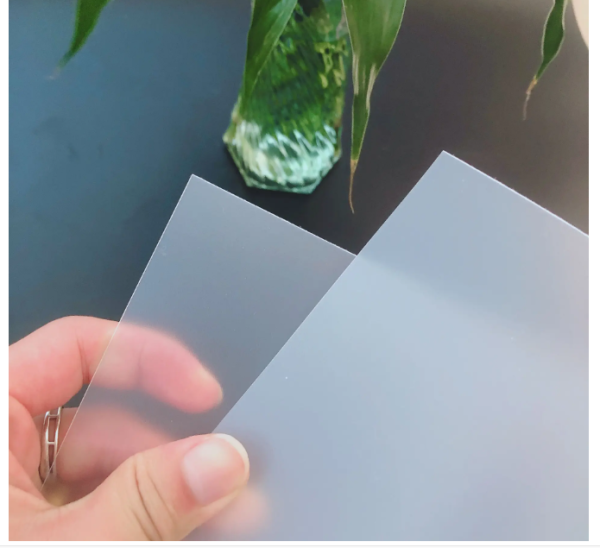

  • LED panel light diffuser sheets (PC/PMMA)
  • LCD backlight diffuser and light guide plates
  • Transparent machine safety guards and viewing windows
  • Display screen protective covers and lenses
  • Greenhouse and skylight glazing panels
  • Automotive interior transparent trim panels
Packaging & Delivery

Cleanroom-grade protective packaging with anti-static film wrapping. Export plywood case with desiccant and shock indicators. Vacuum-packed optical-grade components. Delivery within 35-45 working days after deposit.

Contact us for a technical consultation on your specific optical sheet requirements.
