PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
PVA PHA 3D Printer Filament Extrusion Line 380V 60Hz 3D Filament Production Line
Specifications
Brand Name :
ACC
Model Number :
ACC-45
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
30000$ per set
Payment Terms :
T/T
Supply Ability :
20-30 work days
Delivery Time :
5 work days
Packaging Details :
Standard wood box package
Filament Diameter :
1.75mm/2.85mm/3.0mm
Extruder Type :
Single Screw
Material Compatibility :
PLA/ABS/PETG/TPU/PVA
Weight :
2300kg
Nozzle Diameter :
2.1mm 2.3mm 2.5mm etc.
Heating Zones :
3
Temperature Range :
Up to 400°C
Power Supply :
220V/380V, 50Hz/60Hz
Control System :
PLC + Touch Screen
Extrusion Speed :
Up to 150mm/min
Cooling Method :
Air Cooling
Dimensions :
1700mm x 800mm x 2500mm
Description
High quality 3D printer filament extruding making production line

Product Application

Our 3D filament extruder machine has three types:


1.FLD-25 lab machine (like pictures) capacity:1-2kg/h

2.FLD-35 bigger than the lad machine capacity:5-8kg/h


3.FLD-45 the biggest 3D printing filament extruder machine capacity:15-20kg/h


Filament Size(diameter):1.75mm 2.85mm 3mm.


Product Material:PLA,ABS,PETG,TPU,PVA,PEEK,etc.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

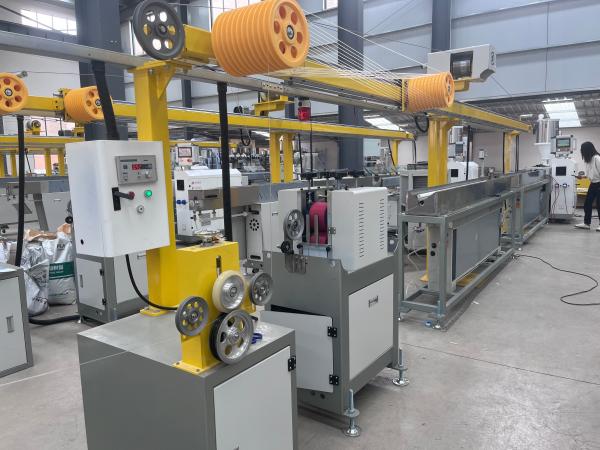

Machine list
Set
1
Dry hopper
1
2

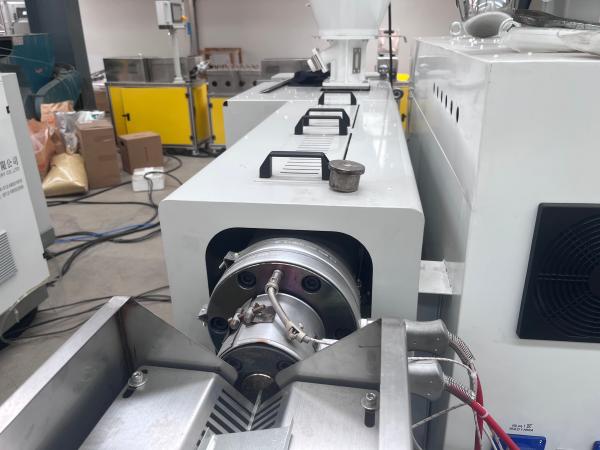

SJ-25/35/45 extruder machine(25mm,33:1 L/D)
1
3
Mould
2
4
Water tank(1hot,1cold)
2
5

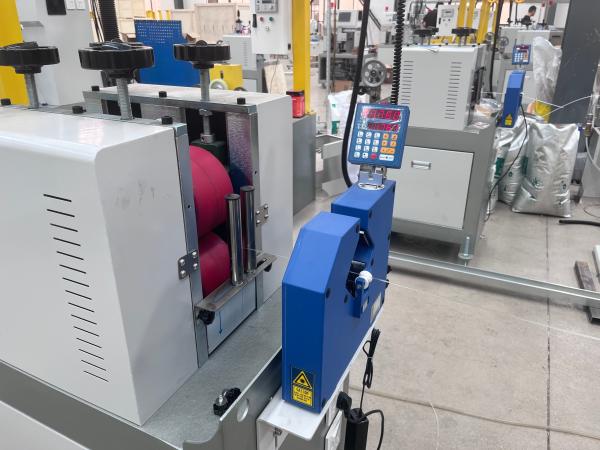

Caliper
1
6
Haul-off
1
7
Storage rack
1
8

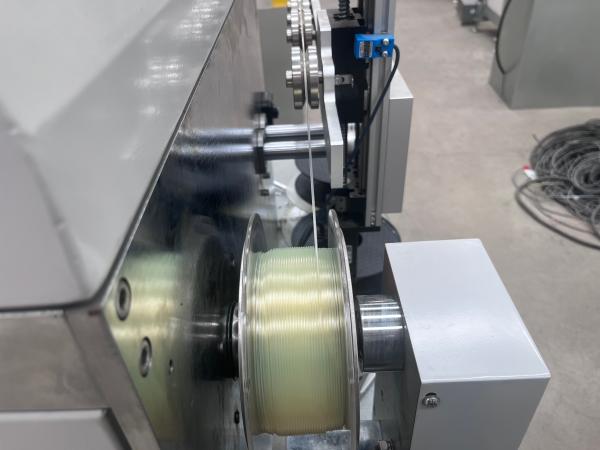

Winding
1
