2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
2.1mm 3D Printer Filament Extrusion Line 380V 50Hz PETG Filament Extruder
Specifications
Brand Name :
ACC machine
Model Number :
ACC-45
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
27000 usd
Payment Terms :
L/C,T/T
Supply Ability :
40-50 work days
Delivery Time :
5-8 work days
Packaging Details :
film and box package
Heating Zones :
4
Extruder Type :
Single Screw
Filament Output :
1-20kg/h
Cooling Zones :
2
Power Supply :
380V/50Hz
Dimensions :
2000mm x 800mm x 1500mm
Nozzle Diameter :
2.1mm
Model :
FLD-45
Diameter :
1.75mm
Material :
PLA petg pctg etc.
Extrusion Temperature :
180-220°C
Max. Speed :
150m/min
Control System :
PLC
Description

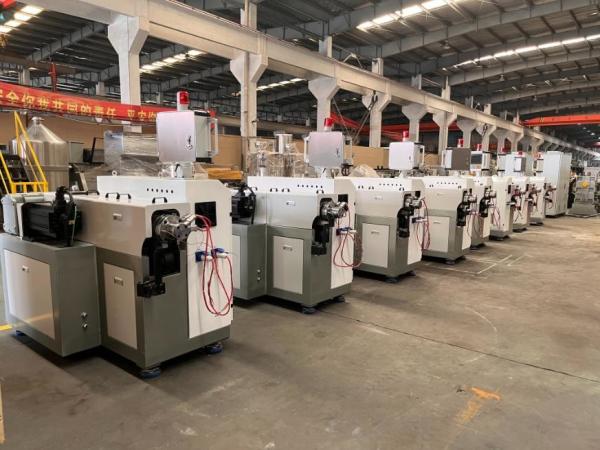

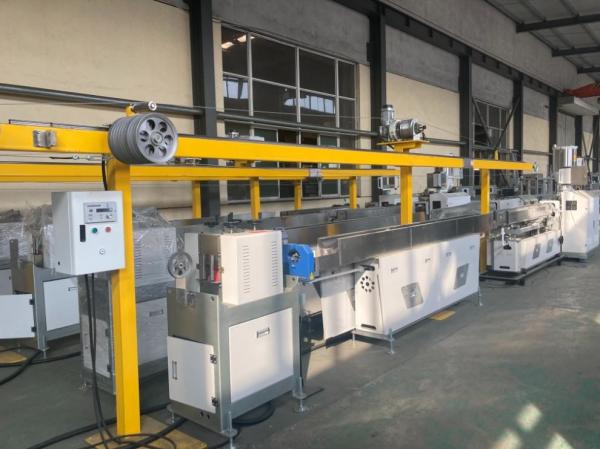

3D printing filament extrusion line
3D printing consumable extrusion line is a series of fist production lines independently developed and produced by our company. Since the beginning of research and development in 2010, the product has undergone dozens of improvements by technicians in the past 10 years, and has now become one of our best-selling products. We now have experience of processing with over 60 kinds of raw material and even matured technique in doing high melting point material such as PEEK, PEI.
We are now offering the typical ACC-25A model for material testing in university research purpose, ACC-35A and ACC-45A for industril scale production purpose. Also we have other models like ACC-35B high class for demonstration with excellent design.
This series of machines has the characteristics of easy in operation, high degree of automation, high product accuracy and high production capacity. Our partners include many well-known companies from all over the world. We
This series of machines can produce various wire rods, covered wire rods, small profiles and other products with slight modifications or addition auxiliary machines.
Machine Specificition:

No.

Machine Part Name

Quantity

1.

Vacuum Feeder(only adopted n 35&45 model)

1set

2

Hopper dryer(only adopted in 35&45 model)

1set

3

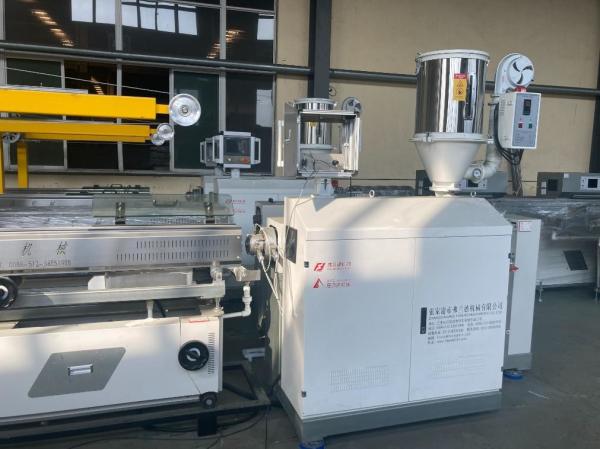

single screw extruder

1set

4

Mould and die (1.75,3mm or customized)

2sets

5

Hot water tank

1set

6

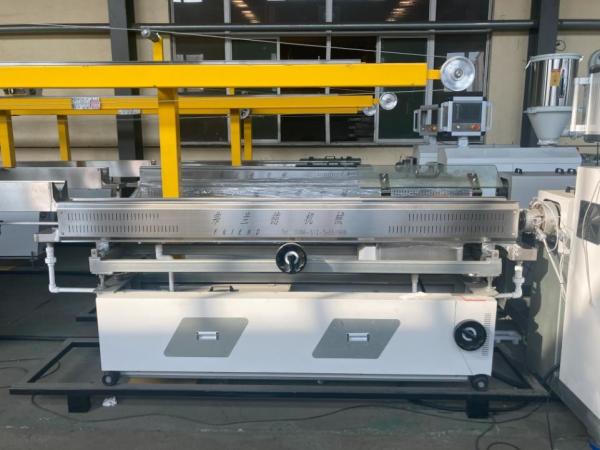

Cooling water tank

1set

7

Laser measuring Device for diameter of filament

1set

8

Synchronization Haul off machine

1set

9.

8 Meters Length Accumulator(only adopted in 35&45 model )

1 set

10

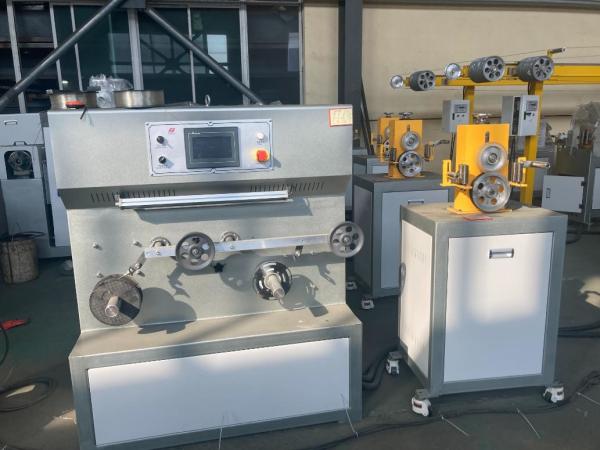

Double or Single(ACC-25)Position Automatic Winding machine

1set
