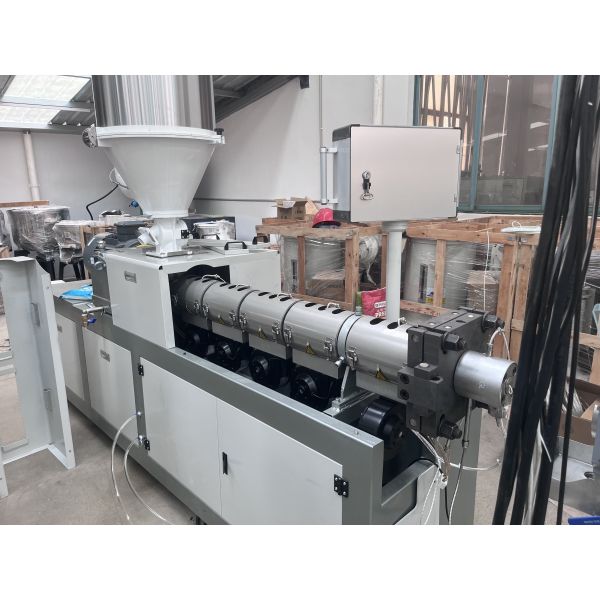

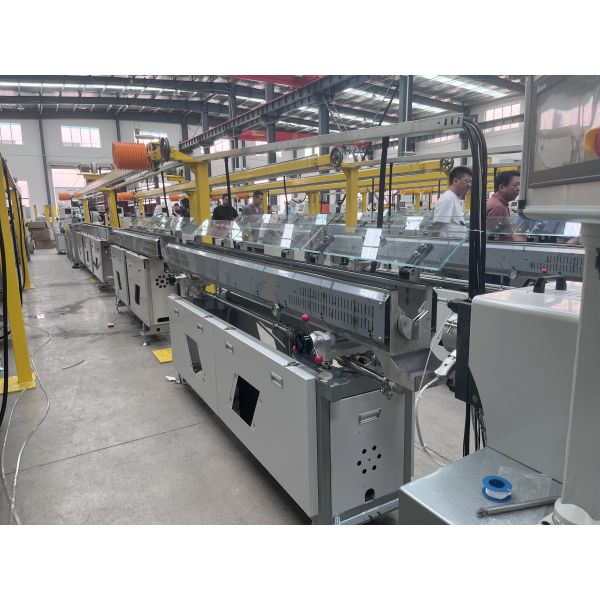

SJ-50 PLC Controlled 3D Printer Filament Extrusion Line with 30-50kg/h Output and Automatic Winding Tension System
SJ-50 PLC Controlled 3D Printer Filament Extrusion Line with 30-50kg/h Output and Automatic Winding Tension System
SJ-50 PLC Controlled 3D Printer Filament Extrusion Line with 30-50kg/h Output and Automatic Winding Tension System
SJ-50 PLC Controlled 3D Printer Filament Extrusion Line with 30-50kg/h Output and Automatic Winding Tension System
Specifications
Control System :
Advanced PLC with 10-inch Touch Screen HMI
Diameter Tolerance :
+/-0.02mm
Power Supply :
380V 50Hz 3Phase Customizable
Screw Type :
Single Screw with Mixing Section
Model Number :
SJ-50 Auto
Payment Terms :
T/T, L/C, Western Union
Brand Name :
ACC
Supply Ability :
20 Sets per Month
Place of Origin :
Jiangsu, China
Packaging Details :
Export-grade plywood case with reinforced steel frame, vacuum-packed precision components, moisture-proof packaging
MOQ :
1 Set
L/D Ratio :
33:1
Winding Type :
Automatic Dual Spool with Tension Control
Price :
USD 28000-42000 / Set
Output Capacity :
30-50 kg/h
Screw Diameter :
50mm
Delivery Time :
25-30 working days after deposit
Automation Features :
Auto Startup, Auto Shutdown, Alarm System, Remote Monitoring
Cooling Method :
Stainless Steel Water Cooling with Chiller
Filament Diameter Range :
1.75mm / 2.85mm / 3.00mm
Certification :
ISO 9001:2015, CE
Description
SJ-50 Automatic PLC Controlled 3D Printer Filament Extrusion Line 30-50kg/h Touch Screen Auto Winding Tension System
SJ-50 Automatic PLC Controlled 3D Printer Filament Extrusion Line

The SJ-50 is a fully automatic PLC controlled 3D printer filament extrusion line engineered for smart factory integration. With a 10-inch color touch screen HMI, automatic winding tension system, and comprehensive production monitoring, it delivers 30-50 kg/h output with precision diameter control while minimizing operator intervention.

Key Features
  • Advanced PLC Automation: Full production cycle automation including auto startup, operating, and shutdown sequences with alarm and fault diagnostic system
  • 10-inch Touch Screen HMI: Intuitive graphical interface displays real-time production data, temperature curves, diameter trends, and historical performance logs
  • Automatic Winding Tension System: Closed-loop tension control with laser diameter feedback automatically adjusts winding speed for consistent, tangle-free spools
  • Smart Factory Ready: Ethernet and RS485 communication ports enable remote monitoring, production data export, and integration with factory MES/ERP systems
  • Mixing Section Screw: Specially designed single screw with Maddock mixing section ensures homogeneous melt and uniform color dispersion without masterbatch striping
  • Water Chiller Integration: Dedicated industrial chiller maintains precise cooling water temperature for consistent filament roundness and dimensional stability
Technical Specifications
Screw Type Single Screw with Maddock Mixing Section
Screw Diameter 50mm
L/D Ratio 33:1
Output Capacity 30-50 kg/h
Filament Diameter Range 1.75mm / 2.85mm / 3.00mm
Diameter Tolerance +/-0.02mm
Cooling Method Stainless Steel Water Cooling with Chiller
Control System Advanced PLC with 10-inch Touch Screen HMI
Winding Type Automatic Dual Spool with Tension Control
Power Supply 380V 50Hz 3Phase (Customizable)
Automation Capabilities
  • Auto startup with programmed heating sequence and stabilization monitoring
  • Real-time diameter feedback loop with automatic extruder and puller speed adjustment
  • Automatic spool changeover for continuous production without operator intervention
  • Comprehensive alarm system with SMS/email notification for temperature, diameter, and tension anomalies
  • Production data logging with CSV export for quality traceability and batch tracking
  • Remote monitoring via Ethernet supporting Modbus TCP and OPC UA protocols
Packaging & Delivery

Export-grade plywood case with reinforced steel frame for heavy machinery. All precision components vacuum-packed with moisture-proof packaging. Delivery within 25-30 working days after deposit confirmation.

Contact us for a smart factory integration consultation and custom automation configuration.
