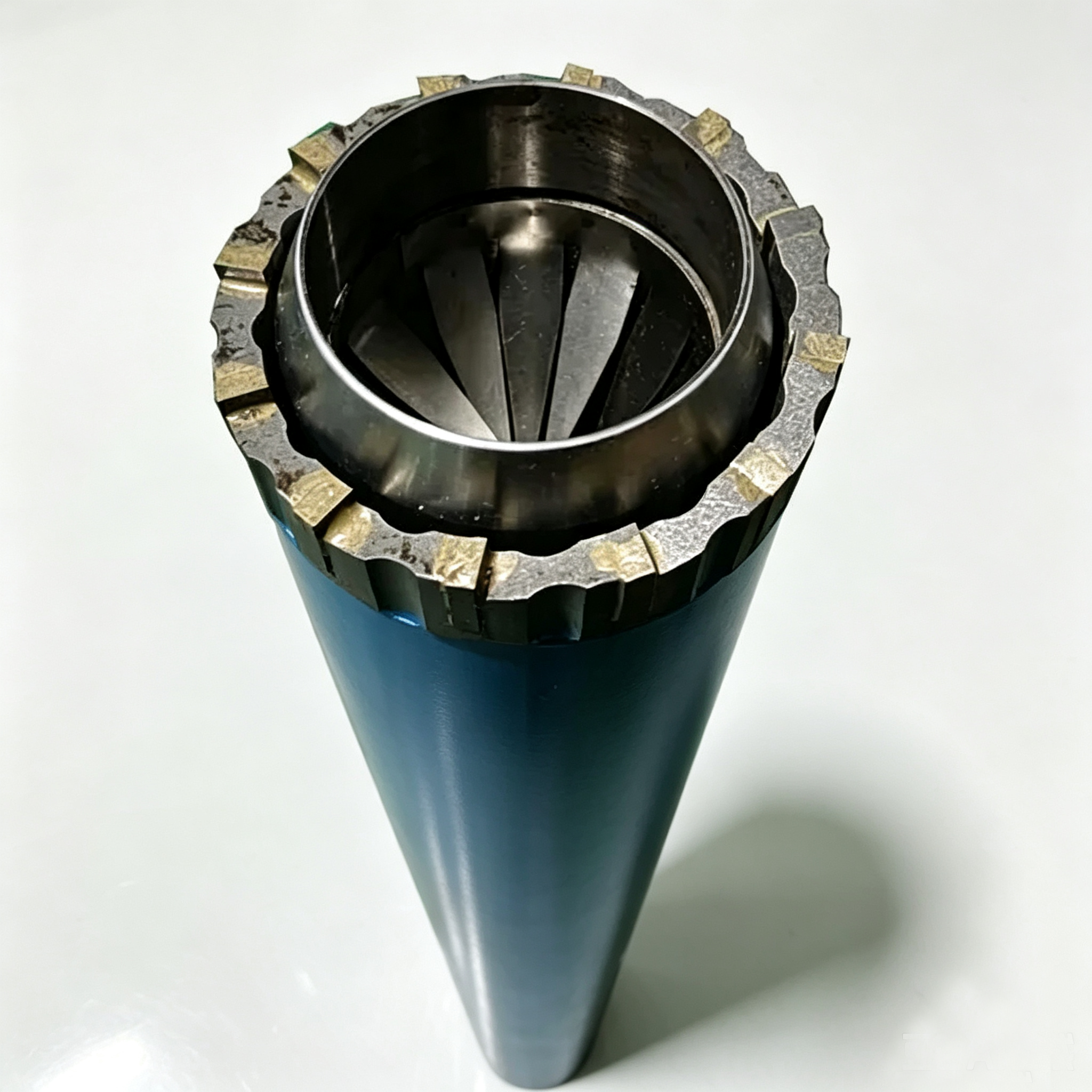

T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
T6-101 Triple Tube Core Barrel with Plastic Liner for Surface Mining and Geotechnical Drilling
Specifications
Model Number :
mazier 86 101 116 131 146
Packaging Details :
Polywooden Box
Delivery Time :
5 ~ 8 working days
Brand Name :
ROSCHEN
MOQ :
5 pcs
Certification :
ISO
Place of Origin :
CHINA
Description

T6-101 Triple Tube Core Barrels with Plastic Liner


T6 Series Double Tube/Triple Tube Core Barrels

These are a continuation of the T2 series, but of a sturdier design and available in larger diameters, 76, 86, 101, 116. 131 and 146mm. They are applied in surface mining and geotechnical drilling.

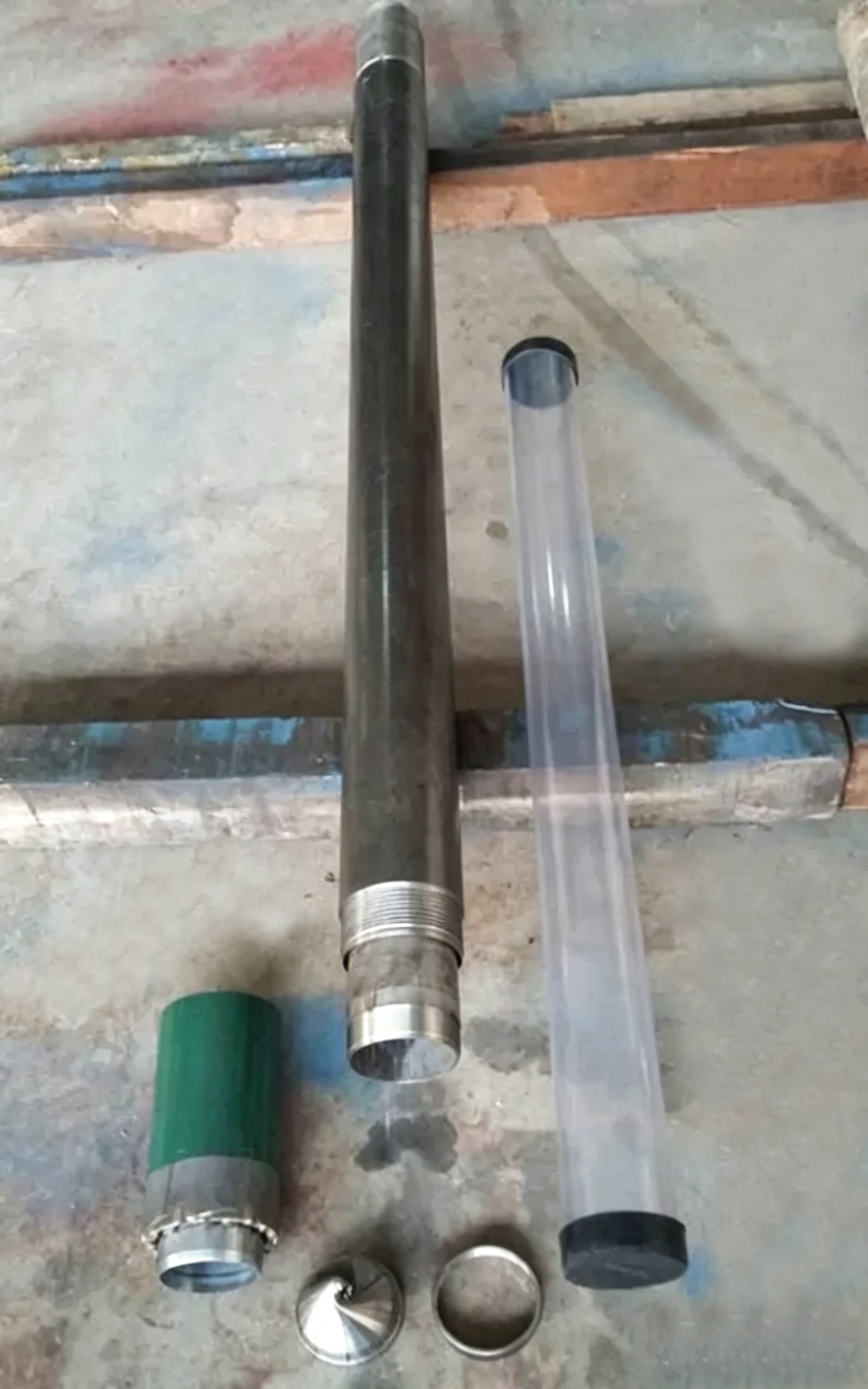

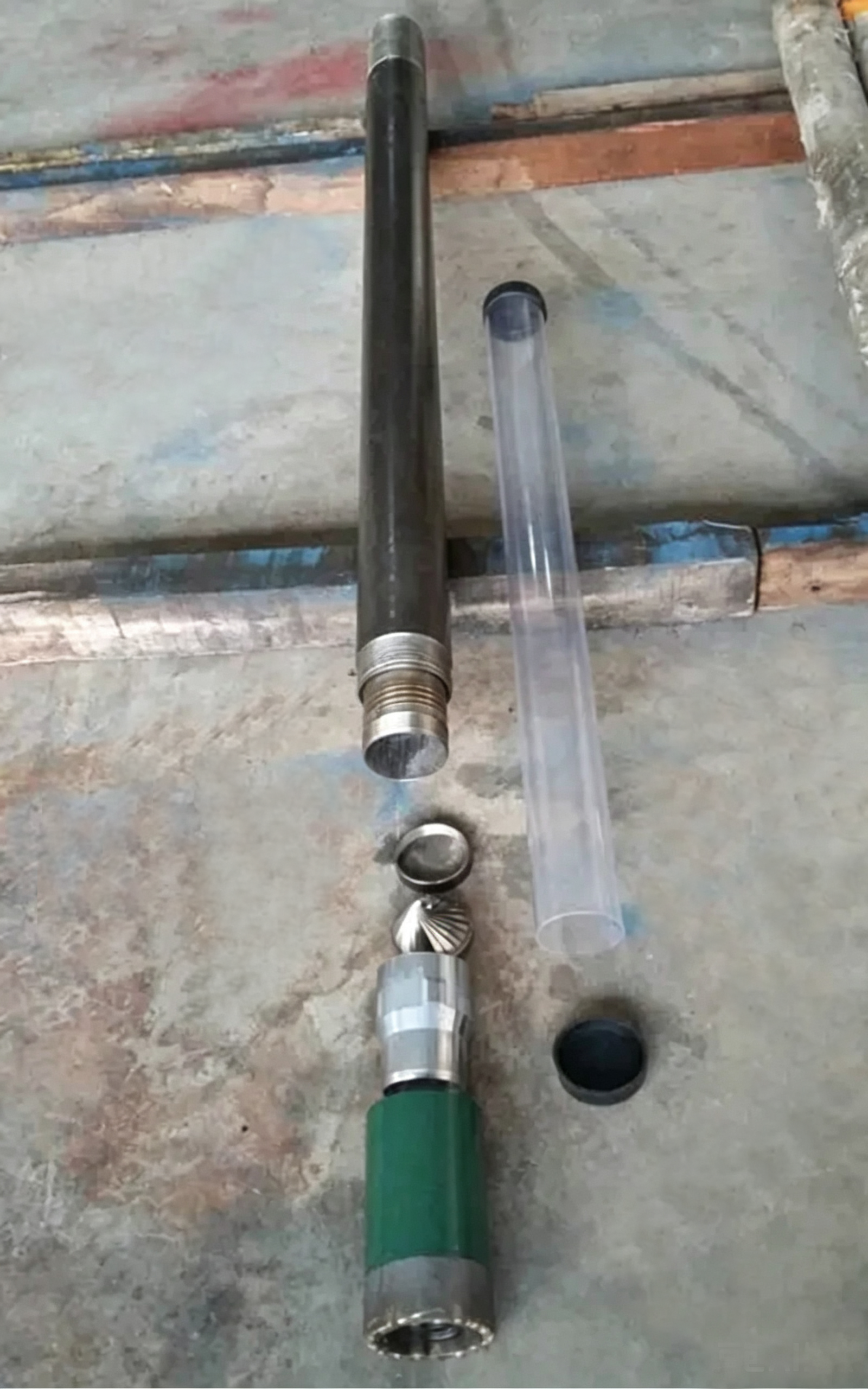

Coreliners are rigid, transparent PVC tubes with a wall thickness of approximately 1 mm, that fit snugly inside the core barrel inner tube.

Coreliners can be supplied to fit most types and sizes of core barrel - metric, DCDMA and wireline. It is normally supplied in standard 5-10ft lengths, with or without plastic end caps.

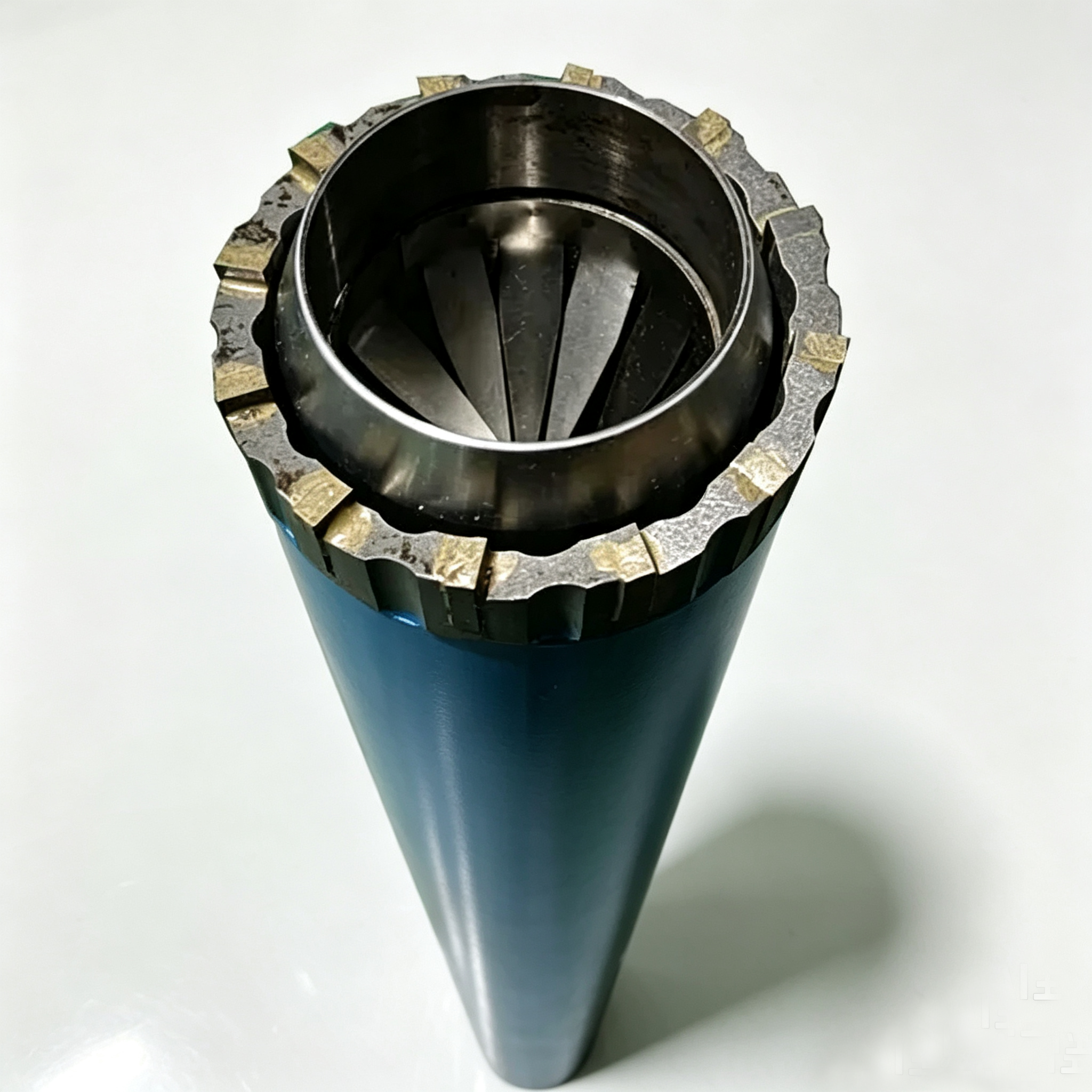

To use the coreliner system a modified Core Bit and Core lifter is required with reduced internal diamete. This is to ensure that there is adequate clearance for the core to fit into the plastic coreliner tube. Such "coreliner set" bits and core lifters are available on request.

Size

Size: T2-76, T2-86, T2-101, T6-76, T6-86, T6-101, T6-116, T6-131

Size Hole(mm) Core(mm) Head Thread
T2 Series Double Tube Core Barrels
T2-76 76 62 As per need
T2-86 86 72 As per need
T2-101 101 83.6 As per need
T6 Series Double Tube Core Barrels
T6-76 76 57 As per need
T6-86 86 67 As per need
T6-101 101 79 As per need
T6-116 116 93 As per need
T6-131 131 108 As per need
