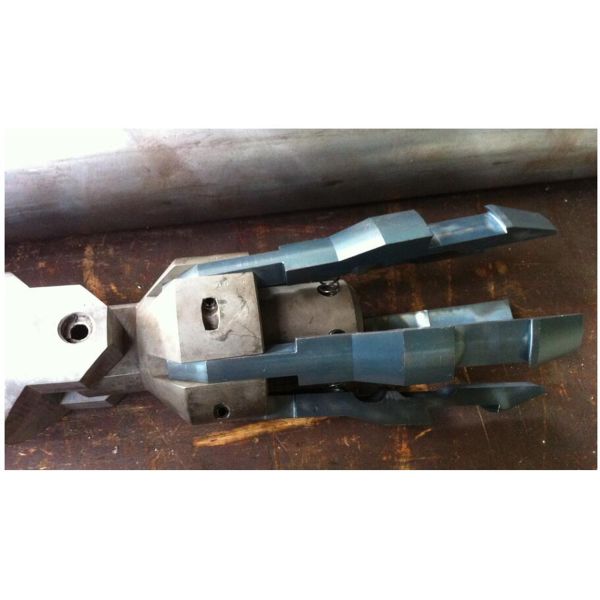

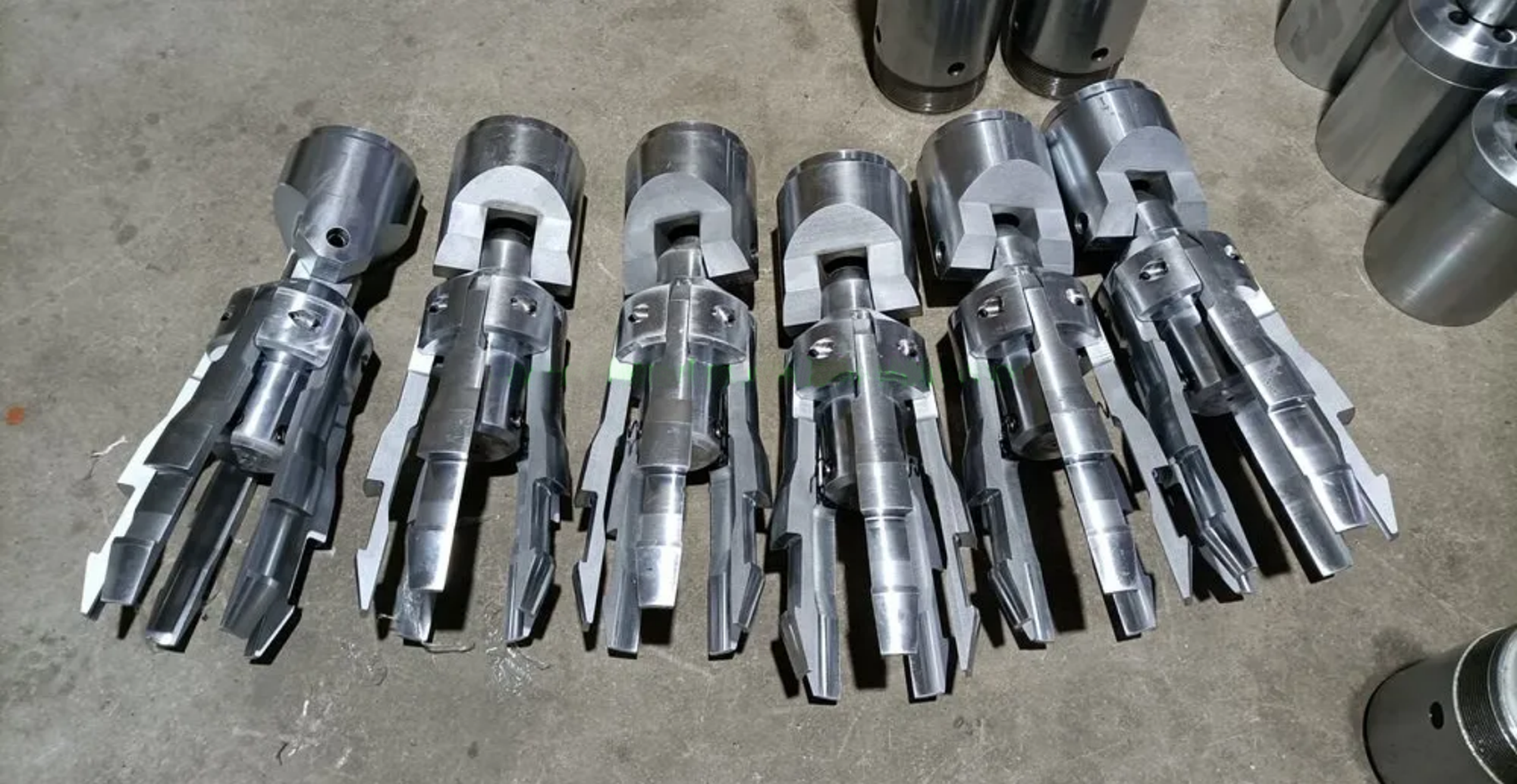

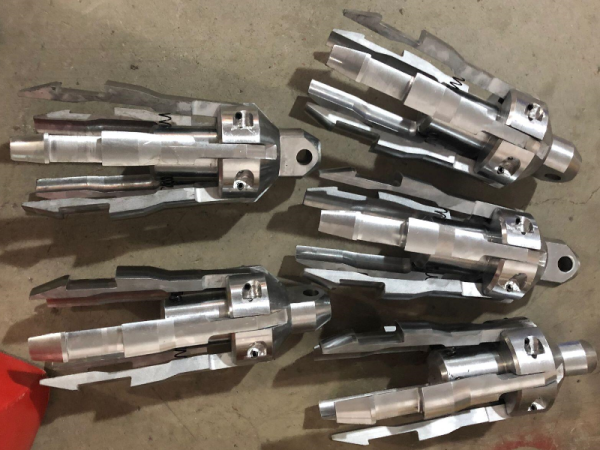

Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
Specifications
Model Number :
CSK-146, CSK-176
Brand Name :
ROSCHEN
Price :
Negotiate
Packaging Details :
Polywooden Box
Certification :
ISO
Supply Ability :
1000 set
MOQ :
1 pcs
Description

Sk6l 146/ Csk 146 Wireline Core Barrel Overshots

Description

This system is utmost suitable for continuous sampling operations at deeper levels, since this technology allows taking a ground sample without having to dismantle the rods. This allows faster operations turnaround time than with a Dual Tube system.

A heavy-duty wireline core barrel enabling 102 mm (4″) diameter cores to be taken in a simple and cost-effective manner. It is designed specifically for air-flush, but foam, polymer and water flush can also be used.

The core barrel can be used with or without plastic coreliner tubes with the same core lifter and bit setting. The barrel accepts the Craelius SK6L / Geobor S type core bit, or our own equivalent, with a set O.D. of 146 mm and set I.D. of 102 mm. The barrel is rotated with either SK6L 140 mm drill rods or by using good quality PW casing as the drill rod.

The core barrel head is attached directly onto the inner tube and consists of three main parts: the latch assembly, which locks into the locking coupling of the outer tube, the bearing housing, and the inner tube bung. The inner tube bung incorporates a series of "Belleville" springs to allow the core to be broken easily when pulling back on the inner tube, and a float valve that allows the inner tube to be dropped into a wet hole and to control the rate of descent.

Size

Size Hole (mm) Core (mm)
SK6L Core Barrels 146 102

Sk6l 146/ Csk 146 Wireline Core Barrel Overshots

Sk6l 146/ Csk 146 Wireline Core Barrel Overshots
