Specifications
Battery Type :
LiFePO4, LiFePO4
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong
System Voltage :
400V
Output Power Range :
5-10kW
Dimension (L*W*H) :
505*860*230mm
Weight :
124kg
System Type :
Floor-mounted
Type :
SPLIT
Communication Port :
CAN, RS-232, RS485
Protection Class :
IP65
Grid connection :
Hybrid grid
Product name :
HV Home Energy Storage Battery System
Module Nominal Voltage :
400V
Module Capacity :
314Ah
System Nominal Voltage :
400V
System Operating Voltage :
345~455V
System Energy :
16.07~128.56
IP Rating of Enclosure :
IP65
Cycle Life :
25±2°C, 0.5C/0.5C, EOL70%≥6000
Certification :
CE/IEC62619/ MSDS/ UN38.3
MOQ :
1
Price :
AED 7,108.25-8,233.76
Description
Product descriptions from the supplier

400V DC-DC Direct Boost: Simplifies design, boosts efficiency, and lowers system cost.

ENP51314-HV DC Boost: Key Advantages for Large Projects

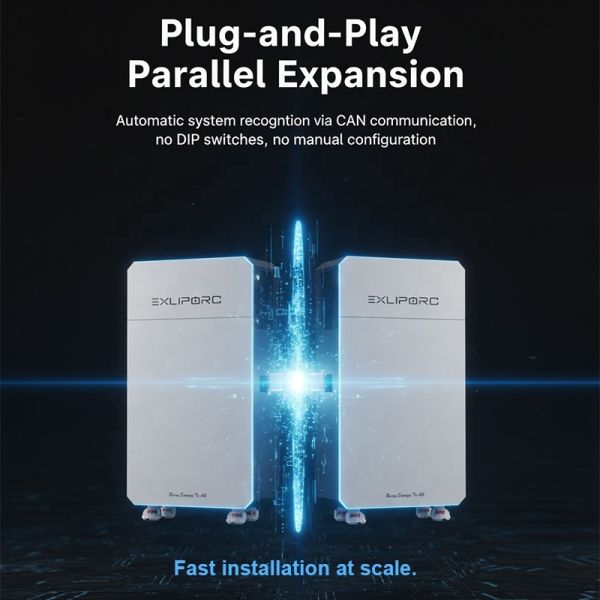

Plug-and-Play Expansion: Auto-ID via CAN enables easy scaling from 16kWh to 256kWh.

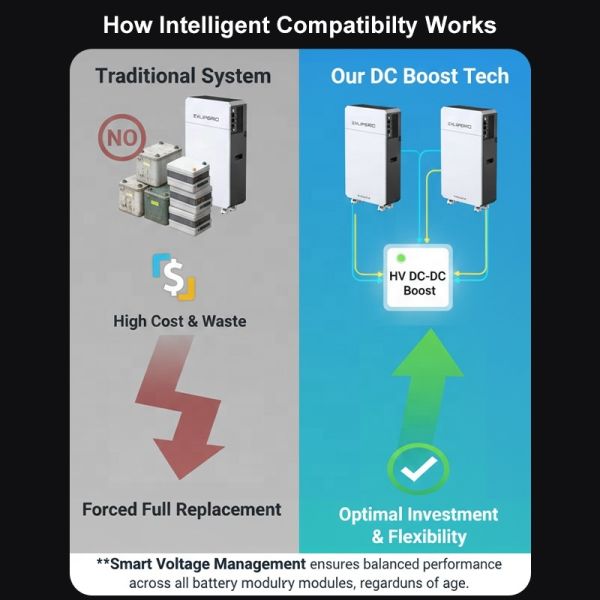

Seamless Battery Mixing: New and old units work together, protecting investment.

No Parallel "Barrel Effect": Advanced control prevents weakest-module limitations.

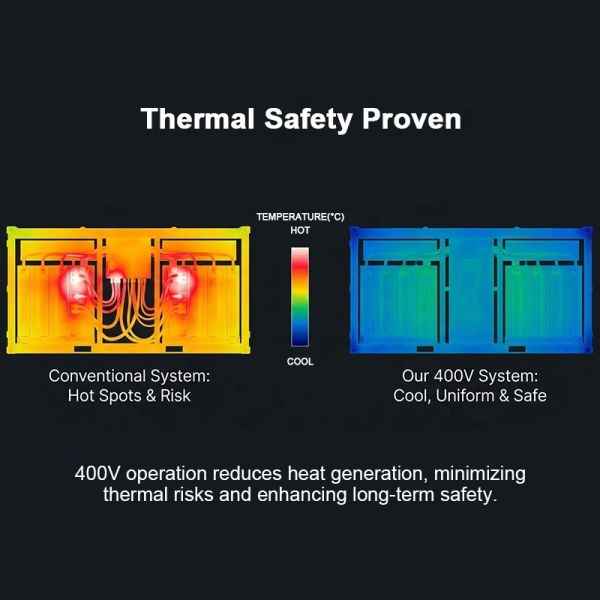

High-Voltage Safety: 400V operation reduces current, heat, and losses.

Intelligent BMS: Active thermal and power management enhance lifespan.

Robust for Harsh Use: IP65 rating, -20°C to 55°C operating range.

High Energy Density: Large cells & 90% DoD deliver maximum usable energy.

Proven Reliability: Ultra-low failure rate and unit-replacement policy.

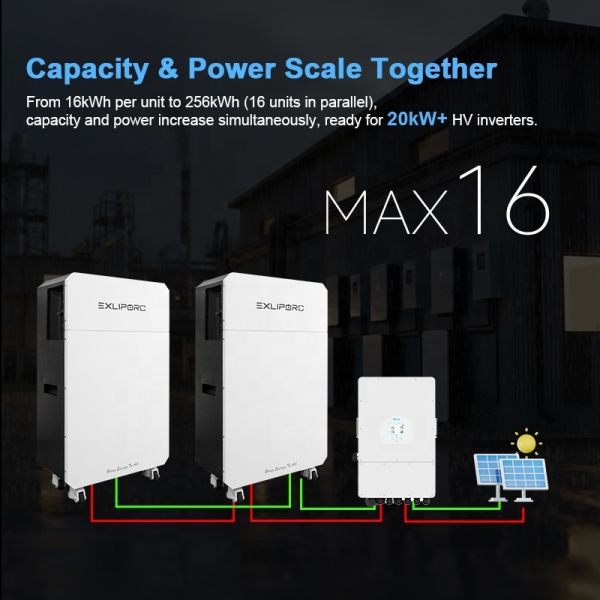

Scalable Power: Capacity and power scale together for high-power inverters.

Compliant with CE, IEC62619, UN38.3.

Summary: A scalable, high-voltage platform for large projects --- easy to deploy, safe, flexible, and optimized for long-term ROI.
