ENP51314-HV DC Boost High-Voltage Energy Storage System | 400V LiFePO4 Battery | 16.07kWh Module, Scalable to 128.56kWh
ENP51314-HV DC Boost High-Voltage Energy Storage System | 400V LiFePO4 Battery | 16.07kWh Module, Scalable to 128.56kWh
ENP51314-HV DC Boost High-Voltage Energy Storage System | 400V LiFePO4 Battery | 16.07kWh Module, Scalable to 128.56kWh
ENP51314-HV DC Boost High-Voltage Energy Storage System | 400V LiFePO4 Battery | 16.07kWh Module, Scalable to 128.56kWh
Specifications
MOQ :
1 piece
Brand Name :
EXLIPORC
Model Number :
ENP51314-HV DC Boost
Certification :
CE/IEC62619/MSDS/UN38.3
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cell Chemistry :
Lithium Iron Phosphate (LiFePO4)
Module Energy / Capacity :
16.07 kWh / 314 Ah
System Nominal Voltage :
400V DC
Scalable Capacity Range :
16.07 kWh to 128.56 kWh
Peak Conversion Efficiency :
Up to 98%
Cycle Life :
≥6,000 cycles (to 70% capacity, 25°C, 0.5C)
Warranty :
10 Years
Enclosure Rating :
IP65
Operating Temperature :
Charge: -10°C to 50°C; Discharge: -20°C to 55°C
Communication :
CAN2.0 & RS485
Certifications :
CE, IEC 62619, UN38.3
Description
ENP51314-HV DC Boost High-Voltage Energy Storage System | 400V LiFePO4 Battery | 16.07kWh Module, Scalable to 128.56kWh

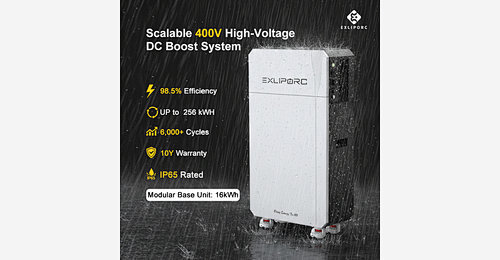

ENP51314-HV DC Boost Energy Storage System

Elevate Your Energy Projects with the Advanced 400V DC Boost Energy Storage System. This revolutionary high-voltage energy storage system utilizes a true 400V DC boost architecture, eliminating the complexities and inefficiencies of traditional series-connected battery strings. Designed for scalability, reliability, and superior return on investment, it is the intelligent core of modern solar plus storage and backup power solutions.

  • Unmatched Efficiency & Performance: Maximize your power yield with up to 98% DC-DC conversion efficiency.
  • Effortless Scalability: Expand from 16.07 kWh up to 128.56 kWh by connecting up to 8 modules in parallel.
  • Engineered for Longevity & Trust: Premium LiFePO4 cells with 6,000+ cycles and a 10-year warranty.
  • Plug-and-Play Installation: Auto-ID functionality simplifies deployment with intelligent BMS communication.
  • Superior Safety & Rugged Reliability: IP65-rated enclosure for operation in demanding environments (-20°C to 55°C discharge).
Ideal Applications: Large-scale Commercial & Industrial (C&I) Solar Energy Storage, Microgrids and Off-Grid Power Systems, Critical Backup Power and UPS Applications, Peak Shaving and Load Management.

Product Attributes

Brand Not Specified
Origin Not Specified
Material Lithium Iron Phosphate (LiFePO4)
Color Not Specified
FOB Unit piece
Product MOQ 1 piece
FOB Price 0
Packaging Delivery 10 Days

Technical Specifications

ParameterDetails
Cell ChemistryLithium Iron Phosphate (LiFePO4)
Module Energy / Capacity16.07 kWh / 314 Ah
System Nominal Voltage400V DC
Scalable Capacity Range16.07 kWh to 128.56 kWh
Peak Conversion EfficiencyUp to 98%
Cycle Life≥6,000 cycles (to 70% capacity, 25°C, 0.5C)
Warranty10 Years
Enclosure RatingIP65
Operating TemperatureCharge: -10°C to 50°C; Discharge: -20°C to 55°C
CommunicationCAN2.0 & RS485
CertificationsCE, IEC 62619, UN38.3
