High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
Specifications
Battery Type :
LiFePO4, LiFePO4
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong
System Voltage :
400V
Output Power Range :
5-10kW(6.71-13.41hp)
Dimension (L*W*H) :
505*860*230mm(19.88*33.86*9.06in)
Weight :
124kg(273.37lb)
System Type :
Floor-mounted
Type :
SPLIT
Communication Port :
CAN, RS-232, RS485
Protection Class :
IP65
Grid connection :
Hybrid grid
Product name :
HV Energy Storage Battery System
Module Nominal Voltage :
400V
Module Capacity :
314Ah
System Nominal Voltage :
400V
System Operating Voltage :
345~455V
System Energy :
16.07~128.56
IP Rating of Enclosure :
IP65
Cycle Life :
25±2°C, 0.5C/0.5C, EOL70%≥6000
Certification :
CE/IEC62619/ MSDS/ UN38.3
MOQ :
1
Price :
$1,900-2,152
Description
High Voltage Energy Storage System 16kWh LiFePO4 Battery Expandable to 256kWh for Solar Home Storage
Product Overview
A scalable, high-voltage platform for large projects — easy to deploy, safe, flexible, and optimized for long-term ROI.
Key Features & Advantages
  • 400V DC-DC Direct Boost: Simplifies design, boosts efficiency, and lowers system cost

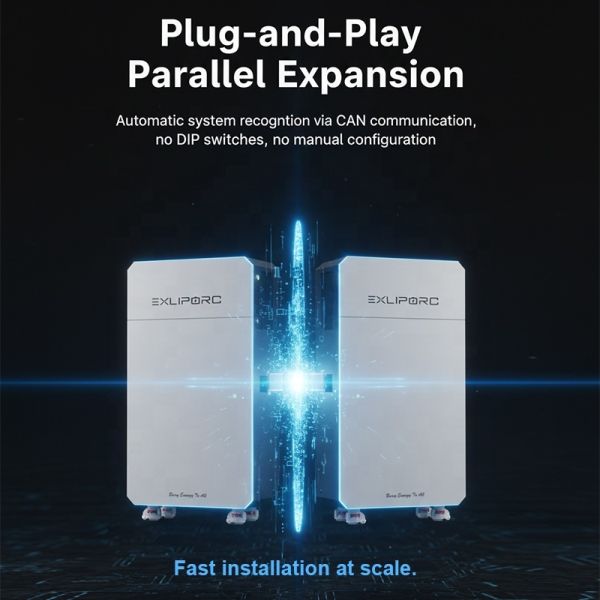

  • Plug-and-Play Expansion: Auto-ID via CAN enables easy scaling from 16kWh to 128kWh
  • Seamless Battery Mixing: New and old units work together, protecting investment
  • No Parallel "Barrel Effect": Advanced control prevents weakest-module limitations

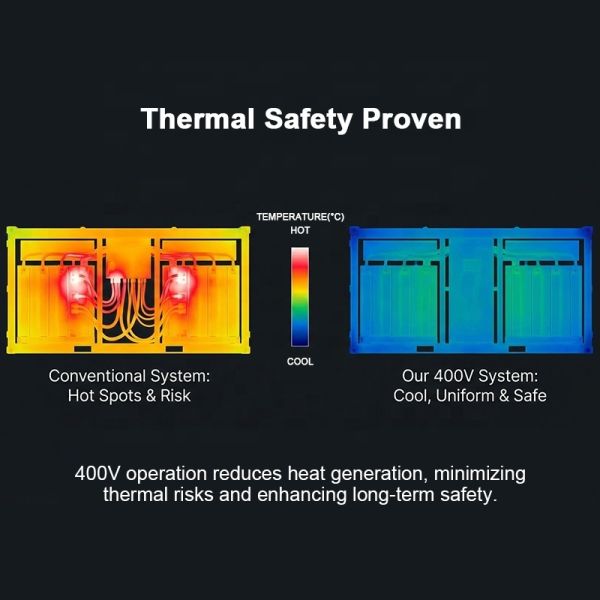

  • High-Voltage Safety: 400V operation reduces current, heat, and losses
  • Intelligent BMS: Active thermal and power management enhance lifespan
  • Robust for Harsh Use: IP65 rating, -20°C to 55°C operating range
  • High Energy Density: Large cells & 90% DoD deliver maximum usable energy
  • Proven Reliability: Ultra-low failure rate and unit-replacement policy

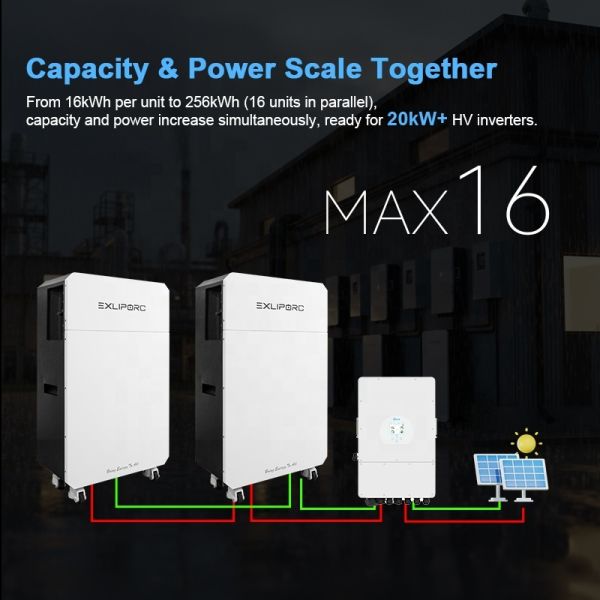

  • Scalable Power: Capacity and power scale together for high-power inverters
Product Images
High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage High Voltage Energy Storage System with 400V System Voltage and IP65 Protection Class Expandable to 256kWh LiFePO4 Battery for Solar Home Storage
Certifications & Compliance
Compliant with CE, IEC62619, UN38.3 international standards
About EXLIPORC
Founded in 2017 and located in Shenzhen, EXLIPORC specializes in lithium battery solutions and supplies comprehensive lithium battery products to customers. Our professional teams focus on quality control, inspection, company operations, and after-sales service.
We have built a modernized high-quality management system in strict accordance with international standards to supply excellent products and services.
Our battery models are widely used in energy storage systems, commercial and industrial areas, E-bikes, E-scooters, RVs, golf carts, forklifts, and other transportation tools.
Since its foundation, EXLIPORC has always adhered to "quality of products in order to survive, credibility and development services" business purposes. We are committed to offering our customers excellent services and products, taking responsibility throughout the entire customer journey.
Quality Assurance
Most of our models have gained international certification including UL, TUV-CB, CE, ROHS, FCC, IEC62619, EMC, UN38.3 and MSDS. We continuously work to improve existing products and create new models according to customer requests.
Our Mission: Live Green, Save Green. We look forward to establishing long-term successful business relationships with clients worldwide.
