400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
Specifications
Battery Type :
LiFePO4, LiFePO4
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong
System Voltage :
400V
Output Power Range :
5-10kW
Dimension (L*W*H) :
505*860*230mm
Weight :
124kg
System Type :
Floor-mounted
Type :
SPLIT
Communication Port :
CAN, RS-232, RS485
Protection Class :
IP65
Grid connection :
Hybrid grid
Product name :
HV Energy Storage Battery System
Module Nominal Voltage :
400V
Module Capacity :
314Ah
System Nominal Voltage :
400V
System Operating Voltage :
345~455V
System Energy :
16.07~128.56
IP Rating of Enclosure :
IP65
Cycle Life :
25±2°C, 0.5C/0.5C, EOL70%≥6000
Certification :
CE/IEC62619/ MSDS/ UN38.3
MOQ :
1
Price :
R 32 574,68-36 775,10
Description

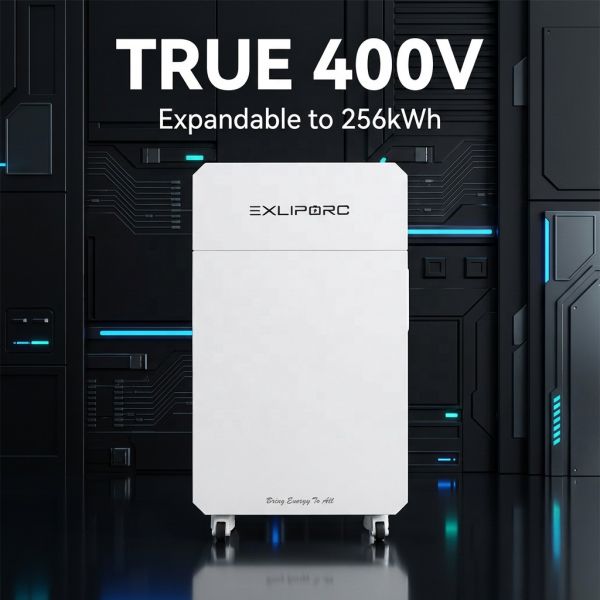

True 400V High Voltage Energy Storage System 16kWh Expandable to 256kWh
Product Overview

A scalable, high-voltage platform for large projects — easy to deploy, safe, flexible, and optimized for long-term ROI.

Key Features & Advantages
  • 400V DC-DC Direct Boost: Simplifies design, boosts efficiency, and lowers system cost

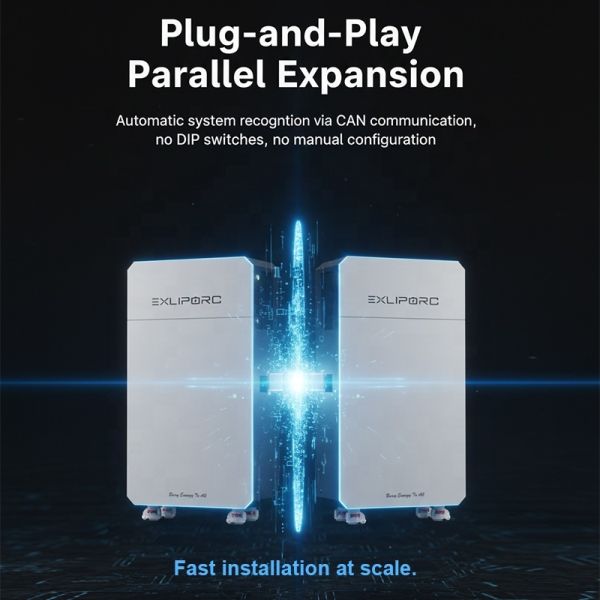

  • Plug-and-Play Expansion: Auto-ID via CAN enables easy scaling from 16kWh to 128kWh
  • Seamless Battery Mixing: New and old units work together, protecting investment
  • No Parallel "Barrel Effect": Advanced control prevents weakest-module limitations
  • High-Voltage Safety: 400V operation reduces current, heat, and losses
  • Intelligent BMS: Active thermal and power management enhance lifespan
  • Robust Construction: IP65 rating, -20°C to 55°C operating range
  • High Energy Density: Large cells & 90% DoD deliver maximum usable energy
  • Proven Reliability: Ultra-low failure rate and unit-replacement policy

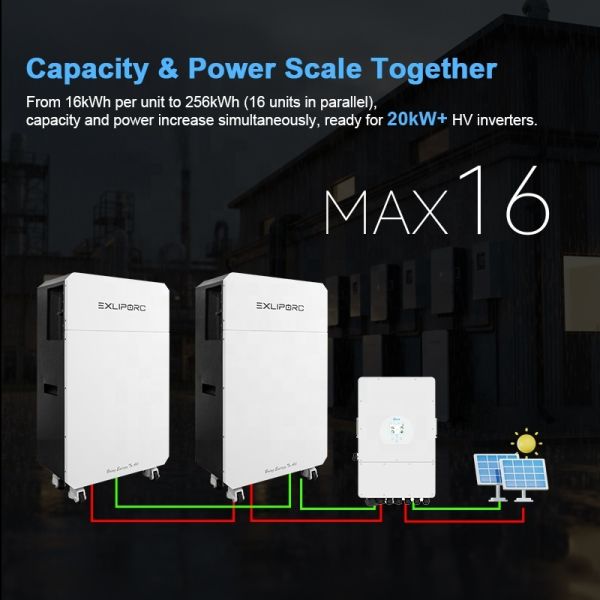

  • Scalable Power: Capacity and power scale together for high-power inverters
Compliant with CE, IEC62619, UN38.3
Product Images
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
About EXLIPORC

EXLIPORC was founded in 2017 and is located in Shen Zhen. We specialize in selling lithium batteries and supplying complete lithium battery solutions to customers. Our professional teams focus on quality control, inspection, company operations, and after-sales service.

We have built a modernized high-quality management system in strict accordance with international standards. Our battery models are widely used in energy storage systems, commercial and industrial areas, E-bikes, E-scooters, RVs, golf carts, forklifts, and other transportation tools.

Business Philosophy: "Quality of products in order to survive, credibility and development services"

Mission: Live Green, Save Green

Certifications & Quality

Most of our models have gained international certification including UL, TUV-CB, CE, ROHS, FCC, IEC62619, EMC, UN38.3 and MSDS. We continuously work to improve existing products and create new models according to customer requests.

Company Overview
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
Competitive Advantages
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
Factory Profile
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
Packaging & Shipping
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
Customer Photos
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection 400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
Trade Show Participation
400V High Voltage Energy Storage System Expandable to 256kWh with IP65 Protection
