EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
Specifications
Module Capacity :
314Ah
System Energy :
16.07~128.56
System Operating Voltage :
345~455V
IP Rating of Enclosure :
IP65
Model Number :
LVB15WTC
Battery Type :
LiFePO4, LiFePO4
Brand Name :
EXLIPORC
Output Power Range :
5-10kW(6.71-13.41hp)
Place of Origin :
Guangdong
Type :
SPLIT
Weight :
124kg(273.37lb)
Communication Port :
CAN, RS-232, RS485
System Voltage :
400V
System Type :
Floor-mounted
Product name :
HV Energy Storage Battery System
Dimension (L*W*H) :
505*860*230mm(19.88*33.86*9.06in)
Protection Class :
IP65
Grid connection :
Hybrid grid
System Nominal Voltage :
400V
Cycle Life :
25±2°C, 0.5C/0.5C, EOL70%≥6000
Certification :
CE/IEC62619/ MSDS/ UN38.3
Module Nominal Voltage :
400V
Description
Highlights
  • High-Voltage Efficiency: 400V architecture delivers 97%+ round-trip efficiency, minimizing energy loss compared to traditional 48V systems.
  • 3-Phase Optimization: Specially engineered for luxury estates with 3-phase power, supporting high-torque appliances like HVAC and pool pumps.
  • Sleek Floor-Standing Design: Minimalist white casing with industrial-grade wheels for effortless positioning and a clean, high-end installation aesthetic.
  • Integrated Interface Panel: Side-mounted technical panel for neat, professional cabling and easy maintenance access.
  • Superior Safety: Grade-A LiFePO4 chemistry with 6,000+ cycles and an advanced smart BMS for multi-layer protection.
Technical Specifications
Item Specifications
Model EXL-HV-16K-FS
Nominal Energy 16.38 kWh
Nominal Voltage 400V (High Voltage)
Battery Type LiFePO4 (LFP)
Cycle Life ≥ 6,000 Cycles @ 80% DOD
Standard Charge/Discharge 0.5C / 0.5C
Protection Level IP65 (Suitable for Indoor/Outdoor)
Communication CAN / RS485 / WiFi
Installation Floor-standing with wheels
Dimensions (LxWxH) 600 x 350 x 1050 mm
Weight Approx. 165 kg
Detailed Marketing Copy

The New Standard for Premium Residential Energy As modern luxury homes transition to smarter, high-power grids, the demand for efficiency has never been higher. The EXLIPORC 16kWh 400V High-Voltage system is the professional response to this shift. By operating at a higher voltage, the system reduces current flow, allowing for thinner, more elegant cabling and significantly higher energy conversion rates.

Why HV Architecture Matters: Traditional 48V systems suffer from significant "boost" losses when powering household AC loads. Our 400V system stays close to the inverter’s operating range, ensuring that every kilowatt-hour of solar energy is utilized, not wasted as heat.

Designed for Sophisticated Estates: From its clean, "all-white" industrial design to its mobile floor-standing base, every detail of the EXL-HV-16K-FS is crafted to complement modern architecture. Whether integrated into a smart garage or a dedicated utility room, it delivers the power you need with the elegance you expect.

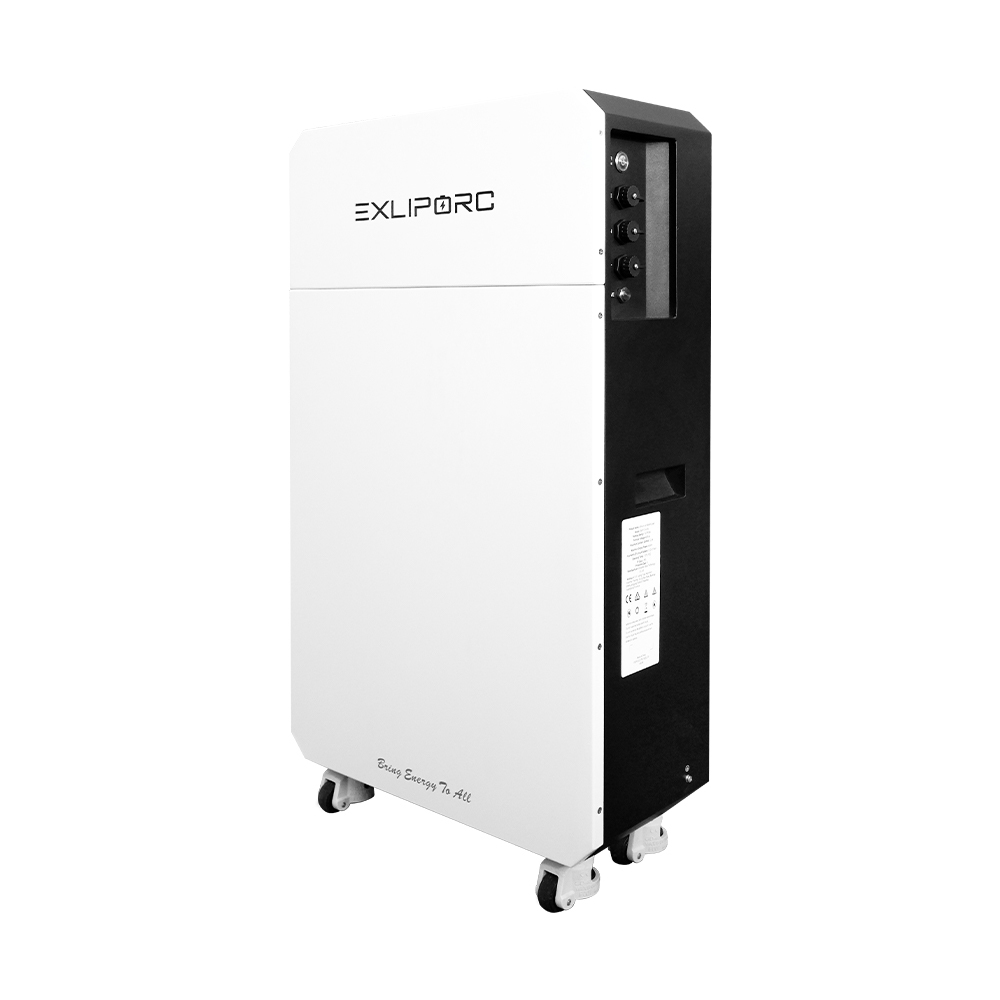

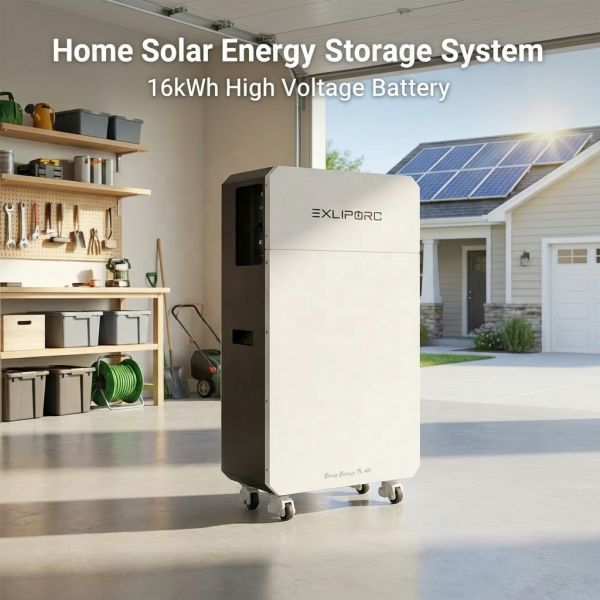

Product Images
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
About EXLIPORC

EXLIPORC was founded in 2017 and is located in Shen Zhen. We specialize in selling lithium batteries and providing comprehensive lithium battery solutions to customers. Our professional teams focus on quality control, inspection, company operations, and after-sales service.

We have built a modernized high-quality management system in strict accordance with international standards. Our battery models are widely used in energy storage systems, commercial and industrial applications, E-bikes, E-scooters, RVs, golf carts, forklifts, and other transportation tools.

Since our foundation, EXLIPORC has always adhered to "quality of products in order to survive, credibility and development services" as our business purpose. We are committed to offering customers excellent services and products, taking responsibility throughout the entire customer journey.

Most of our models have gained international certifications including UL, TUV-CB, CE, ROHS, FCC, IEC62619, EMC, UN38.3 and MSDS. We continuously work to improve existing products and create new models according to customer requests.

Our mission is "Live Green, Save Green." We look forward to establishing long-term successful business relationships with clients worldwide.

EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
Competitive Advantages
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
Factory Profile
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
Packaging & Shipping Specifications
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
Customer Photos
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
Trade Show Participation
EXLIPORC 16.38kWh 400V High-Voltage LiFePO4 Home Battery System with Floor-standing Modular Design and Smart BMS
