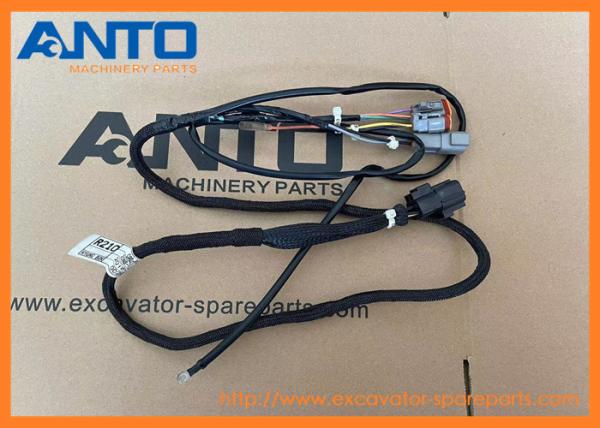

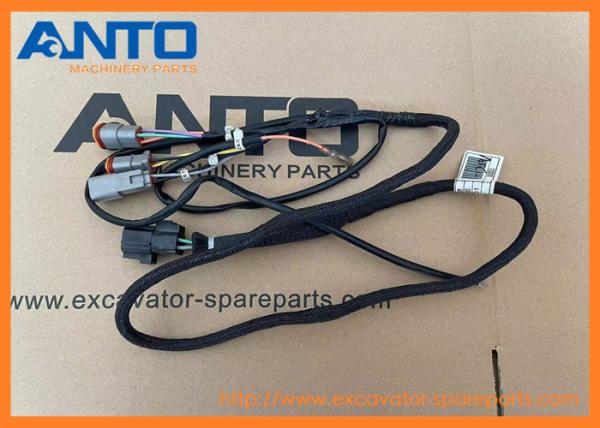

• 21N811160 21N8-11160 Harness Excavator Electric Parts Fitting For HYUNDAI R140W7 R140W7A

• Specification

• Function

1.Power Distribution: Transmits electrical power from the excavator's battery or power source to the left control box and connected devices, such as switches, relays, and solenoids, providing the necessary energy for operation.

2.Signal Transmission: Carries electrical signals between the control box and other parts of the machine, including sensors (e.g., position sensors, pressure sensors) and actuators (e.g., hydraulic control valves). This enables the operator to control functions like arm movement, bucket operation, and travel through the control box.

3.Data Communication: In modern excavators with electronic control units (ECUs), the harness may also facilitate data exchange, allowing the control box to receive and send information to the machine's central control system for coordinated operation and diagnostic purposes.

• Application

• More harness parts Applied To HYUNDAI machine

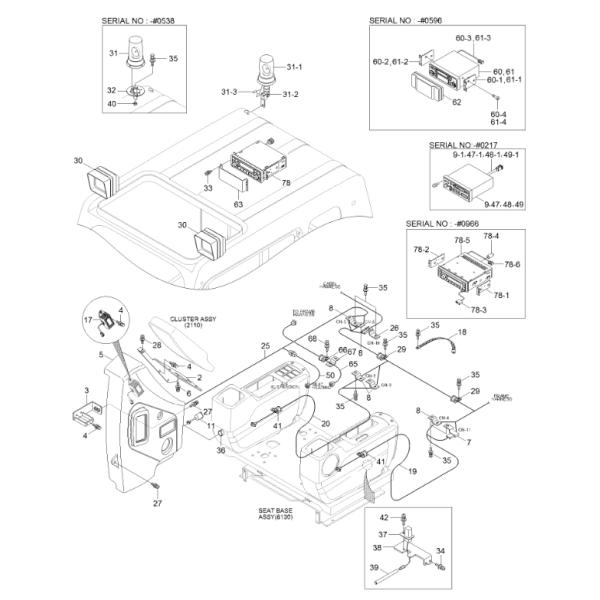

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
2	21N8-21011	[1]	BRACKET WA	STD-CABIN
2	21N6-01320	[1]	BRACKET WA	UPGRADE CABIN
3	21N8-21070	[1]	BRACKET WA	STD-CABIN
3	21N6-01330	[1]	BRACKET WA	UPGRADE CABIN
4	S035-061626	[5]	BOLT-W/WASHER
5	21N8-21021	[1]	COVER-WIPER MOTOR	STD-CABIN
5	21N6-01310	[1]	COVER-WIPER MOTOR	UPGRADE CABIN
5	21N6-01311	[1]	COVER-WIPER MOTOR	UPGRADE CABIN
6	S035-081526	[4]	BOLT-W/WASHER
7	25D1-10660	[1]	CLIP ASSY
8	21N4-01130	[5]	PLATE-CLIP
9	21N8-22030	[1]	CASSETTE RADIO	GENERAL
9-1.	3.755E+11	[1]	WIRE ASSY-20 H818
11	21N8-20010	[1]	SOCKET-12V	OPTION
18	21EH-30720	[1]	STRAP-EARTH
19	21N8-11160	[1]	HARNESS-CONSOLE,LH
20	21N6-60020	[1]	HARNESS-RH,CONSOLE
20	21N3-10510	[1]	HARNESS-RH,CONSOLE
25	21N6-60030	[1]	HARNESS-SIDE,RH
25	21N6-60031	[1]	HARNESS-SIDE,RH
26	25D1-10650	[1]	CLIP ASSY
27	S132-061676	[2]	SCREW-W/WASHER
28	S132-061546	[1]	SCREW-W/WASHER
29	S543-280002	[2]	CLAMP-TUBE
30	21N6-20211	[2]	WORK LAMP ASSY
30-1.	S866-240650	[1]	BULB-H3,65W	NOT SHOWN
31	F23842010	[1]	STROBE LAMP-RED	STD-CABIN
31	21Q4-30380	[1]	BEACON LAMP ASSY	OPTION
31	21Q4-30381	[1]	BEACON LAMP ASSY	OPTION
N31.	20N8-41420BG	[1]	BEACON LAMP ASSY	UPGRADE CABIN
31-1.	21Q4-20700	[1]	BEACON LAMP
31-1.	21Q4-30700	[1]	BEACON LAMP
31-2.	21Q4-20600	[1]	BRACKET-TILT
31-2.	21Q4-31000	[1]	BRACKET-TILT
31-3.	21N4-02830	[1]	HARNESS-BEACON LAMP
32	21N8-00581	[1]	BRACKET-BEACON LAMP	OPTION
32	21N8-00581BG	[1]	BRACKET-BEACON LAMP	OPTION
33	S131-051046	[4]	SCREW-W/WASHER
34	S131-051546	[2]	SCREW-W/WASHER
35	S037-102026	[9]	BOLT-W/WASHER
35	S037-102026	[7]	BOLT-W/WASHER
36	S661-260300	[1]	CAP-RUBBER
37	21M5-50250	[1]	SWITCH ASSY	SAFETY SW
38	21N8-21080	[1]	PLATE
39	S890-107508	[1]	TUBE-PVC
40	S205-101002	[2]	NUT-HEX
41	S591-000802	[2]	CLIP-HARNESS
42	S161-040106	[3]	SCREW-CROSS R/ROUND
43	21N8-20201	[1]	DC-DC CONVERTER ASSY	OPTION
47	21N8-22010	[1]	CASSETTE RADIO	U.S.A
47-1.	3.755E+11	[1]	WIRE ASSY-20 H818
48	21N8-22020	[1]	CASSETTE RADIO	EUROPE
48-1.	3.755E+11	[1]	WIRE ASSY-20 H818
49	21N8-21030	[1]	CASSETTE RADIO-KOREA	LOCAL
49-1.	3.755E+11	[1]	WIRE ASSY-20 H818
50	21N8-40190	[1]	EXT.HARNESS-A/RIDE SEAT
N60.	21N8-50010	[1]	CASSETTE RADIO ASSY	STD
N60.	21N8-50050	[1]	CASSETTE RADIO ASSY
60-1.	21N6-10480	[1]	BRACKET-LH
60-2.	21N6-10490	[1]	BRACKET-RH
60-3.	21N8-01600	[1]	HARNESS-EXT WIRE
60-4.	S141-050106	[4]	SCREW-FLAT HD
61	21N8-40500	[1]	CD PLAYER ASSY	OPTION
61-1.	21N6-10480	[1]	BRACKET-LH
61-2.	21N6-10490	[1]	BRACKET-RH
61-3.	21N8-01600	[1]	HARNESS-EXT WIRE
61-4.	S141-050102	[4]	SCREW-FLAT HD
62	21N8-40940	[1]	COVER-DUST
63	21N6-10450	[1]	PLATE-C/RADIO COVER	W/O C/RADIO
65	21N4-02820	[1]	HARNESS-SEAT HEATING
66	S593-000902	[1]	CLIP-HARNESS
67	21N4-01190	[1]	PLATE-CLIP
68	S037-102026	[1]	BOLT-W/WASHER
78	21N8-50100	[1]	RADIO/USB PLAYER ASSY
78	21N8-54000	[1]	RADIO & USB PLAYER ASSY
78	21N8-55000	[1]	RADIO/USB PLAYER
78-1.	21LM-31010	[1]	BRACKET L
78-2.	21LM-31020	[1]	BRACKET R
78-3.	21LM-31030	[1]	CABLE-MP3
78-4.	21LM-31040	[1]	CAP
78-5.	21LM-31050	[1]	BODY-RADIO/USB
78-6.	21N8-50110	[1]	HARNESS-EXT,WIRE

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Our Service

1. OEM Manufacturing welcome : Product , Package ...

2. When you place order with us , we will take clear photos as your need .

3. We will reply you for your inquiry in 24 hours .

4. When you got the goods , test them , and give me a feedback . If you have any questions about the problem , contact with us , we will offer the solve way for you .

• Our Company

Anto Machinery is made up of a professinal engineering team, with high experirence in genuine, OEM and aftermarket parts.

for excavators, bulldozers, forklift, loaders, and crane covering brand Hyundai , Sany , DOOSAN , Vo-lvo , HITACHI , KOBELCO , KOMATSU , KATO , , JCB , LIEBHERR , SANY , XCMG , XGMA , LIUGONG , SHANTUI , etc.

We are with full range of data information for the engine parts, hydraulic parts ,seal parts, electrical parts, gear & reducer parts, cylinder parts, bucket parts, cab parts, etc. As exporting about 20 years, we now have customers the whole world including the countries Brazil, Mexico, Colombia, Venezuela, Peru, America, Canada, Russia, Poland, Ireland, Sweden, France, England, Romania, Spain, Portugal, Ukraine, Lithuania, Norway, Italy, Finland, UAE, Saudi Arabia, Israel, Iraq, Sudan, Kenya, Tanzania, Sri Lanka, Kazakhstan, Pakistan, Burma, Thailand, Vitenam, Philippines, Indonesia, Australia, New Zealand, etc.

Thanks very much to our customers support and big trust.

We will keep improving everyday. Any of your encouragement in inquiry and order is our motivation.

We warm welcome your visiting and consulting on your needed parts.

• Why choose us

1. Quality stability .

2. Professional R&D team .

3. We have all Specifications of our products and can meet customers ’ product diversity needs .

4. We prefer to accept your lower MOQ in order to relieve your purchasing stress .

5. Our markets are widely distributed to North Europe , East Europe , West Europe , North America , South America , East Asia , Southeast Asia , Middle East , Australia , etc . and enjoy good reputation .
