• 21N811151 21N8-11151 Harness Excavator Electric Parts Fitting For HYUNDAI R140LC-7 R160LC7

• Specification

• Function

1.Power Distribution: Transmits electrical power from the excavator's battery or power source to the left control box and connected devices, such as switches, relays, and solenoids, providing the necessary energy for operation.

2.Signal Transmission: Carries electrical signals between the control box and other parts of the machine, including sensors (e.g., position sensors, pressure sensors) and actuators (e.g., hydraulic control valves). This enables the operator to control functions like arm movement, bucket operation, and travel through the control box.

3.Data Communication: In modern excavators with electronic control units (ECUs), the harness may also facilitate data exchange, allowing the control box to receive and send information to the machine's central control system for coordinated operation and diagnostic purposes.

• Application

• More harness parts Applied To HYUNDAI machine

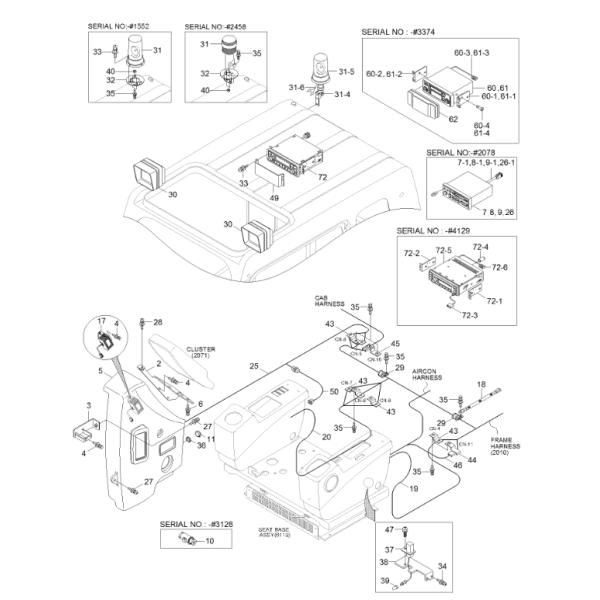

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
2	21N8-21011	[1]	BRACKET WA
3	21N8-21070	[1]	BRACKET WA
4	S035-061622	[10]	BOLT-W/WASHER
5	21N8-21021	[1]	COVER-WIPER MOTOR
6	S035-081622	[4]	BOLT-W/WASHER
7	21N8-22010	[1]	CASSETTE RADIO	USA
7-1.	3.755E+11	[1]	WIRE ASSY-20 H818
8	21N8-22020	[1]	CASSETTE RADIO	EUROPE
8-1.	3.755E+11	[1]	WIRE ASSY-20 H818
9	21N8-22030	[1]	CASSETTE RADIO	GENERAL
9-1.	3.755E+11	[1]	WIRE ASSY-20 H818
11	21N8-20010	[1]	SOCKET-12V	OPTION
17	21N8-20201	[1]	DC-DC CONVERTER ASSY	OPTION
18	21EH-30720	[1]	STRAP-EARTH
19	21N8-11160	[1]	HARNESS-CONSOLE,LH
20	21N8-11150	[1]	HARNESS-CONSOLE,RH
20	21N8-11151	[1]	HARNESS-CONSOLE,RH
20	21N4-02810	[1]	HARNESS-CONSOLE,RH
25	21N8-11180	[1]	HARNESS-SIDE,RH
25	21N8-11181	[1]	HARNESS-SIDE,RH
25	21N8-40140	[1]	HARNESS-SIDE,RH
26	21N8-21030	[1]	CASSETTE RADIO-KOREA
26-1.	3.755E+11	[1]	WIRE ASSY-20 H818
27	S132-061676	[2]	SCREW-W/WASHER
28	S132-061546	[1]	SCREW-W/WASHER
29	S543-280003	[2]	CLAMP-TUBE
30	21N6-20211	[2]	WORK LAMP ASSY
30-1.	S866-240650	[1]	BULB-H3,65W	NOT SHOWN
31	21EK-10420	[1]	BEACON LAMP ASSY	OPTION
31	F23842010	[1]	STROBE LAMP-RED	OPTION
31	21Q4-30381	[1]	BEACON LAMP ASSY	OPTION
31-1.	21EK-10140	[1]	BEACON LAMP	NOT SHOWN
31-2.	21EK-10330	[1]	BULB-H1,70W	NOT SHOWN
31-3.	21EK-20240	[1]	HARNESS-BEACON LAMP	NOT SHOWN
31-4.	21Q4-31000	[1]	BRACKET-TILT
31-41.	21EK-10330	[1]	BULB-H1,70W	NOT SHOWN
31-5.	21Q4-20700	[1]	BEACON LAMP
31-5.	21Q4-30700	[1]	BEACON LAMP
31-51.	H1U 64155	[1]	BULB-H1,70W
31-6.	21N4-02830	[1]	HARNESS-BEACON LAMP
32	21N8-00580	[1]	BRACKET-BEACON LAMP
32	21N8-00581	[1]	BRACKET-BEACON LAMP
32	21N8-00581BG	[1]	BRACKET-BEACON LAMP
33	S131-051046	[7]	SCREW-W/WASHER
33	S131-051046	[4]	SCREW-W/WASHER
34	S131-051646	[2]	SCREW-W/WASHER
35	S037-102022	[9]	BOLT-W/WASHER
35	S037-102022	[7]	BOLT-W/WASHER
36	S661-260300	[1]	CAP-RUBBER
37	21M5-50250	[1]	SWITCH ASSY	SAFETY SW
38	21N8-21080	[1]	PLATE
39	S890-107508	[1]	TUBE-PVC
40	S205-101002	[2]	NUT-HEX
43	21N4-01130	[6]	PLATE-CLIP
44	25D1-10660	[1]	CLIP ASSY
45	25D1-10650	[1]	CLIP ASSY
46	S591-000802	[2]	CLIP-HARNESS
47	S161-040106	[3]	SCREW-CROSS R/ROUND
49	21N6-10450	[1]	PLATE-C/RADIO COVER
50	21N8-40190	[1]	EXT.HARNESS-A/RIDE SEAT
N60.	21N8-50010	[1]	CASSETTE RADIO ASSY	STD
N60.	21N8-50050	[1]	CASSETTE RADIO ASSY	STD
60-1.	21N6-10480	[1]	BRACKET-LH
60-2.	21N6-10490	[1]	BRACKET-RH
60-3.	21N8-01600	[1]	HARNESS-EXT WIRE
60-4.	S141-050102	[4]	SCREW-FLAT HD
61	21N8-40500	[1]	CD PLAYER ASSY	OPTION
61-1.	21N6-10480	[1]	BRACKET-LH
61-2.	21N6-10490	[1]	BRACKET-RH
61-3.	21N8-01600	[1]	HARNESS-EXT WIRE
61-4.	S141-050102	[4]	SCREW-FLAT HD
62	21N8-40940	[1]	COVER-DUST
72	21N8-50100	[1]	RADIO/USB PLAYER ASSY
72	21N8-54000	[1]	RADIO & USB PLAYER ASSY
72	21N8-55000	[1]	RADIO/USB PLAYER
72-1.	21LM-31010	[1]	BRACKET L
72-2.	21LM-31020	[1]	BRACKET R
72-3.	21LM-31030	[1]	CABLE-MP3
72-4.	21LM-31040	[1]	CAP
72-5.	21LM-31050	[1]	BODY-RADIO/USB
72-6.	21N8-50110	[1]	HARNESS-EXT,WIRE

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
