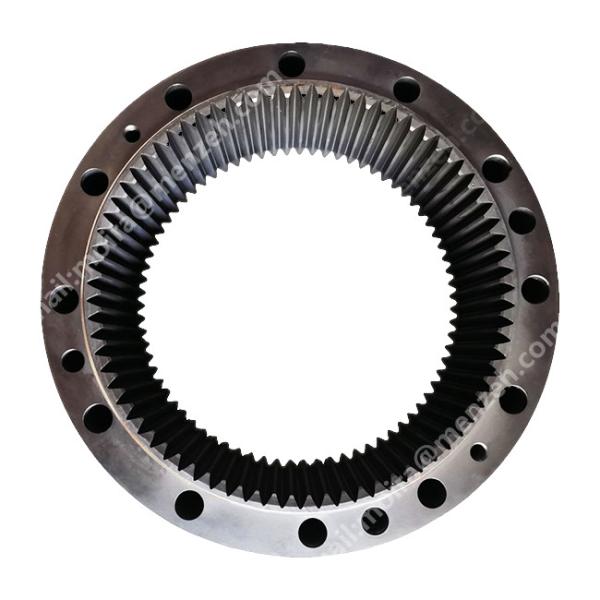

R305 R290 Excavator Swing Reduction Gear Ring Gear
R305 R290 Excavator Swing Reduction Gear Ring Gear
Specifications
Brand Name :
MENZEH GEARS
Model Number :
R305 R290
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Ring Gear
Part Number :
R305 R290
Used For :
R305 R290
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port :
Huangpu Guangzhou
High Light :
R305 R290 Excavator Swing Reduction Gear Ring Gear
After Warranty :
Video technical support Online support Spare parts
Description

R305 R290 Excavator Swing Reduction Gear Ring Gear

Part Name Gear
Part No. 31N8-10181 31Q8-11141 81N8-00023 31N8-10190
Used For R305 R290
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

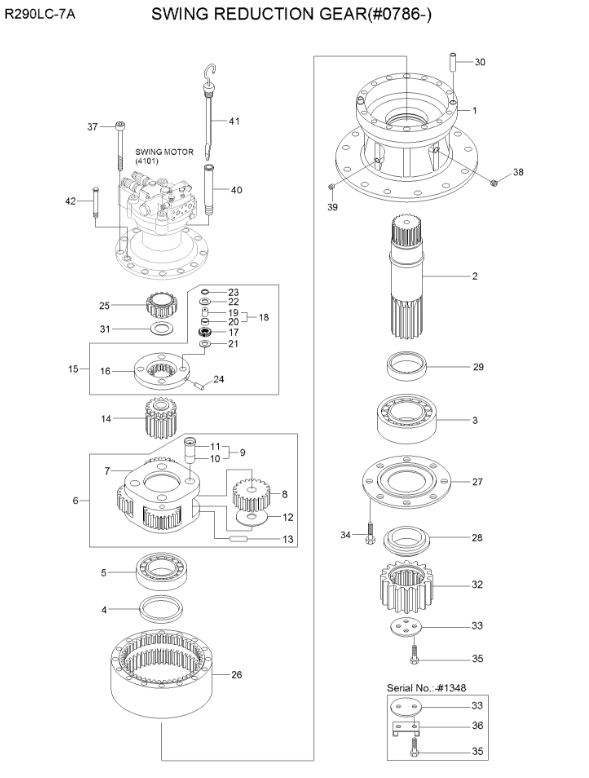

Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4101
*-2. 31N8-10180 [1] SWING REDUCTION GEAR
*-2. 31N8-10181 [1] SWING REDUCTION GEAR
1 XKAQ-00427 [1] CASING
2 XKAQ-00428 [1] SHAFT-DRIVE
2 XKAQ-00759 [1] SHAFT-DRIVE
3 XKAQ-00117 [1] BEARING-ROLLER
4 XKAQ-00119 [1] SEAL-OIL
5 XKAQ-00120 [1] BEARING-ROLLER
6 XKAQ-00429 [1] CARRIER ASSY-2
7 XKAQ-00430 [1] CARRIER-2
8 XKAQ-00431 [4] GEAR-PLANET-2
9 XKAQ-00432 [4] PIN ASSY-2
N10. XKAQ-00433 [1] PIN-2
N11. XKAQ-00434 [1] BUSHING-2
12 XKAQ-00435 [8] WASHER-THRUST
13 XKAQ-00050 [4] PIN-SPRING
14 XKAQ-00436 [1] GEAR-SUN-2
15 XKAQ-00437 [1] CARRIER ASSY-1
16 XKAQ-00438 [1] CARRIER-1
17 XKAQ-00439 [4] GEAR-PLANET-1
18 XKAQ-00440 [4] PIN ASSY 1
N19. XKAQ-00441 [1] PIN 1
N20. XKAQ-00079 [1] BUSHING 1
21 XKAQ-00417 [4] PLATE 1-SIDE
22 XKAQ-00416 [4] PLATE 2-SIDE
23 XKAQ-00041 [4] RING-STOP
24 XKAQ-00048 [4] PIN-SPRING
25 XKAQ-00442 [1] GEAR-SUN-1
26 XKAQ-00444 [1] GEAR-RING
27 XKAQ-00443 [1] PLATE-COVER
28 XKAQ-00445 [1] SPACER
28 XKAQ-00758 [1] SPACER
29 XKAQ-00446 [1] RING-SPACER
30 XKAQ-00072 [2] PIN-KNOCK
31 XKAQ-00447 [1] PLATE 3-THRUST
32 XKAQ-00013 [1] GEAR-PINION
33 XKAQ-00043 [1] PLATE-LOCK
33 XKAQ-00757 [1] PLATE-LOCK
34 XKAQ-00064 [8] BOLT-HEX
35 XKAQ-00042 [2] BOLT-HEX
35 XKAQ-00756 [4] BOLT-HEX
36 XKAQ-00292 [1] WASHER-LOCK
37 XKAQ-00448 [12] BOLT-SOCKET
38 XKAQ-00049 [1] PLUG
39 XKAQ-00066 [2] PLUG
40 XKAQ-00167 [1] PIPE-GAUGE
41 XKAQ-00449 [1] BAR-GAGE
42 XKAQ-00143 [1] POST-AIR BREATHER

R305 R290 Excavator Swing Reduction Gear Ring Gear

R305 R290 Excavator Swing Reduction Gear Ring Gear

R305 R290 Excavator Swing Reduction Gear Ring Gear



FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

R305 R290 Excavator Swing Reduction Gear Ring GearR305 R290 Excavator Swing Reduction Gear Ring GearR305 R290 Excavator Swing Reduction Gear Ring GearR305 R290 Excavator Swing Reduction Gear Ring GearR305 R290 Excavator Swing Reduction Gear Ring GearR305 R290 Excavator Swing Reduction Gear Ring Gear

R305 R290 Excavator Swing Reduction Gear Ring GearR305 R290 Excavator Swing Reduction Gear Ring GearR305 R290 Excavator Swing Reduction Gear Ring Gear
