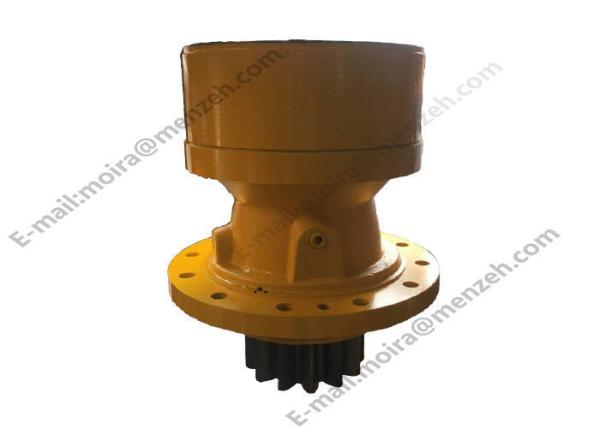

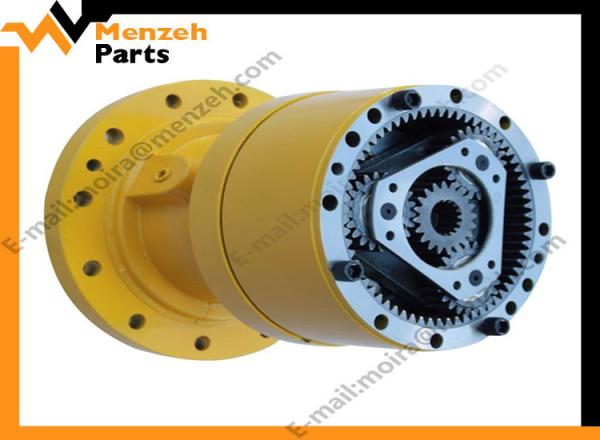

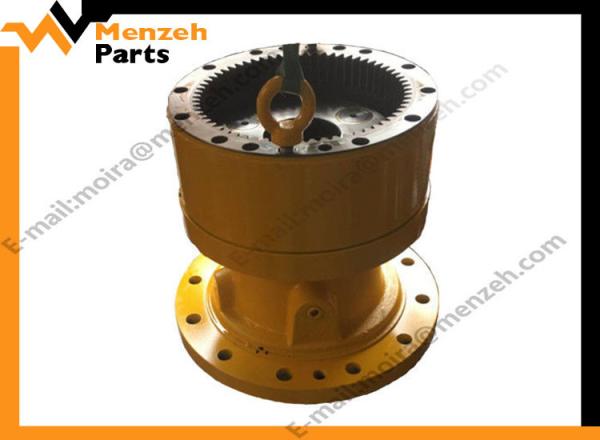

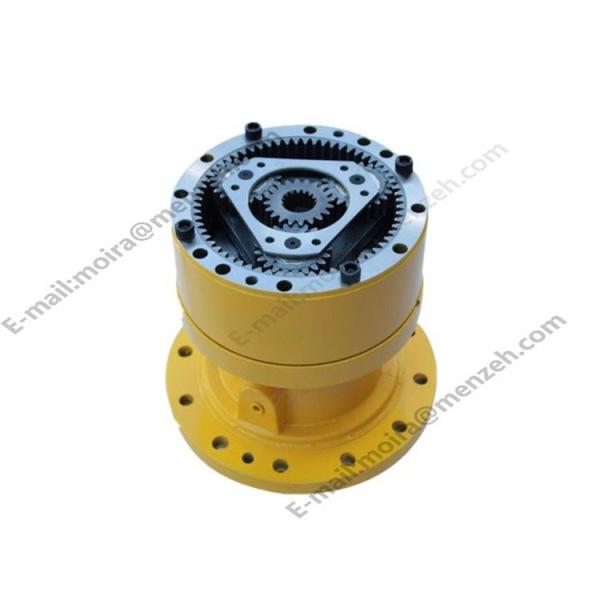

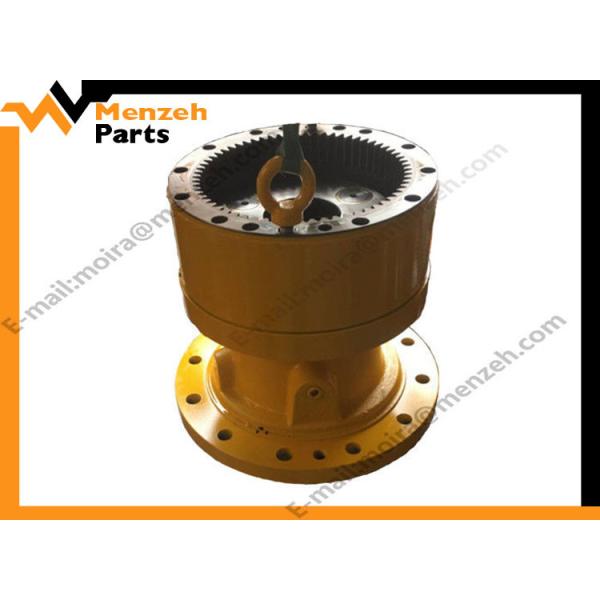

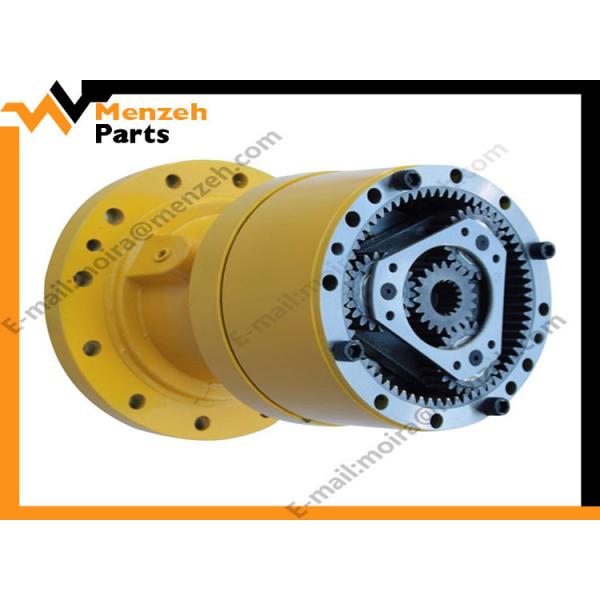

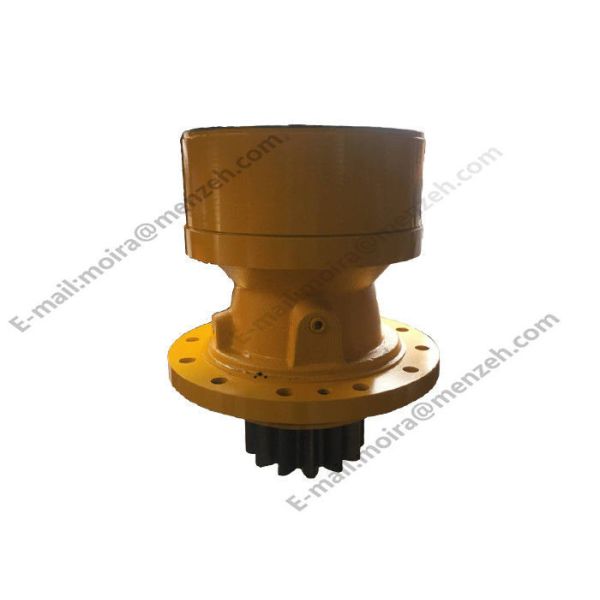

31N6-10180 Excavator Swing Gearbox
31N6-10180 Excavator Swing Gearbox
31N6-10180 Excavator Swing Gearbox
31N6-10180 Excavator Swing Gearbox
31N6-10180 Excavator Swing Gearbox
31N6-10180 Excavator Swing Gearbox
31N6-10180 Excavator Swing Gearbox
31N6-10180 Excavator Swing Gearbox
Specifications
Brand Name :
MENZEH GEARS
Model Number :
31N6-10180 31N6-10150 39N6-10152 Swing Gearbox R210-7 R220-7 R210-5 R215-7
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Swing Gearbox
Part Number :
31N6-10180 31N6-10150 39N6-10152
Used For :
R210-7 R220-7 R210-5 R215-7
Condiction :
All New
Warrenty :
3 Months
Shipping :
DHL/ TNT/ UPS/ SEA/ AIR
Port :
Huangpu
High Light :
R210-7 R220-7 R210-5 R215-7
After Warranty Service :
Online support Free Spare parts
Description

31N6-10180 31N6-10150 39N6-10152 Swing Gearbox R210-7 R220-7 R210-5 R215-7 Excavator Swing Device

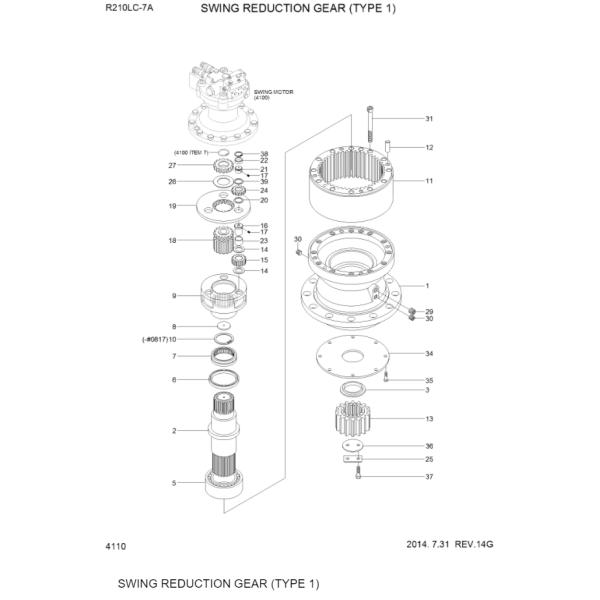

Pos. Part No Qty Parts name Comments
N*. @ [1] SWING MOTOR ASSY
*-2. 31N6-10180 [1] SWING REDUCTION GEAR
*-2. 31N6-10181 [1] SWING REDUCTION GEAR
*-2. 31N6-10181AR [1] SWING REDUCTION GEAR TYPE 1
1 XKAQ-00771 [1] CASING
1 XKAQ-00962 [1] CASING
2 XKAQ-00331 [1] SHAFT-DRIVE
2 XKAQ-00780 [1] SHAFT-DRIVE
3 XKAQ-00018 [1] SPACER
5 XKAQ-00026 [1] BEARING-ROLLER
6 XKAQ-00032 [1] SEAL-OIL
7 XKAQ-00029 [1] BEARING-ROLLER
7 XKAQ-00647 [1] BEARING-ROLLER
7 XKAQ-00961 [1] BEARING-ROLLER
8 XKAQ-00076 [1] PLATE-THRUST
9 XKAQ-00075 [1] CARRIER 2
10 XKAQ-00074 [1] RING-STOP
11 XKAQ-00284 [1] GEAR-RING
11 XKAQ-00779 [1] GEAR-RING
12 XKAQ-00072 [4] PIN-KNOCK
13 XKAQ-00976 [1] GEAR-PINION
14 XKAQ-00071 [6] WASHER-THRUST
15 XKAQ-00023 [3] GEAR-PLANET 2
16 XKAQ-00070 [3] PIN 2 INCL 23
17 XKAQ-00048 [6] PIN-SPRING
18 XKAQ-00011 [1] GEAR-SUN 2
19 XKAQ-00015 [1] CARRIER 1
20 XKAQ-00057 [3] PLATE-SIDE 1
21 XKAQ-00019 [3] PIN 1
22 XKAQ-00030 [3] CAGE-NEEDLE
N23. XKAQ-00533 [3] BUSHING 2
24 XKAQ-00025 [3] GEAR-PLANET 1
25 XKAQ-00292 [1] WASHER-LOCK
26 XKAQ-00068 [1] PLATE-SIDE 3
27 XKAQ-00010 [1] GEAR-SUN 1
29 XKAQ-00049 [1] PLUG
30 XKAQ-00066 [2] PLUG
31 XKAQ-00065 [12] BOLT-SOCKET
34 XKAQ-00031 [1] PLATE-COVER
35 XKAQ-00064 [8] BOLT-HEX
36 XKAQ-00043 [1] PLATE-LOCK
37 XKAQ-00042 [2] BOLT-HEX
38 XKAQ-00041 [3] RING-STOP
39 XKAQ-00040 [3] PLATE-SIDE 2
*-1. @ [1] SWING MOTOR UNIT SEE 4100

31N6-10180 Excavator Swing Gearbox31N6-10180 Excavator Swing Gearbox31N6-10180 Excavator Swing Gearbox31N6-10180 Excavator Swing Gearbox31N6-10180 Excavator Swing Gearbox


FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

31N6-10180 Excavator Swing Gearbox

31N6-10180 Excavator Swing Gearbox31N6-10180 Excavator Swing Gearbox31N6-10180 Excavator Swing Gearbox
