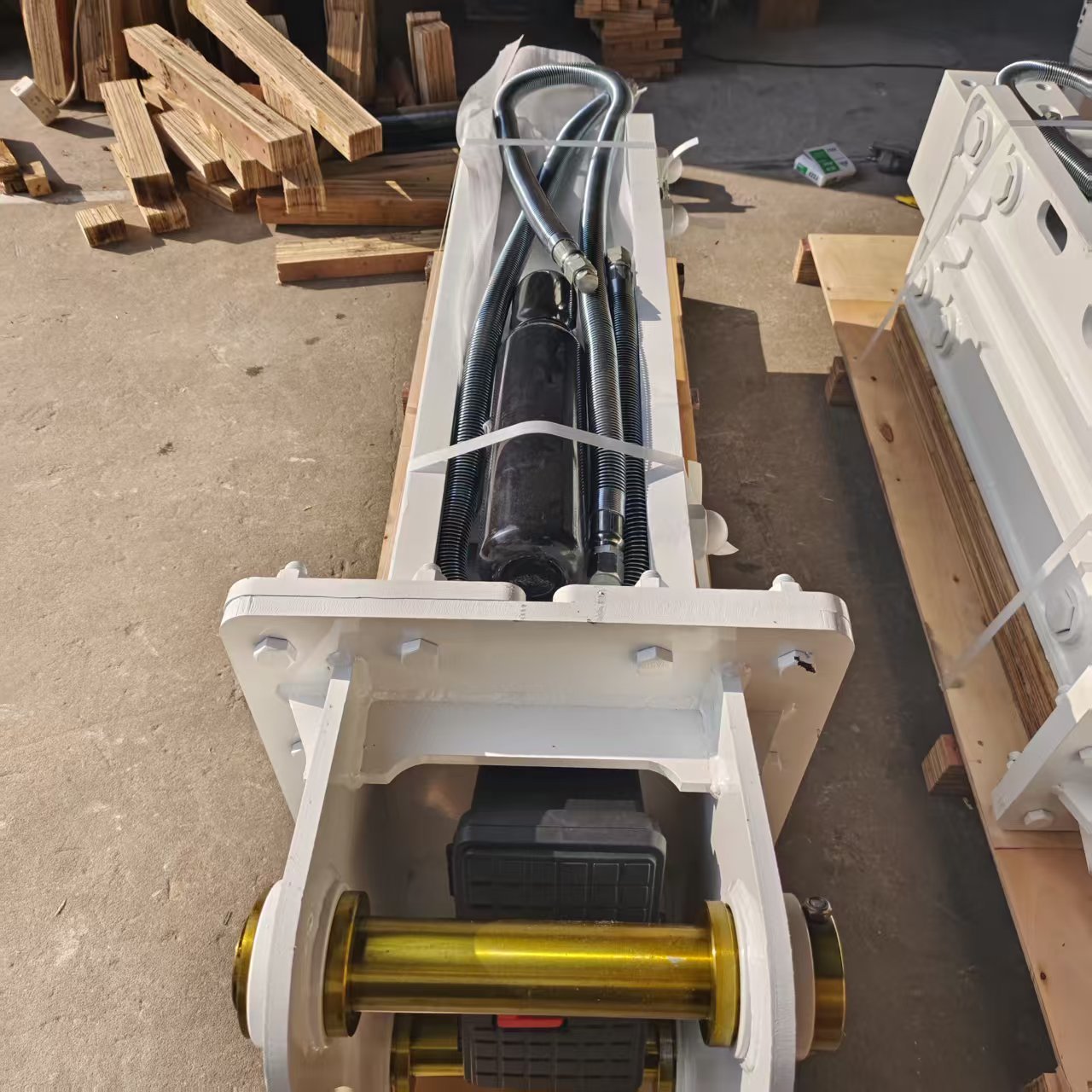

Soosan SB50 Straight Type Hydraulic Breaker 100mm Chisel Rock Breaker Hammer for 10-12 Ton Excavators
Soosan SB50 Straight Type Hydraulic Breaker 100mm Chisel Rock Breaker Hammer for 10-12 Ton Excavators
Soosan SB50 Straight Type Hydraulic Breaker 100mm Chisel Rock Breaker Hammer for 10-12 Ton Excavators
Soosan SB50 Straight Type Hydraulic Breaker 100mm Chisel Rock Breaker Hammer for 10-12 Ton Excavators
Soosan SB50 Straight Type Hydraulic Breaker 100mm Chisel Rock Breaker Hammer for 10-12 Ton Excavators
Soosan SB50 Straight Type Hydraulic Breaker 100mm Chisel Rock Breaker Hammer for 10-12 Ton Excavators
Soosan SB50 Straight Type Hydraulic Breaker 100mm Chisel Rock Breaker Hammer for 10-12 Ton Excavators
Soosan SB50 Straight Type Hydraulic Breaker 100mm Chisel Rock Breaker Hammer for 10-12 Ton Excavators
Specifications
Applications :
Demolition, quarrying, trenching
Place of Origin :
China
Model :
Open Type
Model Number :
SB50
Material :
High-strength steel
Payment Terms :
L/C,T/T
Used For :
Hydraulic Breaker
Delivery Time :
1-7 days
Valve :
20CrMo
Colour :
As you request
Price :
Negotiable
Packaging Details :
Export wooden box
Applicable Industries :
Construction
Supply Ability :
1000pcs/month
Oil Seals :
NOkkk
MOQ :
1
Port :
Guangzhou
Brand Name :
MSGB
Payment :
TT/Paypal/Western Union
Description
Product Features
  • Straight-Body Design: Streamlined housing minimizes vibration transfer to the excavator boom and arm, reducing host machine fatigue and extending structural lifespan by up to 20%.
  • Hydraulic-Nitrogen Combined System: Integrated nitrogen accumulator chamber amplifies impact energy on each stroke, delivering higher breaking force with lower oil flow consumption compared to pure hydraulic breakers.
  • Induction-Hardened Piston: Precision-machined piston with surface hardness HRC 58-62 withstands 100,000+ impact cycles without deformation, ensuring long-term reliability.
  • 100mm Premium Chisel: Forged from high-carbon alloy steel with through-hardened treatment, available in pointed (general purpose), flat (surface breaking), pyramidddd (hard rock), and wedge (quarrying) configurations.
  • Anti-Blank Firing System: Automatically stops piston impact when no material resistance is detected, protecting both the chisel tip and piston face from destructive metal-to-metal contact.
  • Optimized Recoil Damping: Nitrogen chamber absorbs rebound energy, reducing operator fatigue and noise levels by 15% compared to open-type breakers.
  • Low Oil Flow Requirement: Only 80-110 L/min needed, reducing fuel consumption of the host excavator by 8-10% during breaking operations.
  • Modular Maintenance Design: Simplified internal structure allows chisel and seal kit replacement in under 1 hour with basic hand tools — no special equipment required.
  • Grease Lubrication Points: Dedicated grease nipples on chisel bushings ensure easy field maintenance, extending chisel service life to 800-1,200 hours.
