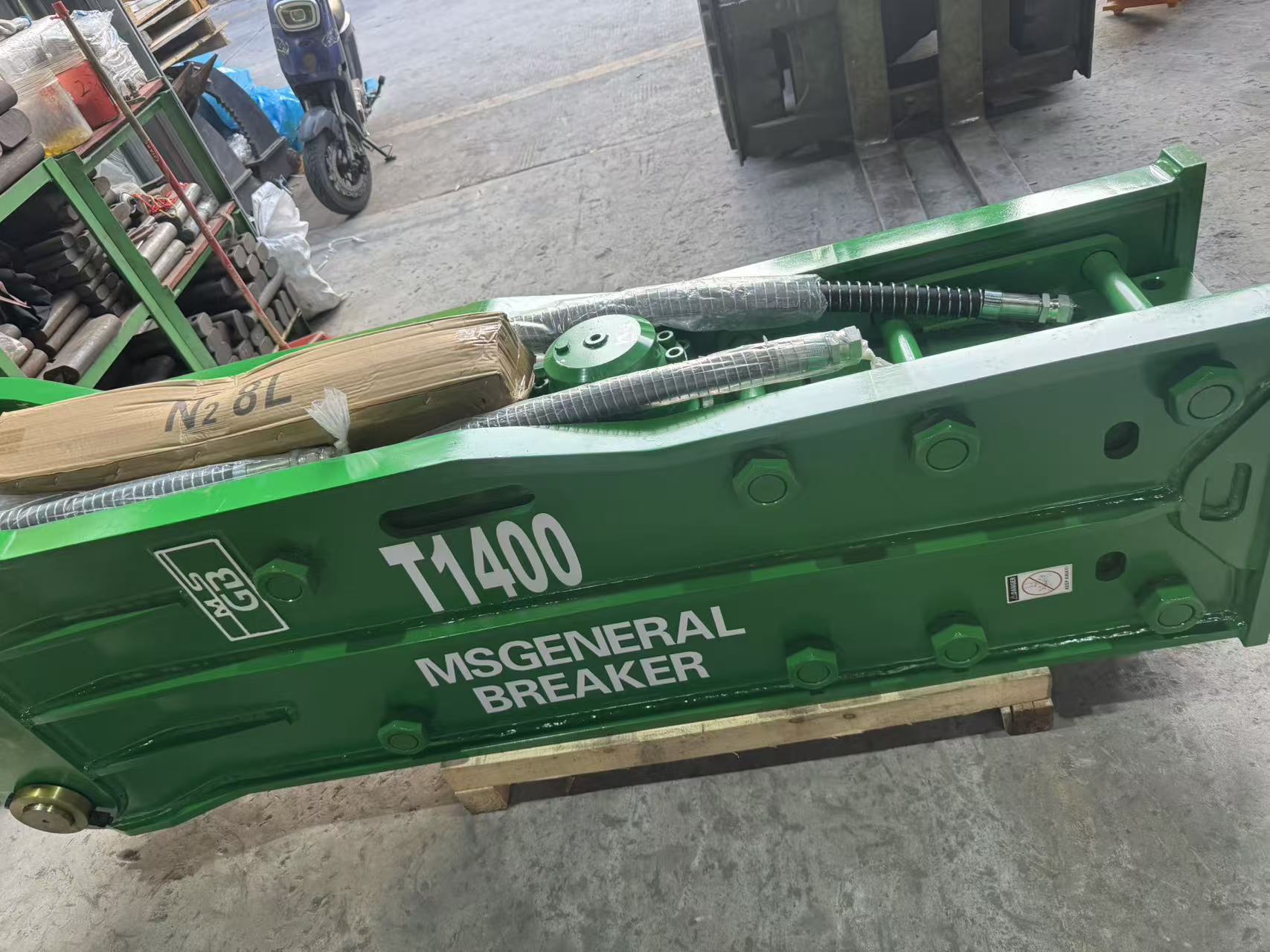

MSGB1400 Kanggong 140 Mining Excavator Hydraulic Hammer 120-180 L/Min
MSGB1400 Kanggong 140 Mining Excavator Hydraulic Hammer 120-180 L/Min
MSGB1400 Kanggong 140 Mining Excavator Hydraulic Hammer 120-180 L/Min
MSGB1400 Kanggong 140 Mining Excavator Hydraulic Hammer 120-180 L/Min
Specifications
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
1-7days
Blow Frequency :
350-500 BPM
Price :
Negotiable
Hose Size :
1" (25mm)
Packaging Details :
Export wooden box
MOQ :
1
Working Pressure :
160-190 Bar
Model Number :
SB81
Place of Origin :
CHINA
Impact Energy :
4100J
Supply Ability :
100pcs/month
Chisel Diameter :
140mm / 5.51"
Hydraulic Flow :
120-180 L/min
Nitrogen Pressure :
16-18 Bar
Total Weight :
1750kg / 3858lbs
Brand Name :
MSGB
Description
MSGB1400 Hydraulic Breaker, Kanggong 140 Mining Hydraulic Hammer for Excavators
Product Overview

Built for rigorous mining environments, this premium MSGB1400 hydraulic breaker serves as a high-performance Kanggong 140 mining hydraulic hammer for heavy-duty excavation operations. As a robust excavator hydraulic breaker attachment, this reliable mining hydraulic rock breaker hammer delivers steady hydraulic output, exceptional wear resistance and formidable breaking force. It handles tough hard rock crushing, quarry mining and large-scale stone demolition efficiently, acting as an essential heavy-duty tool for diverse mining and construction projects.

Product Advantages

Crafted with mine-grade integrated forged steel, this durable MSGB1400 hydraulic breaker boasts enhanced compression and impact resistance to withstand long-term harsh mining work. The upgraded internal valve system stabilizes the operation of the Kanggong 140 mining hydraulic hammer, preventing hammer jamming and power attenuation during continuous heavy loads. This premium hydraulic rock breaker hammer adopts a high-tightness sealing structure to avoid hydraulic leakage, with optimized mechanical structure reducing vibration loss, cutting maintenance costs and boosting overall mining construction efficiency.

Product Specifications
  • Product Name: MSGB1400 Hydraulic Breaker, Kanggong 140 Mining Hydraulic Hammer
  • Applicable Equipment: 20-25 Ton Mainstream Excavators
  • Product Type: Heavy-Duty Mining Special Hydraulic Breaking Hammer
  • Core Features: Mine-grade wear resistance, super impact force, anti-vibration, anti-leakage, stable frequency, long service life
  • Working Pressure: Standard hydraulic pressure for 20-25 ton excavators
  • Manufacturing Standard: Mine-grade high-strength forging and precision assembly standard
  • Application: Mine hard rock breaking, quarry stone crushing, mountain excavation, heavy building demolition, foundation engineering
MSGB1400 Kanggong 140 Mining Excavator Hydraulic Hammer 120-180 L/Min
Frequently Asked Questions
Q1: What size excavator is the GB1400 breaker compatible with?
The GB1400 hydraulic breaker (with a 140mm chisel diameter) is designed for 18-26 ton excavators, with optimal performance on 20-ton models (e.g., PC200, CAT320, EC210). The carrier must provide a hydraulic flow of 120-180 L/min and working pressure of 160-190 bar.
Q2: What are the key specifications of the GB1400?
Total Weight 1750kg
Blow Frequency 350-500bpm
Impact Energy 4100J
Nitrogen Pressure 16-18bar
Hose Size 1 inch
Q3: What maintenance does the GB1400 require?
  • Grease the chisel and bushings every 2 hours to prevent dry wear.
  • Never perform blank firing (striking without material contact), as this causes severe internal damage.
  • Regularly check for loose bolts, damaged hoses, and contaminated hydraulic oil.
  • If idle for over 1 month, inspect seals and pistons to prevent rust and aging.
Q4: What after-sales support do you offer?
We offer a 12-month warranty (excluding wear parts: chisel, bushings, seals), plus global shipping, installation guidance videos, one-stop supply of wear parts, and OEM/customization support for bulk orders.
