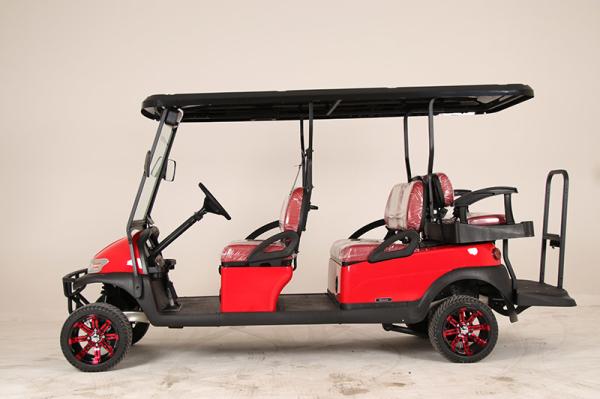

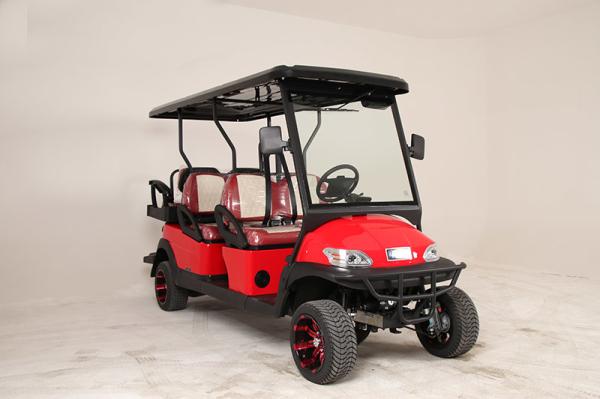

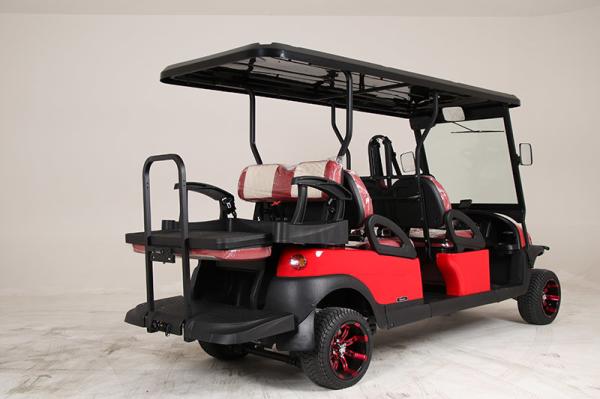

Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series
Specifications
Brand Name :
Excar
Model Number :
A1S4+2
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiable
Delivery Time :
20 days
Model: :
A1S4+2/FF
Color: :
Customized
Dimension: :
3500/1200/1900mm
Climbing Capacity: :
30%
Max.Forward Speed: :
24KM/H
Voltage: :
48V
Min.Turning Radius: :
3.9M
Battery: :
Trojan Battery
Description

Product Description :

CONFIGURATION
MOTOR: EXCAR 48V 3.7KW(AC)
CONTROLLER: EXCAR 48V/350A AC CONTROLLER
BATTERIES: 48V
CHARGER: 48V 17A INTELLIGENT ONBOARD CHARGER
CHASSIS CONFIGURATION
TRANSAXLE: SPECIAL REAR AXLE FOR ELECTRIC VEHICLE
BRAKE SYSTEM: REAR SELF-ADJUSTING DRUM BRAKE
STEERING STSREM: DUAL SELF-ADJUSTING RACK & PINION
F/R SUSPENSION: MCPHERSON INDEPENDENT SPRING

Performance

Item Description
System DC system AC system
Passenger Capacity 6 6
Climbing capacity(full load) 30% 35%
Max.Forward speed 23km/h 45km/h
Endurance mileage 50-70km 60-80km
Charging time 8-10 hours 8-10 hours
Max.Loading weight 360kgs 360kgs
Min.Turning radius 3.9m 3.9m
Max.Movement after brake at speed of 20km/h ≤4m ≤4m

* 1) based on the test conditions:20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.


Dimensions

Item Description
Overall dimensions (L x W x H) 3454x1219x1828mm
Ground clearance 114mm
Wheelbase 2490mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm

Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 215/35-12 tyre with12inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer

Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A SeriesRear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A SeriesRear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A SeriesRear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A SeriesRear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series

Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series

Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A SeriesRear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series

Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series

Rear Seat Fold Down Electric Lifted Golf Car 4+2 Red Color A Series

FAQ

1.Can you customize the cart according to our special request?

Yes,we can customize the cart according to your request unless some complex parts we hard to make.

2.What is your MOQ?

You can order just 1 unit .But if your order is big, we will provide you with a discount.

3.Can we put the Logo we designed on the cart?

Yes, you can put your own Logo on the cart.

4.What is your lead time for production?

The typical lead time of our cart is 15 days.

5.What kind of warranty Excar provides?

Non-artificial damaged products,shifting for a year or one year repair.
