Specifications
Brand Name :
EXCAR
Model Number :
M1S2
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
7 days after received your deposit
Packaging Details :
LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Framework :
Aluminium
Body :
All engineering plastic
Batteries :
Lead-acid wet batteries USA Trojan batteries
Controller :
USA Curtis controller 48V 275A
Steer system :
Self-adjusting rack & pinion
Front suspension :
Independent spring suspension
Rear suspension :
Coil spring hydraulic shock absorber
Motor :
ADC separately excited 48V 3.7w
Charger :
48V 17Ah onboard charger
Brand :
EXCAR
Max.speed :
25km/h or 45km/h
Climbing capacity :
20% or 25%
Charging time :
8-10 hours
Seat :
2 seater
Windshield :
PC material
Supporting pipe :
black coating
Description

EXCAR 4 Wheel Fuel Type48V Electric golf Buggy car 2 seater electric golf cart for sale

Key Components

System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16
Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator

Basic specification

Item Description
Brand Excar
Model M1S2
Overall dimensions (L x W x H) 3200x1200x1800mm
Ground clearance 150mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm
Passenger Capacity 2
Climbing capacity(full load) 30%
Max. forward speed 35KM/H
Endurance mileage 80-100KM
Chassis Aluminum chassis
Net weght 400KG
Min.turning radius 2.9M

Steering & suspersion

Item Description
Steering System

Self-adjusting rack and pinion steering system,

with automatic compensation function
Brake System Rear wheel mechanical brake
Accelerator Holzer type, stepless speed change
Front suspension Mcpherson independent spring suspension
Rear suspension Coil spring hydraulic shock absorber
Driving model Rear axle two stage deceleration, motor direct driving
Wheel & Tyre Aluminum wheel & USA Carlisle 18*8.5-8 6 layers

Body and Frame

Item Description
Frame & Chassis Steel alloy framework
Body PP engineering plastic front and rear body cover, injected
Roof Glass fiber reinforced plastic
Windshield Organic glass (PMMA), one-piece or two pieces
Roof supports Imbedding black coating steel tube in the plastic support
Cushion Reborn sponge with artificial leather and plastic bottom cover
Backrest Reborn sponge with artificial leather and plastic cover
Armrest Plastic
Floor mat Anti-skidding rubber
Rear basket Plastic
Golf bag holder Plastic support with nylon strap
Dashboard Black plastic material, battery power indicator, ignition key on it
Beverage holders 4 pcs cups holders, 2 pcs for each side
Side trim Plastic, black
Score card holder On the steering wheel

Color Options

Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White

Features

※ Italy Graziano Transaxle
※ Unique E-KEY
※ Electromagnetic Brake Makes Driving More Safty
※ Special Design LED Headlight
※ Advanced Disc Brake Technology
※ Three-point Seat Belts
※ Rear View Mirror And Driver/Passenger Side Mirrors
※ Automotive Safty Glass Windshield
※ Deep Cup Holders
※ Comfortable,Contoured Seats

※ 100% waterproof accelerator

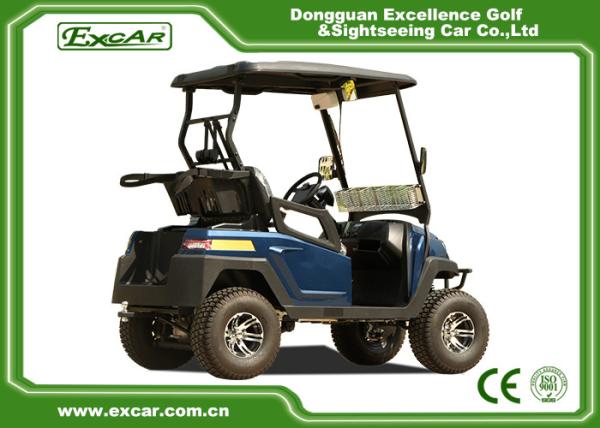

Product show

Four Wheel Fuel Type 48 Volt Electric Golf Carts 2 Seater , Charging Time 8-10 Hours

Four Wheel Fuel Type 48 Volt Electric Golf Carts 2 Seater , Charging Time 8-10 Hours
