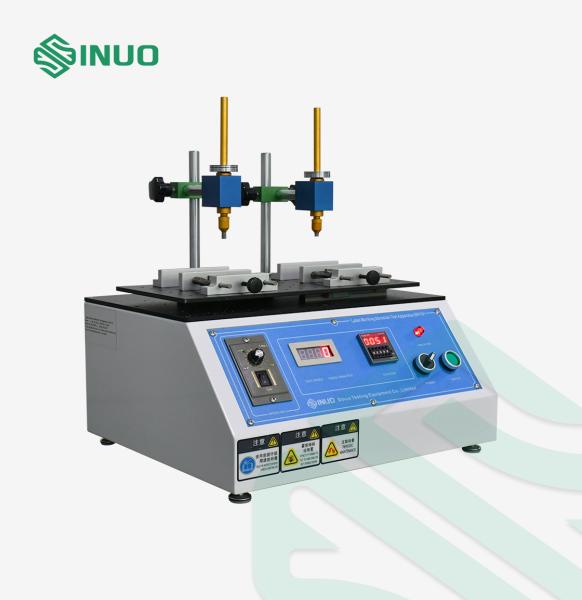

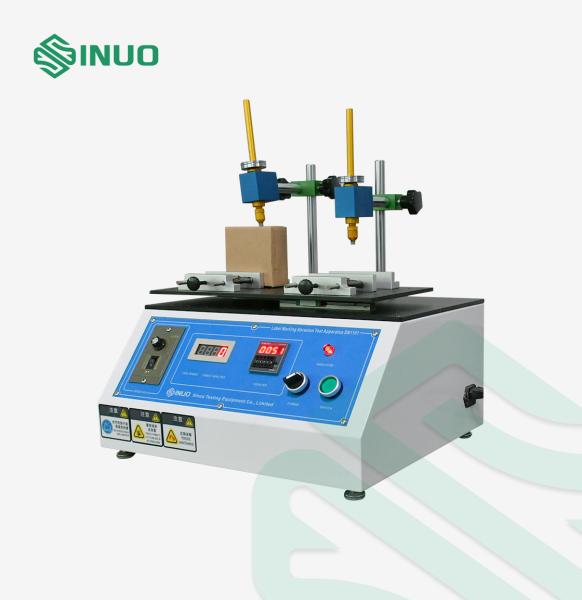

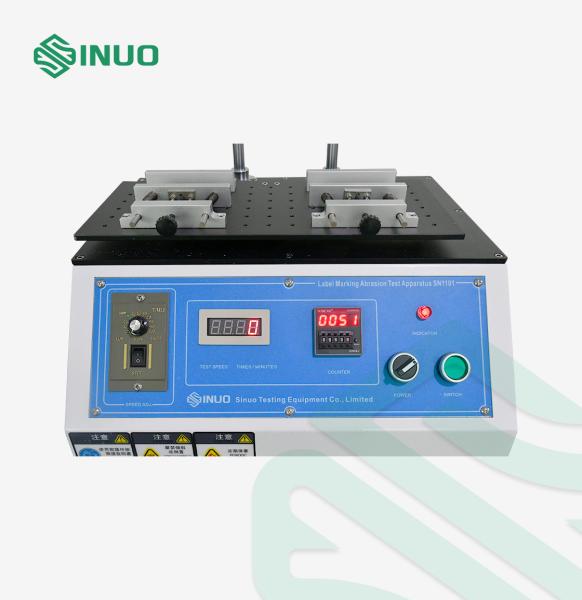

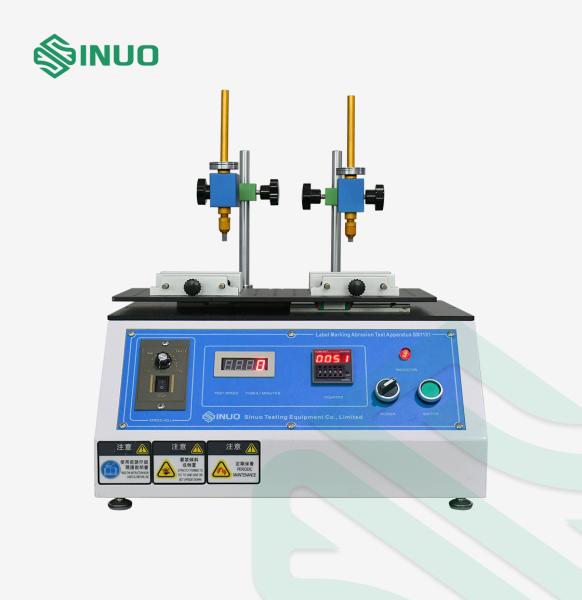

IEC 62196 Dual Station Label Marking Abrasion Test Apparatus
IEC 62196 Dual Station Label Marking Abrasion Test Apparatus
IEC 62196 Dual Station Label Marking Abrasion Test Apparatus
IEC 62196 Dual Station Label Marking Abrasion Test Apparatus
IEC 62196 Dual Station Label Marking Abrasion Test Apparatus
IEC 62196 Dual Station Label Marking Abrasion Test Apparatus
IEC 62196 Dual Station Label Marking Abrasion Test Apparatus
IEC 62196 Dual Station Label Marking Abrasion Test Apparatus
Specifications
Brand Name :
Sinuo
Model Number :
SN1101B
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Application force :
5±1N
Drive mode :
Electric
Test Cycle :
0-9999 cycles
Test speed :
One cycle/s
Electrical control method :
Button control
Sample clamping method :
Mechanical clamping
Description


IEC 62196 Dual station Label Marking Abrasion Test Apparatus

Complied Standards & Clauses


This label marking abrasion test apparatus conforms to IEC 62196-1:2022 clause 8.7, figure 8.


Product Overview

It is utilized to assess the endurance of the marking. The examination is conducted by wiping the marking for 15 seconds with a cotton cloth moistened with water, followed by another 15 seconds with a cotton cloth soaked in 95% n-hexane (Chemical Abstracts Service Registry Number, CAS RN, 110-54-3). After testing with water, the marked surface shall be dried. Rubbing should begin immediately after soaking the cotton piece, applying a pressure force of (5 ± 1) N at an approximate rate of one cycle per second (one cycle consisting of a forward and backward stroke along the marking’s length). For markings exceeding 20 mm in length, rubbing may be restricted to a section of the marking over a path of at least 20 mm. The pressure force is exerted using a test piston wrapped with cotton, which consists of cotton wool enclosed by a layer of medical cotton gauze. The test piston must conform to the dimensions in Figure 8 and should be composed of an elastic material resistant to the test liquids, possessing a Shore-A hardness of 47 ± 5 (such as synthetic rubber).


Technical Parameters

Test station 2 stations
Electrical control method Button control
Drive mode Electric
Sample clamping method Mechanical clamping, clamping point position is adjustable
Test Cycle 0-9999 cycles, can be preset
Test speed One cycle/s (a cycle comprising forward and backward movement along the length of the marking)
Force 5±1N,applied by a weight
Test piston NF C 61-314 figure 48,rayon, Shore-A hardness shore A 47± 5

Details

IEC 62196 Dual Station Label Marking Abrasion Test ApparatusIEC 62196 Dual Station Label Marking Abrasion Test Apparatus
