IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN447
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
IPX5 Nozzle Size :
Ø6.3 mm
IPX6 Nozzle Size :
Ø12.5 mm
IPX5 Water Delivery Rate :
12.5 ± 0.625 L/min
IPX6 Water Delivery Rate :
100 ± 5 L/min
Turntable :
Ø600 mm
Load Capacity :
≤ 50 kg
Control System :
PLC and touchscreen control
Pressure Gauge :
0–0.25 MPa, digital display
Description


IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment

Complied Standards & Clauses

Conforms to IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX5 and IPX6.


Product Overview

The SN447 IPX5~6 Hose Nozzle Water Jet Test System is engineered to verify the water ingress protection of enclosures for electronic and electrical devices, automotive components, motorcycle parts, household appliances, lighting fixtures, and sealing elements. It simulates high-pressure water jets as defined in IEC 60529 IPX5 and IPX6, ensuring your product complies with international waterproof standards.

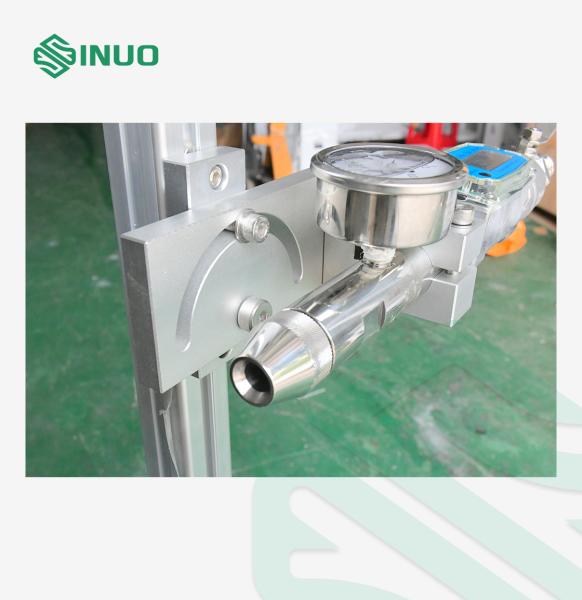

This system controls water flow precisely to meet standard delivery rates, using high-precision nozzles to spray the enclosure from all practicable directions. It features a PLC intelligent control system, adjustable jet angle, and a sturdy rotating turntable, offering reliable and repeatable IP testing performance.

Technical Parameters

Category

Specification
Standards Compliance IEC 60529-2013 (IPX5 and IPX6)
Nozzle Size IPX5: Ø6.3 mm  IPX6: Ø12.5 mm
Water Delivery Rate IPX5: 12.5 ± 0.625 L/min  IPX6: 100 ± 5 L/min
Nozzle to Enclosure Distance 2.8 m (within standard range of 2.5 – 3.0 m)
Jet Angle Adjustable water jet direction
Turntable Ø600 mm, 1 rpm, load capacity ≤ 50 kg
Test Duration 0.01 s – 99.9 min, programmable
Control System PLC and touchscreen control
Water Storage Tank 500 L stainless steel, open type, with float valve & level alarms

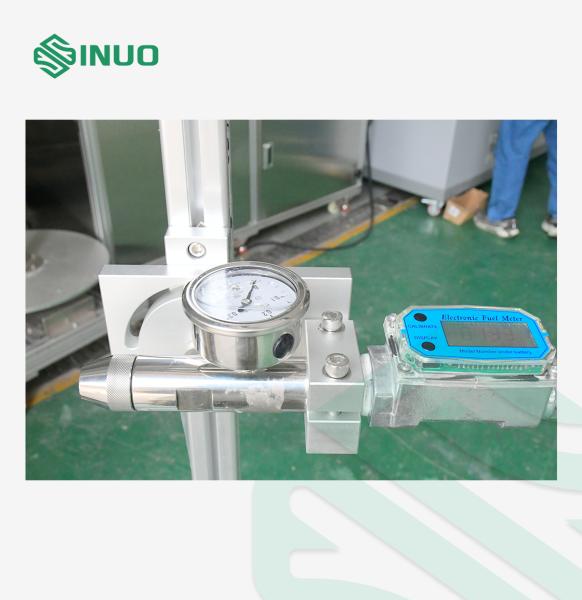

Nozzle Mounting Fixed support for spray and hose nozzles
Pressure Gauge 0–0.25 MPa, digital display
Safety Protections Phase sequence, leakage, water shortage, abnormal operation
Power Supply AC 380V, 50 Hz, 4 kW

Details

IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing EquipmentIPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
