IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN446B
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Outer diameter :
Ф102mm
Spherical diameter :
SФ75.5mm
Required Water Flow :
10L/min±5%
Moving Shield :
Made of aluminum, can be detachable
Flowmeter :
8L/min ~120L/min, digital display
Pressure :
50～150Kpa
Description
IPX3/IPX4 Spray Nozzle with Digital Flowmeter Waterproof Testing Equipment
IPX3 IPX4 Spray Nozzle with Digital Flowmeter IP Testing Equipment for Electronics provides comprehensive waterproof testing solutions for automotive components and electronic enclosures.
Compliance Standards
Meets the requirements of IEC 60529-2013 "Degrees of protection provided by enclosure (IP code)" IPX3 and IPX4, Figure 5.
Equipment Overview
This spray nozzle verifies the protective performance of enclosures for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals, and lamps under water spraying and splashing conditions at IPX3 and IPX4 protection levels.
Technical Specifications

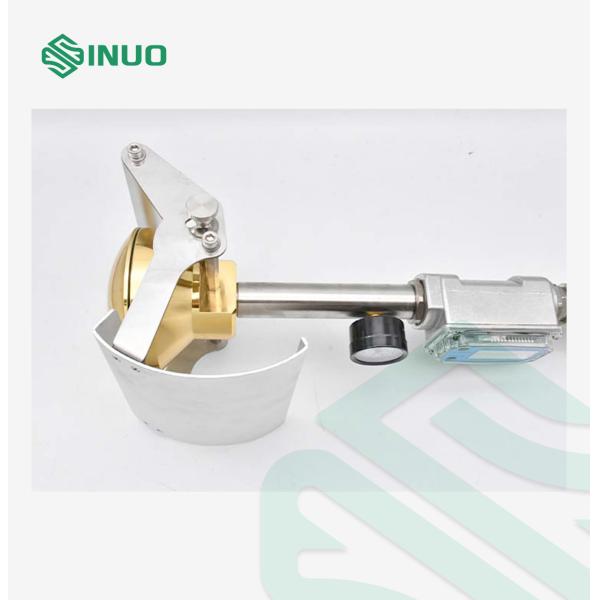

Spray Nozzle Parameters Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch, 4 outer circles of 24 holes at 15° pitch, total 121 holes of Ф0.5mm, made of brass
Required Water Flow 10L/min±5%
Pressure 50～150Kpa, pressure gauge measuring range: 0～0.25Mpa
Moving Shield Made of aluminum, detachable design

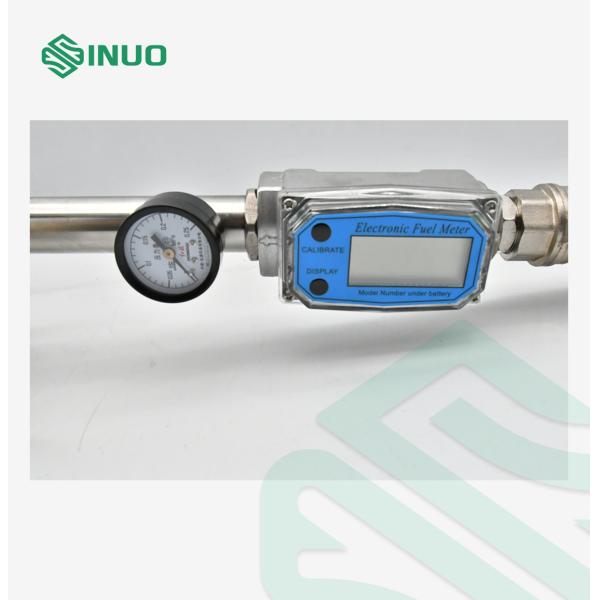

Flowmeter 8L/min ~120L/min, digital display
Product Details
IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Automotive Components IEC 60529 Test Equipment
