AC DC EV Charging Gun Electrial Safety Comprehensive Test System
AC DC EV Charging Gun Electrial Safety Comprehensive Test System
AC DC EV Charging Gun Electrial Safety Comprehensive Test System
AC DC EV Charging Gun Electrial Safety Comprehensive Test System
AC DC EV Charging Gun Electrial Safety Comprehensive Test System
AC DC EV Charging Gun Electrial Safety Comprehensive Test System
AC DC EV Charging Gun Electrial Safety Comprehensive Test System
AC DC EV Charging Gun Electrial Safety Comprehensive Test System
Specifications
Brand Name :
Sinuo
Model Number :
SNEQ08
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood box
Resistance Test Range :
1 – 5000Ω
Thermistor Test Range :
100 – 50,000Ω
Voltage Withstand Range :
AC 0 – 5kV/DC 0-6kV
Insulation Test Voltage :
DC 100 – 1000V
Insulation Resistance Range :
1MΩ – 1GΩ
Data Input Method :
Scanner (barcode/QR code)
Control System :
PLC + Industrial Computer
Computer Integration :
Supports MES integration (optional)
Description

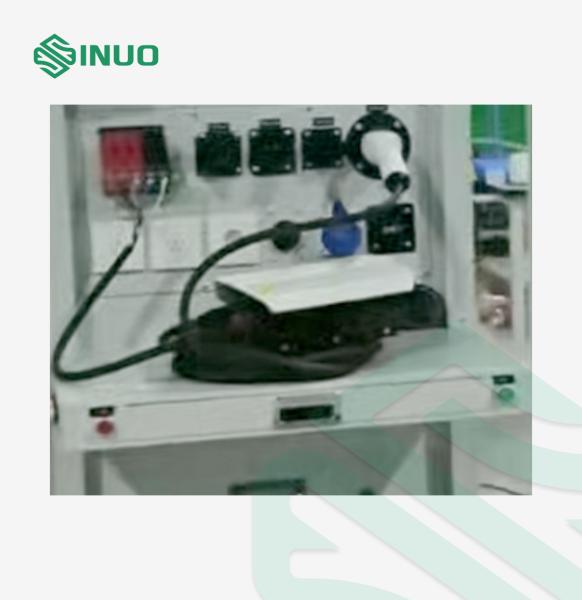

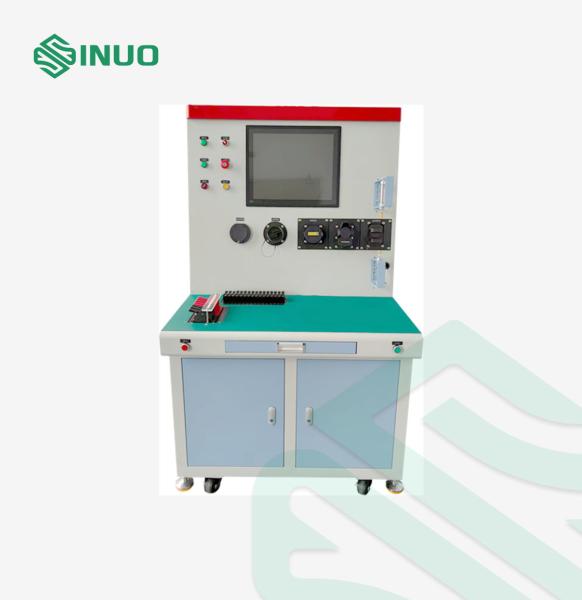

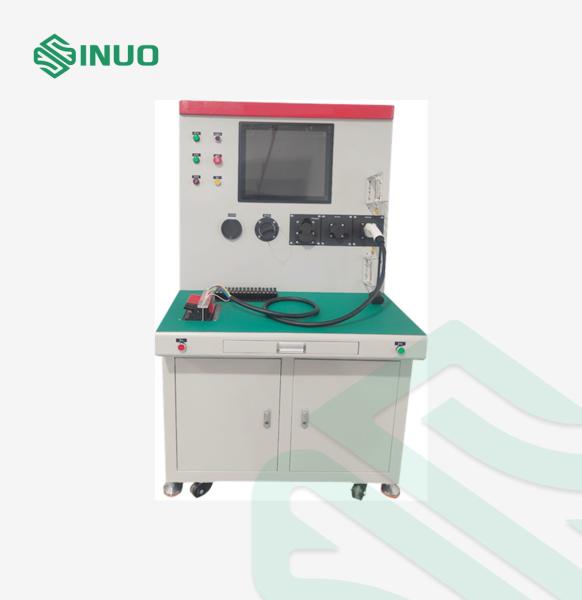

AC/DC Electric Vehicle Charging Gun Test Equipment Comprehensive Test System

Product overview

This testing system primarily checks the functionality of AC and DC guns meeting Chinese, European, and American standards. Each gun can be assigned a unique QR code, and test results are automatically saved to a report. Passing results can be printed. All functions are automatically tested in one go.

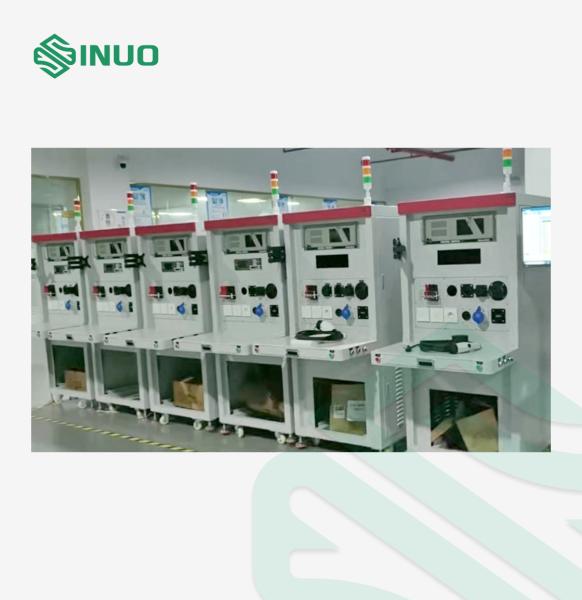

This system is highly efficient and labor-saving, making it suitable for full batch inspections in factories.

Technical Parameter

Test Contents:

  • Test each wire for breakage, continuity, short circuit, and incorrect wiring sequence.
  • Test main line continuity resistance.
  • Test internal resistors (including pushbuttons in both pressed and unpressed states).
  • Test electronic lock function.
  • Test inter-wire insulation.
  • Test inter-wire withstand voltage.
  • Test thermocouple wires.

Item

Specification
Power Input Single-phase AC 220V / 50Hz
Air Supply Input 0.6 MPa
Control System PLC + Industrial Computer
Computer Integration Supports MES integration (optional)
Data Input Method Scanner (barcode/QR code)
Resistance Test Range 1 – 5000Ω, Accuracy: 1%
Thermistor Test Range 100 – 50,000Ω, Accuracy: 2%
Voltage Output (Drive) DC 12V (positive and negative), with continuity monitoring
Insulation Test Voltage DC 100 – 1000V (adjustable)
Insulation Resistance Range 1MΩ – 1GΩ, Accuracy: ±5%
Withstand Voltage Range AC 0 – 5k
