Specifications
Brand Name :
Sinuo
Model Number :
SN1125-100A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Need air source :
0.2-0.8MPa, 0.6Nm3/min
High pressure :
1-100Mpa
Measurement accuracy :
±0.5%FS
Data collection :
Pressure Sensors
Test station :
One
Exhaust system :
Automatic
Test medium :
Clean water
Control system :
PLC All-in-one Machine
Description


Automatic Hydraulic Pressure Testing System PLC Hydraulic Test Bench

Complied Standards & Clauses

It can meet the national standard IEC 60335-2-34, etc.

Product Overview

The PLC hydraulic test bench adopts gas-liquid proportional control, and the pressure source adopts the Sinuo series gas-liquid booster pump; a single gas-controlled non-balanced gas balanced gas distribution valve is used to realize the automatic reciprocating motion of the pump. The gas drive part of the pump body is made of aluminum alloy, and the aluminum alloy parts are oxidized to black after processing, ensuring the product's beautiful appearance and never rusting. The full set of pump seals are imported high-quality products, thus ensuring the performance of the pump, and the driving piston diameter is 160mm.


PLC control system and operating software:
PLC automatic control system:

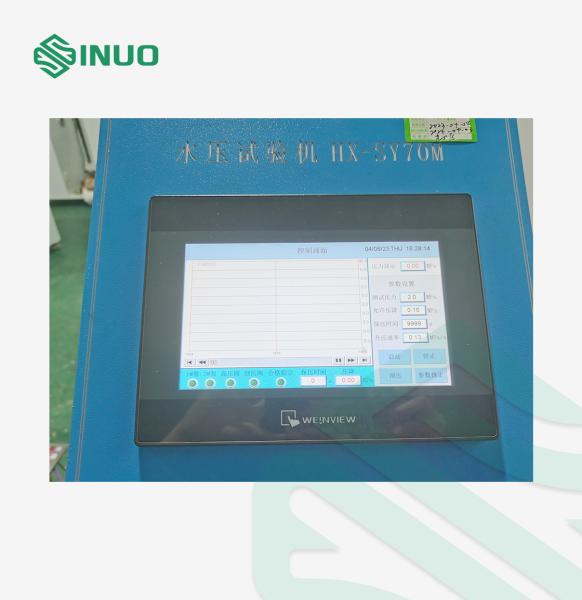

(1) The test process is displayed on the touch screen.
(2) Real-time detection of pressure changes and dynamic curve output.
(3) There is a special test program, and test data such as test pressure and test time can be set by yourself.
(4) The English operation interface is simple and convenient, and the control software is easy to update and maintain.

Recording function:
(1) Time pressure curve (standard configuration)
(2) Test time unit: s
(3) Pressure unit: MPa
Typical test procedures provided are:
①; Constant speed pressure increase - pressure maintenance - pressure relief

Technical Parameters

Item Specifications
Need air source 0.2-0.8MPa, 0.6Nm3/min
High pressure 1-100Mpa
Measurement accuracy ±0.5%FS
Time of pressure maintenance Arbitrary setting, with seconds as the timing unit
Data collection Pressure Sensors
Peak record Measurement and control software records
Test station One
Exhaust system Automatic
Test medium Clean water
Output interface ZG1/4 internal thread
Control system PLC All-in-one Machine
Device size 2000x800x1200mm
