200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
Specifications
Brand Name :
Sinuo
Model Number :
SN4410
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Chamber external size :
W 860* D 860*H 1800mm
Chamber inner size :
L 800* W 800* H 1200mm
Max. test water depth :
1.2m
Observation window width :
200mm
Test content :
IPX7
Observation window :
Tempered glass (thickness: 12mm)
Inner chamber material :
2.0mm thickness stainless steel
External chamber material :
Stainless steel plates + Aluminum profile frame
Description

Waterproof Testing Equipment IP Test Equipment IPX7 Immersion Test Chamber

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60598-1.

Equipment Overview

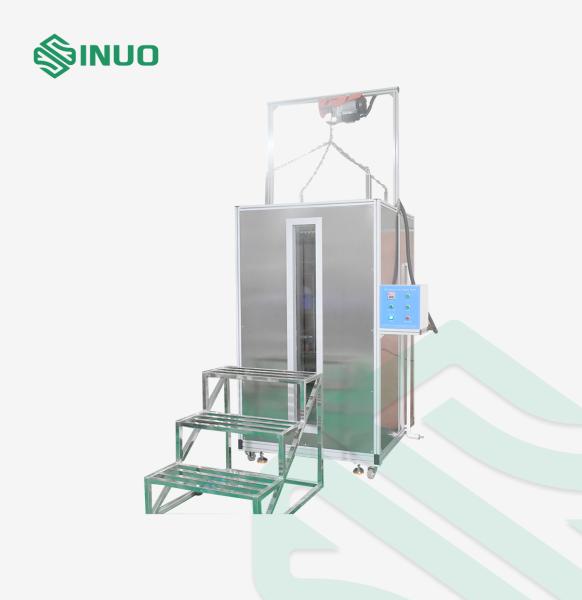

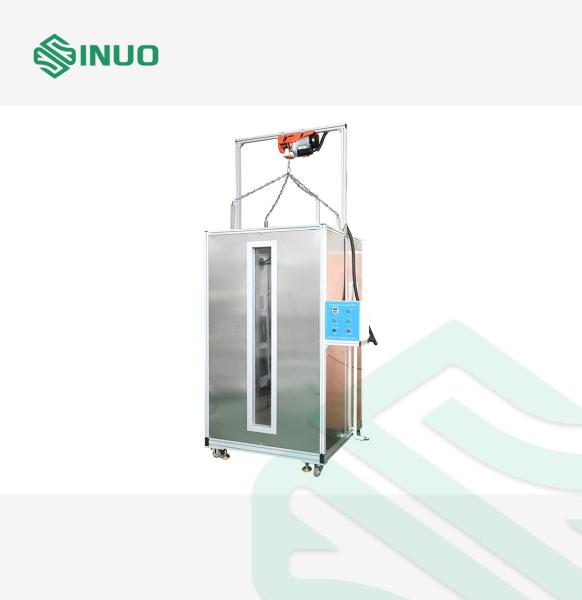

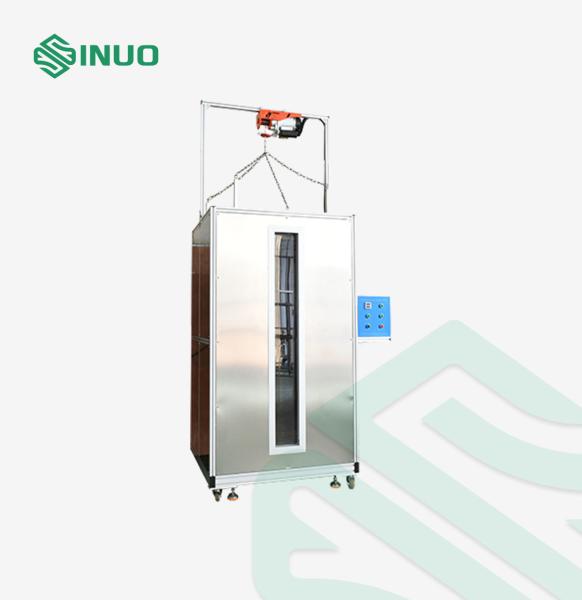

The IPX7 Immersion Test Chamber SN4410 is a precision-engineered waterproof testing solution designed for evaluating the ingress protection of products under temporary water immersion conditions. Built to comply with international standards such as IEC60529, IEC60335-1, IEC60884-1, and IEC60598-1, this chamber ensures your product meets IPX7 waterproofing requirements for both R&D and quality inspection.

Whether you're testing electrical appliances, lighting fixtures, automotive components, or sealed electronic enclosures, this chamber delivers consistent and accurate results. With its robust stainless-steel structure, electric lifting basket, and intuitive control panel, the SN4410 makes waterproof testing safe, efficient, and reliable.

Technical Parameters

Item

Specification
Model SN4410
Standards IEC60529 (IPX7), IEC60884-1, IEC60598-1
Application Waterproof testing under immersion conditions (IPX7)
Chamber External Dimensions Approx. 860 × 860 × 1800 mm (with casters)
Chamber Internal Dimensions 800 × 800 × 1200 mm
Maximum Water Depth 1.2 m
Observation Window 12 mm thick tempered glass, 200 mm wide
Water Level Adjustment Manual, via inlet/drain valves
Water Level Display Precision scale (accuracy: 1 mm)
External Material Stainless steel + aluminum profile frame
Inner Chamber Material 2.0 mm thick stainless steel

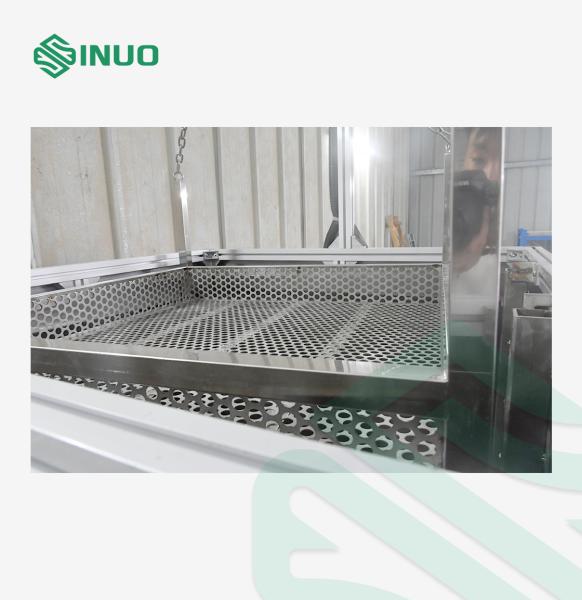

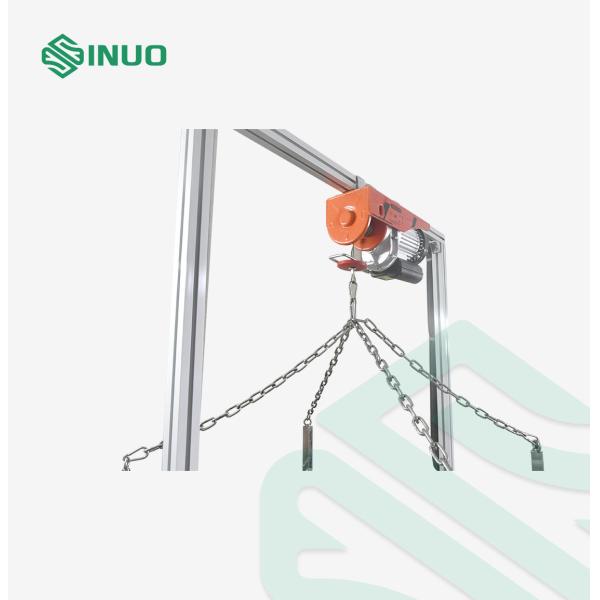

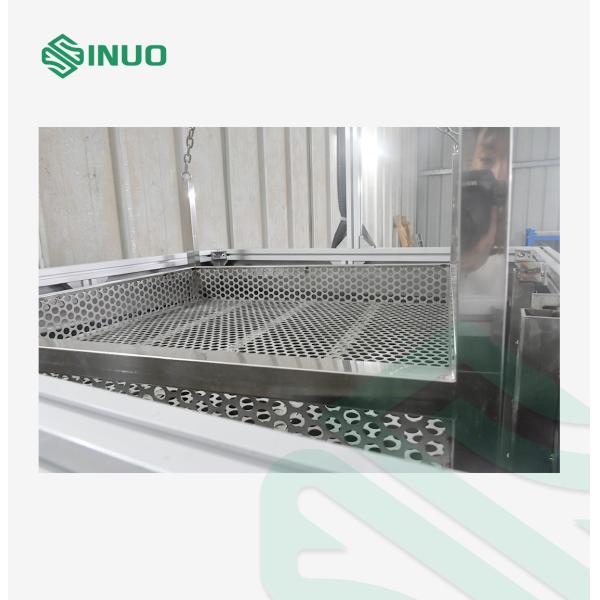

Test Basket Electric hoist-operated stainless-steel lifting basket

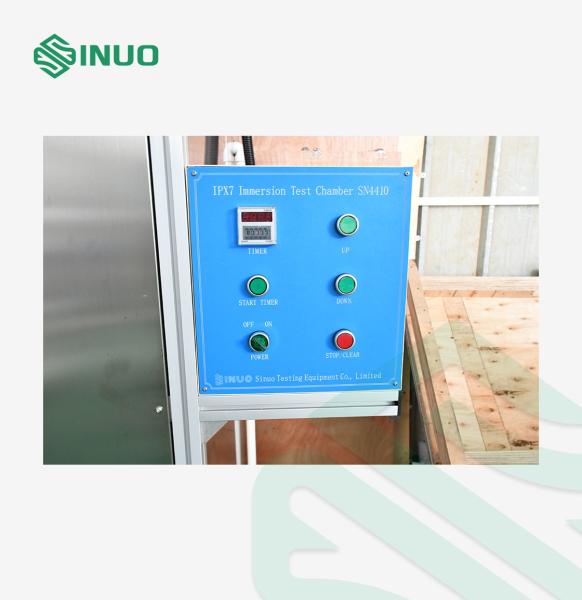

Control Method Button control (non-PLC)
Test Time Setting Range 0.01 sec to 99.99 hours
Immersion Depth Compliance Complies with IEC60529 IPX7 depth specifications
Power Supply AC 220V, 50Hz, 1KW

Details

200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber200mm Waterproof Testing Equipment IP IPX7 Immersion Test Chamber
