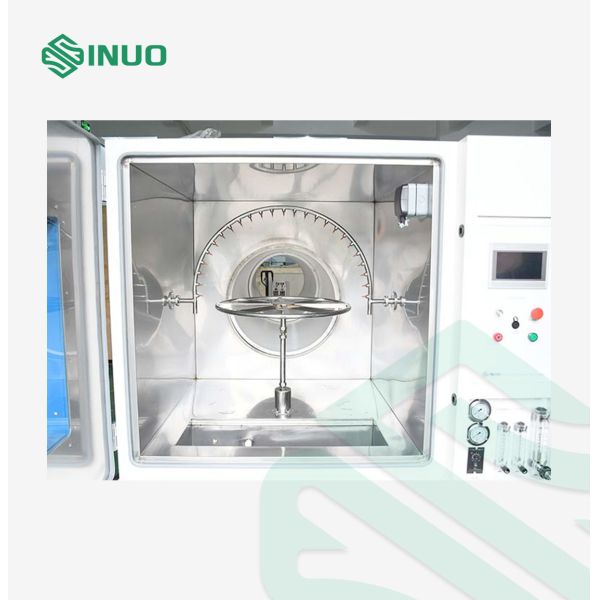

IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
Specifications
Brand Name :
Sinuo
Model Number :
SN4418
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Inner Chamber Size :
L1000*W1000*H1000mm
Outer Chamber Size :
L1480*W3800*H1800mm
Turntable Diameter :
￠400mm
Turntable Speed :
1 -5r/min (adjustable)
Turntable Rotation Method :
Always positive / positive and negative alternate
Flow Adjustment Method :
Manually adjust flow with adjustable panel flow meter
Turntable Maximum Load :
30KG
Equipment Total Wright :
350kg
Description

IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine

Complied Standards & Clauses

Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures(IP Code)> IPX3,IPX4, IPX5 and IPX6 test, figures 5 and figure 6.

Equipment Overview

Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.

Technical Parameters

Inner Chamber Size L1000*W1000*H1000mm
Outer Chamber Size L1480*W3800*H1800mm
Turntable Diameter ￠400mm
Turntable Maximum Load Bearing 30KG
Turntable Speed 1 -5r/min (adjustable)
Turntable Rotation Method Always positive / positive and negative alternate
Flow Adjustment Method Manually adjust flow with adjustable panel flow meter
Test Time 0-999 min
Equipment Total Wright 350kg
IPX34 Spray Nozzle Parameters
Parameters of Spray Nozzle

Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.
Water Flow 10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional
Pressure 50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
Moving Shield Made of aluminum, can be detachable
Spray Distance 2.5M (nozzle away from the center of the turntable)
Nozzle Fixed Method Mechanical fixing

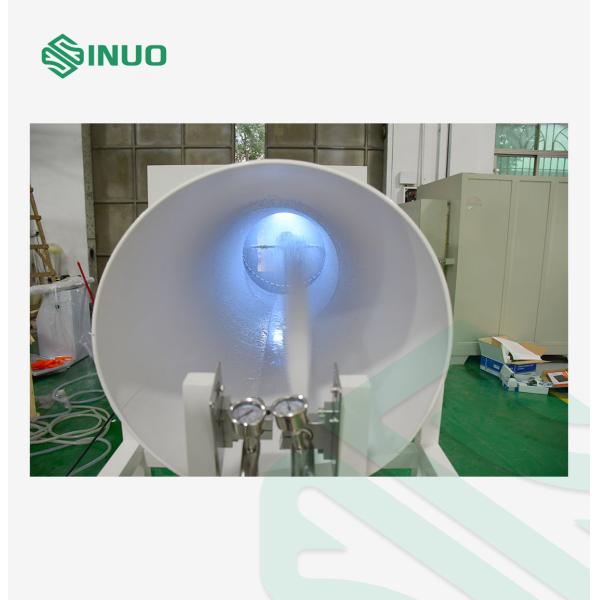

IPX56 Jet Nozzle Parameters
IPX5 Nozzle Jet Aperture 6.3mm
IPX6 Nozzle Jet Aperture 12.5mm
IPX5Jet Flow 12.5±0.625
IPX6 Jet Flow 100±5L/min
Water Pressure (Mpa) Adjusted according to the specified water flow
Jet Distance 2.5M (nozzle away from the center of the turntable)
Nozzle Fixed Method Mechanical fixing

Details

IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test MachineIPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine
