MIL-STD-810F Battery Hydraulic Mechanical Shock Testing Machine
MIL-STD-810F Battery Hydraulic Mechanical Shock Testing Machine
MIL-STD-810F Battery Hydraulic Mechanical Shock Testing Machine
MIL-STD-810F Battery Hydraulic Mechanical Shock Testing Machine
Specifications
Brand Name :
Sinuo
Model Number :
SN558-HSKT200
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Work Platform :
1000 × 1000 mm
Maximum load :
200kg
Half-sine peak acceleration :
15—300 G
Half-sine pulse duration :
3.5—30ms
Lifting method :
Hydraulic lift
Sampling frequency :
192KHz
Device size :
2150 × 1450 × 2250mm
Total equipment :
About 3000 kg
Description

MIL-STD-810F Battery Hydraulic Mechanical Shock Testing Machine

Complied Standards & Clauses

The equipment meets the test specifications of MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.

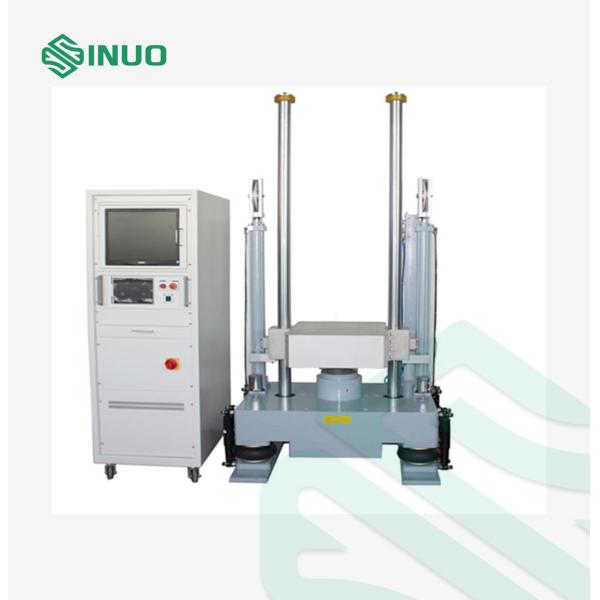

Product Overview

This shock test machine is designed for evaluating the mechanical robustness and structural integrity of products under impact conditions. It is widely used in fields such as electronics, aerospace, military, automotive components, shipping, and transportation. By configuring different waveform generators, it can perform a variety of shock tests including half-sine wave, post-peak sawtooth wave, and square wave simulations.

Environmental requirements:
1. On-site temperature: 5℃~+28℃ (average temperature within 24 hours ≤28℃);
2. Relative humidity: ≤ 85% RH;
3. Air source: 0.5--0.8MPa
4. Power supply conditions: three-phase five-wire;
5. Voltage range: AC380V;
6. Allowable frequency fluctuation range: (50±0.5)Hz;
7. The grounding resistance of the protective ground wire is less than 4Ω;
8. The user is required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must be used independently for this equipment.

Technical Parameters

Work Platform 1000 × 1000 mm
Work surface material High-strength imported high-quality aluminum alloy
Maximum load 200kg
Half-sine peak acceleration 15—300 G
Half-sine pulse duration 3.5—30ms
Lifting method Hydraulic lift
Device size Approx. 2150 × 1450 × 2250mm
Total equipment About 3000 kg
Measurement system
Input Channels 2 channels
Sampling frequency 192KHz
Input form Voltage, charge
Voltage range -10V--+10V
Coupling method AC,DC,ICP

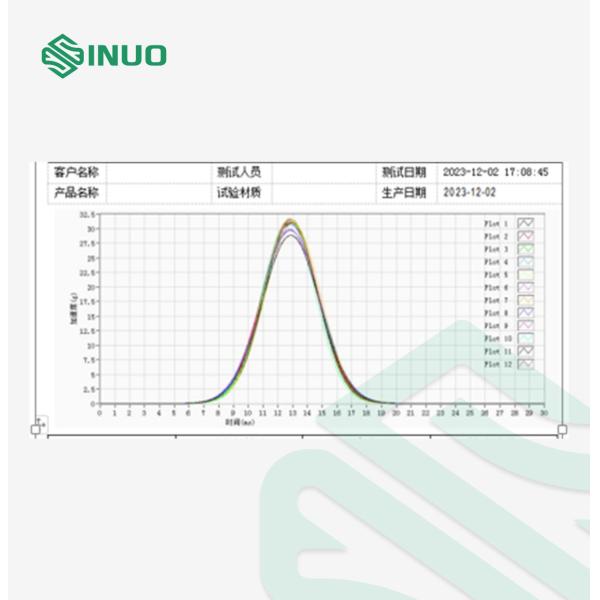

Shock Waveform Half Sine
Communication interface USB2.0
Supported standards National standard, national military standard, US military standard, user-defined standard
Operating system Microsoft Windows7/10

Details

MIL-STD-810F Battery Hydraulic Mechanical Shock Testing MachineMIL-STD-810F Battery Hydraulic Mechanical Shock Testing Machine
