UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
Specifications
Brand Name :
Sinuo
Model Number :
SN555
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Drop weight :
9.1±0.1kg
Drop height :
1~1000mm
Display accuracy :
≤1mm
Height accuracy :
±3mm
Display mode :
Touch screen
Test space :
W300 X D500 X H1000mm
Machine power :
500W
Machine weight :
About 200KG
Description

UN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine

Complied Standards & Clauses

UL1642 "Mechanical Tests in Lithium Battery Standards - Impact Tests"

UL2054-2005 "Mechanical Tests in Battery Standards - Impact Tests"

UN38.3 "Standard Regulations for Testing Lithium Batteries and Battery Packs - Impact Tests"

GB/T36276-2018 "Lithium-ion Batteries for Power Energy Storage"

GB/T36972-2018 "Lithium-ion Storage Batteries for Electric Bicycles"

YD 1268- 2003 "Safety Requirements for Impact Tests on Batteries and Chargers for Mobile Communication Handheld Devices"

Product Overview

The Battery Heavy Impact Test Machine is designed to evaluate the safety performance of lithium-ion batteries and battery packs under extreme mechanical stress. By simulating real-world heavy object drops, the machine tests whether batteries can resist explosion or fire when impacted, ensuring compliance with international standards such as UN38.3, UL1642, GB31241, and IEC62281.

This equipment is essential for battery manufacturers, safety labs, EV battery R&D centers, and quality assurance teams.

Technical Parameters

Drop weight 9.1±0.1kg
Drop height 1~1000mm (heavy objects can be lifted to a certain height and released. Ensure that the heavy objects fall freely in the vertical direction without tilting or shaking)
Display accuracy ≤1mm
Height accuracy ±3mm

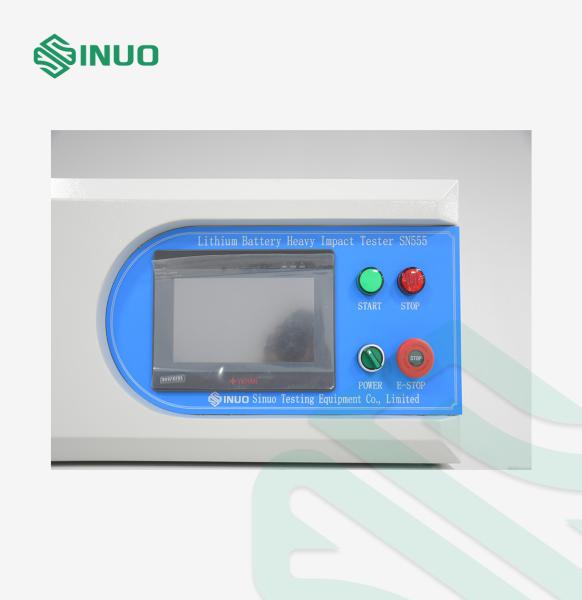

Display mode Touch screen
Diameter of horizontal bar 15.8±0.2 mm (This steel bar is placed vertically in the middle of the battery, and a heavy object falls on the steel bar, and the steel bar remains parallel to the bottom surface of the square battery;)
Test space W300 X D500 X H1000mm
Inner box material SUS 201# stainless steel (1.2mm thickness, total thickness of reinforcement and outer box is 80mm)
Outer box material Cold mixed plate baking (1.5mm thickness)
Exhaust vent 150mm, located above the back of the box
Box door Single door, open observation window, cold handle door lock
Window size 300*300*10mm thick tempered explosion-proof glass)
Lifting mode Electric lifting
Upper and lower impact surface Steel plate
Dimensions W750XD700XH1600 mm
Power AC 220V
Power 500W
Machine weight About 200KG

Details

UN38.3 Lithium Battery Safety Testing Heavy Impact Test MachineUN38.3 Lithium Battery Safety Testing Heavy Impact Test Machine
