IEC-68-2-27 Battery Acceleration Mechanical Shock Tester Test System
IEC-68-2-27 Battery Acceleration Mechanical Shock Tester Test System
IEC-68-2-27 Battery Acceleration Mechanical Shock Tester Test System
IEC-68-2-27 Battery Acceleration Mechanical Shock Tester Test System
Specifications
Brand Name :
Sinuo
Model Number :
SN558-SKT200
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Working platform :
1000×1000 mm
Maximum load :
200KG
Maximum acceleration :
10000G
Voltage range :
-10VPEAK~+10 VPEAK
Sampling frequency :
Up to 1MHz
Pulse duration :
0.1—100ms
Frequency range :
0.5---12KHz
Acceleration range :
±2500G
Description

IEC-68-2-27 Battery Acceleration Mechanical Shock Tester Test System

Complied Standards & Clauses

The equipment meets the test specifications of GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.

Product Overview

This mechanical shock tester is mainly suitable for shock resistance tests in the fields of electronic products, aerospace, shipbuilding, military industry, automotive parts, transportation, etc.

By selecting different waveform generators, half-sine wave, post-peak sawtooth wave or square wave Shock tests can be performed.

Technical Parameters

Shock machine main parameters
Working platform 1000×1000 mm
Maximum load 200KG
Peak acceleration

Half sine wave 10--400G

Post-peak sawtooth wave: 15-100G (need to be purchased)

Trapezoidal wave: 15-60G (need to be purchased)
Pulse duration

Half sine wave: 3-30 ms

Post-peak sawtooth wave: 6-18 ms (need to be purchased)

Trapezoidal wave: 6-30 ms (need to be purchased)
Acceleration tolerance ≤10%
Speed ​​change ≤10%
Table surface lateral ratio ≤10%
Equipment size 1780×1470×2450mm
Total equipment volume 5500 kg

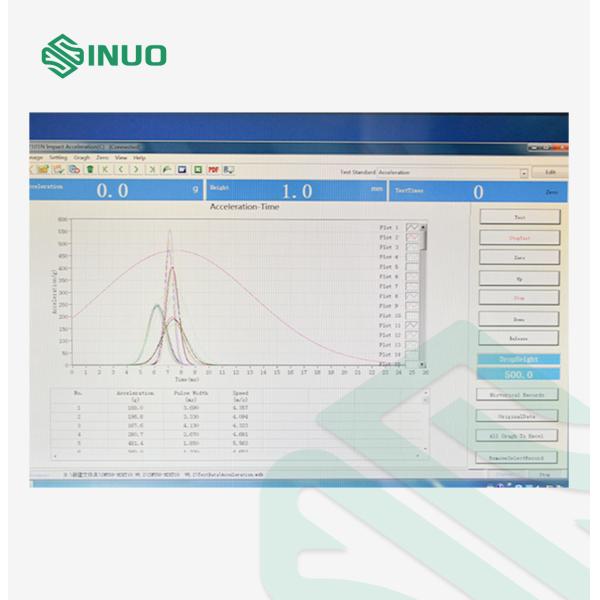

Measurement system
Input channels 2 channels, support direct access of voltage and IEPE signals
Sampling frequency Up to 1MHz
Pulse duration 0.1—100ms
Maximum acceleration 10000G
Communication interface USB2.0
Voltage range -10VPEAK~+10 VPEAK
Supported standards National standard, national military standard, ISO, MIL-STD-810, user-defined
Operating system Microsoft Windows 10
Analysis function Shock measurement analysis, shock response spectrum analysis, pulse analysis, shock damage boundary analysis, auxiliary force deformation, shock response time domain calculation, FFT analysis, etc.

Details

IEC-68-2-27 Battery Acceleration Mechanical Shock Tester Test SystemIEC-68-2-27 Battery Acceleration Mechanical Shock Tester Test System
