Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Specifications
Brand Name :
Sinuo
Model Number :
SN4413-1400
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 days
Packaging Details :
Export packing
Inner Chamber :
1400mm*1400mm*1400mm
Outer Chamber :
1900mm*1560mm*2400mm
Rotating Speed :
1 ~5 rpm adjustable
Turntable Diameter :
600mm
Turntable Height :
200mm
Dripping Area :
1000X1000 mm
Dripping Hole Diameter :
φ0.4 mm
Dripping Aperture Spacing :
20 mm
Description

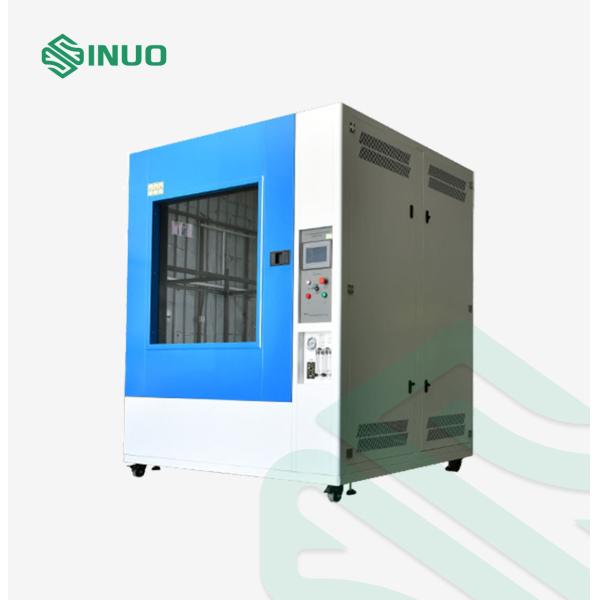

Waterproof Drip and Spray Test Chamber IPX1 to IPX4 Rain Test Chamber


Complied Standards & Clauses

The equipment is designed and manufactured according to requirements of IEC 60529: 2013 IPX1, IPX2, IPX3 and IPX4.

Product Overview

It is used for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.

Technical Parameters

Model SN4413-1400
Inner Chamber 1400mm*1400mm*1400mm
Outer Chamber Approx. 1900mm*1560mm*2400mm
Outer Chamber Material Spray treatment, concise, beautiful and smooth
Inner Chamber Material High quality stainless steel plate
Weight Approx.380KG
Turntable
Rotating Speed 1 ~5 rpm adjustable
Turntable Diameter 600mm
Turntable Height Adjustable height: 200mm
Turntable Bearing Capacity Max. 20KG
Turntable Function

IPX1 turntable parallel

IPX2 turntable can be tilted 15°

IPX3/4 turntable can rotation 360°

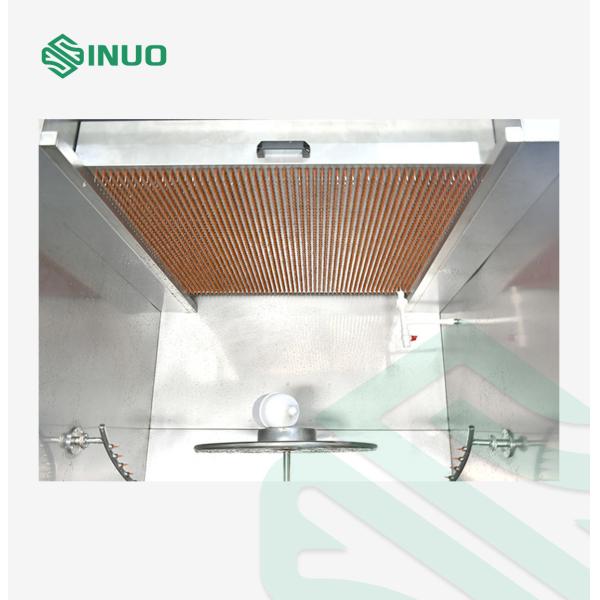

IPX1/2 Dripping
Dripping Hole Diameter φ0.4 mm
Dripping Aperture Spacing 20 mm
IPX1, IPX2 Dripping speed (water flow)

1 +0.5 0mm/min(IPX1)

3 +0.5 0mm/min(IPX2)
Dripping Area 1000X1000 mm
Distance between Drip Box and Sample 200 mm

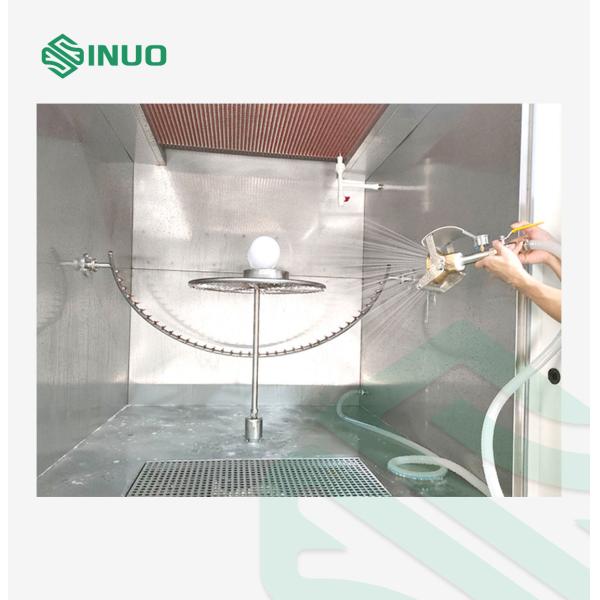

IPX3/4 Oscillating Tube
Oscillation Tube R600 mm
Distance between Nozzle Sample Within 200mm
Spray Aperture Spacing 50 mm
Oscillating Angle Range of Oscillating Tube

±60° (IPX3),

approximately ±160°(IPX4)

(Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
Needle Hole φ0 .4 mm
Oscillating Speed IPX3: 15times/min; IPX4: 5times/min
Water Flow of Each Hole 0.07 L/min +5%
Spray Pressure 80-150Kpa

Details

Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test ChamberWaterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
