IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-1
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Complied Standards :
IEC61032
Complied Clauses :
fig.1
Name :
Test probe A
Model :
SN2210-1
Description


IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe

Complied Standards & Clauses

It conforms to the standard requirements of IEC61032 fig.1, IEC60529 IP1X and IEC60065, etc.


Product Overview

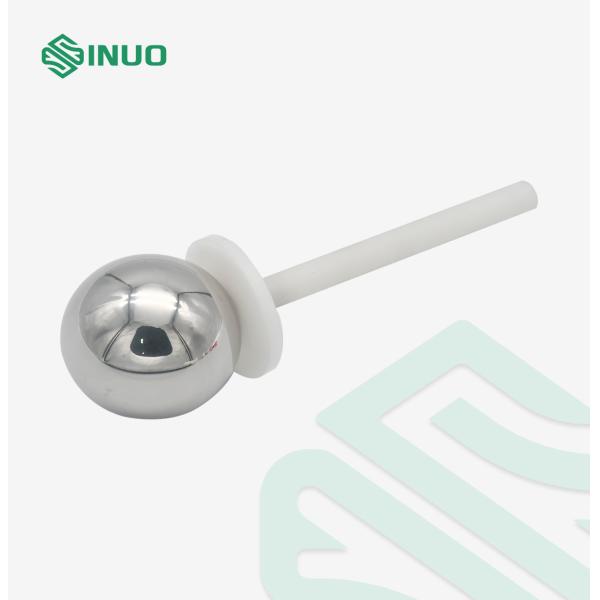

This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

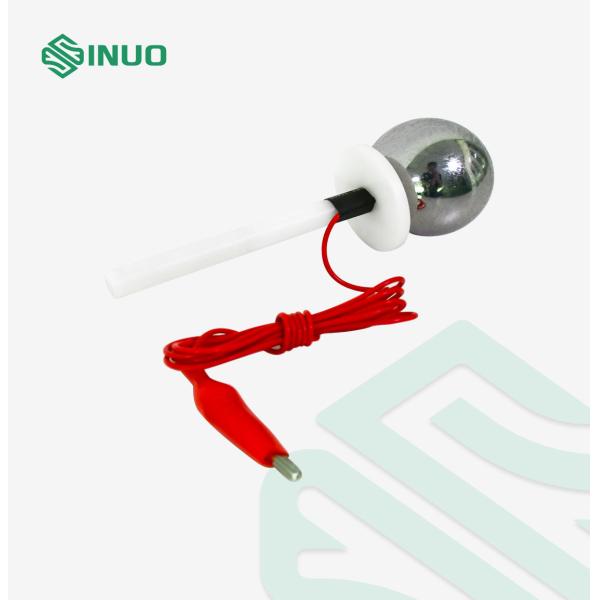

This test probe can be customized. It can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). The probe whose model number is with "T" is with force.

Technical Parameters

Parameters /Model SN2210-1 SN2210-1T (Optional)
Name Test probe A Test probe A with force
1 SФ50+0.05 0(mm) SФ50+0.05 0(mm)
2 Ф45±0.2(mm) Ф45±0.2(mm)
3 Ф10(mm) Ф10(mm)
4 4(mm) 4(mm)
5 100(mm) 100(mm)
6 ---- With force of 50N

Details

IEC 60529 IP1X Test Probe A Anti-electric Shock Test ProbeIEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
