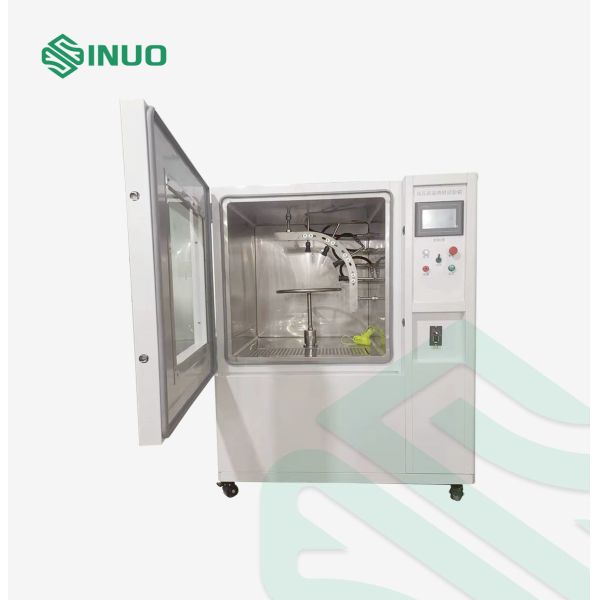

IPX9 High Pressure High Temperature Water Jetting Test Chamber
IPX9 High Pressure High Temperature Water Jetting Test Chamber
IPX9 High Pressure High Temperature Water Jetting Test Chamber
IPX9 High Pressure High Temperature Water Jetting Test Chamber
IPX9 High Pressure High Temperature Water Jetting Test Chamber
IPX9 High Pressure High Temperature Water Jetting Test Chamber
IPX9 High Pressure High Temperature Water Jetting Test Chamber
IPX9 High Pressure High Temperature Water Jetting Test Chamber
Specifications
Brand Name :
Sinuo
Model Number :
SN4412-1000L
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
1 sets/month
Delivery Time :
45 days
Packaging Details :
Other
Inner chamber size :
L 1000MM * W 1000MM*H 1000MM
Outside chamber size :
L 1500MM * W1200MM * H 1950MM
Pipe diameter :
3/4”
Jet nozzle :
4 pcs
Jet water pressure :
80 ~ 100bar
Water jet flow :
15±1 L / min (14-16L/min)
Turntable diameter :
Φ400mm
Run time control :
1min ~ 9999min
Description


IPX9 High Pressure High Temperature Water Jetting Test Chamber

Complied Standards & Clauses

Conforms to IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, DIN40050-9, ISO20653 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects), protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water).

Equipment Overview

Application:It is used to inspect the enclosures of the electrical equipment (IP supplementary code test), and it is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.

Test sample:Products should pass IPX9 degrees waterproof test, such as automotive and motorcycle parts, electrical and electronic industries.


Technical Parameters

Inner chamber size L 1000MM * W 1000MM*H 1000MM
Outside chamber size Approx. L 1500MM * W1200MM * H 1950MM
Jet system Composed by the high pressure high temperature water pump, high pressure high temperature water pressure meter, high pressure high temperature solenoid valve, high pressure high temperature hydraulic pipe.
Pipe diameter 3/4”
Jet nozzle 4 pcs
Hot water jet temperature RT~80°C±5°C. (Adjustable, enhanced temperature and water overflow protection)
Jet water pressure 80 ~ 100bar (8000 ~ 10000Kpa, 81.5-101.9kg/c㎡)
Water jet flow 15±1 L / min (14-16L/min)
Jet distance 100-200mm and can be adjustable nozzle distance by manual
Water jet angle 0 °, 30 °, 60 °, 90 ° (The testing angle can be adjustable by manual), based on a horizontal line, distribute nozzle hole at anticlockwise ±0° ±30° ±60° ±90° with valve on nozzle, can set programmable to jet in turn.
Test time each angle water jet 30 seconds as per standard requirements, but our system can achieve 0~90s pre-settable and adjustable.
Turntable The product needs to be placed on a turntable, bearing capacity: ≤30Kgs.
