Specifications
Brand Name :
Sinuo
Model Number :
SN448
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Outer diameter :
Ф102mm
spherical diameter :
SФ75.5mm
Water Flow :
10L/min±5%
Moving Shield :
Made of aluminum
Delivery Rate :
IPX5: 12.5±0.625L/min IPX6: 100±5 L/min
Pressure Gauge :
0~0.25MPa
Test Duration :
0.01S～99.9 min
Power Supply :
AC380V,50Hz, 4KW
Description

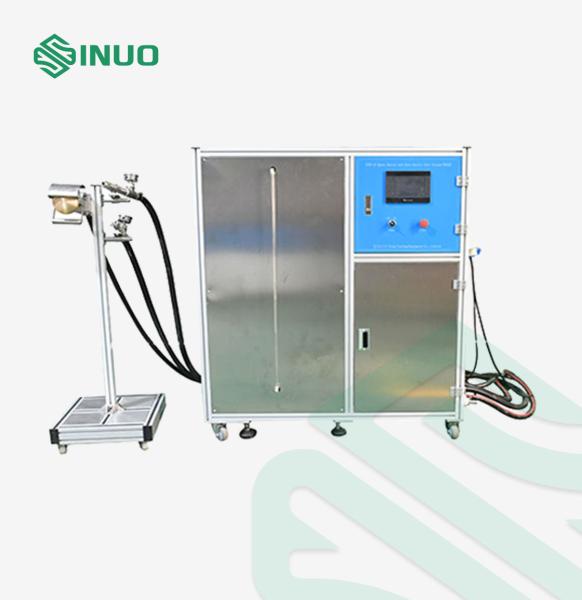

IPX3 IPX4 Spray Test IPX5 IPX6 Jet Test System Spray and Jet Nozzle Test Machine

Complied Standards & Clauses

IPX3~6 Spray Nozzle and Hose Nozzle Test System is designed and manufactured according to IEC60529:2013.


Product Overview

The testing system is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX3, IPX4, IPX5 and IPX6.

This IPX4, IPX5 and IPX6 water ingress testing equipment ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 5 and 6.

Technical Parameters

IPX3/4
Parameters of Spray Nozzle

Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.

IPX3 IPX4 Spray Test IPX5 IPX6 Jet Test System Spray And Jet Nozzle Test Machine
Water Flow 10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional
Pressure 50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
Moving Shield Made of aluminum, can be detachable
Water Spray Directions The angle of water spraying can be adjusted
IPX5/6
Parameters of Hose Nozzle

IPX5: Ф6.3mm; IPX6: Ф12.5mm

IPX3 IPX4 Spray Test IPX5 IPX6 Jet Test System Spray And Jet Nozzle Test Machine
Delivery Rate

IPX5: 12.5±0.625L/min

IPX6: 100±5 L/min
Distance from Nozzle to Enclosure Surface 2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Water Jet Directions The angle of water jetting can be adjusted

Details

IPX3 IPX4 Spray Test IPX5 IPX6 Jet Test System Spray And Jet Nozzle Test MachineIPX3 IPX4 Spray Test IPX5 IPX6 Jet Test System Spray And Jet Nozzle Test Machine
