IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
Specifications
Brand Name :
Sinuo
Model Number :
SN444
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Needle hole :
Φ0.4mm
Raining speed :
IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°);
Water flow :
0.07 L/minX
Pressure gauge :
0~0.25MPa
Turntable diameter :
Φ600mm
Rotation speed :
1r/min
Testing time :
1-99999S can be preset
Electrical control :
PLC & touch screen
Description


IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine

Complied Standards & Clauses

IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013.


Product Overview

It is used for testing the IPX3/IPX4 waterproof level of electrical and electronic products.

The complete set of IPX3~4 oscillating tubes test system is composed of one set of oscillating tubes swing device, one full set of oscillating tubes of R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm, a turntable, and an intelligent water supply and control cabinet.

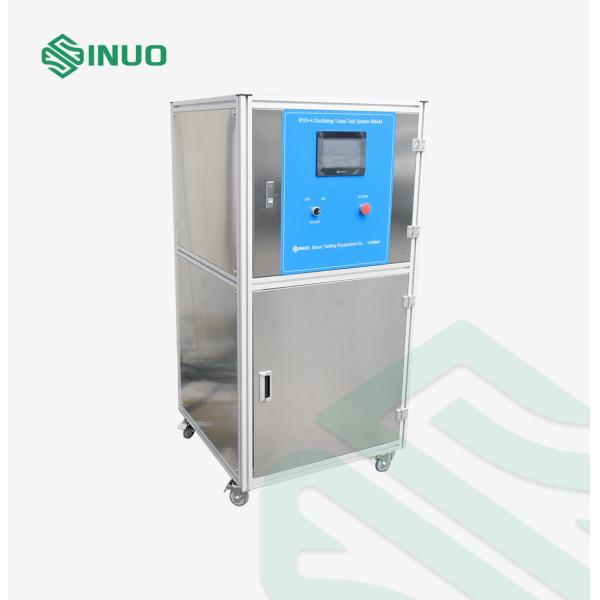

The intelligent water supply and control cabinet is composed of a water supply tank, a water pump, and a control system. The test water supply flow is controlled by a PLC, a frequency converter, and a flow meter.

Technical Parameters

Item parameters
Water supply

Water flow rate＞10L/min±5% clean water without inclusion.

This device is equipped with clean water filtration unit
The size of the oscillating tube Coming with R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
Needle hole Φ0.4mm
Included angle of two holes IPX3:120°; IPX4:180°

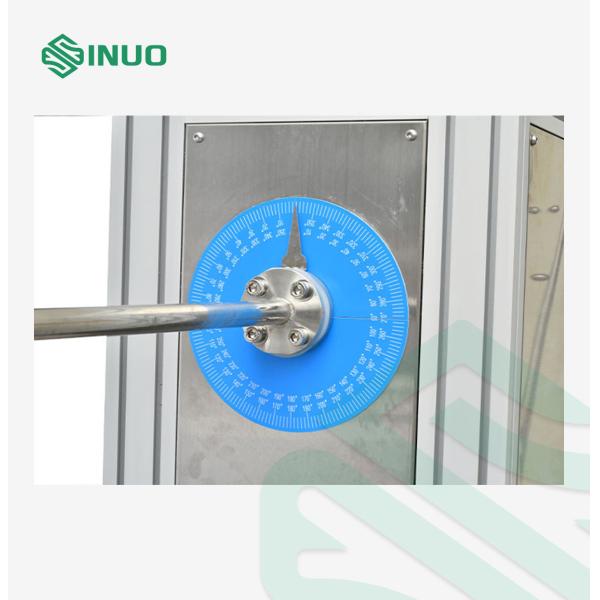

Oscillating tube swing angle

Max. ±175° can be preset

(Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
Raining speed

IPX3:4s/time (2×120°);

IPX4:12s/time (2×360°);
Water flow Can be set according to the size of the oscillating and the number of the pin holes (0.07 L/minX per hole)

Details

IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing MachineIPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
