Specifications
Brand Name :
Sinuo
Model Number :
SN444
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Raining speed :
IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°);
Needle hole :
Φ0.4mm
Pressure gauge :
0~0.25MPa
Water flow :
0.07 L/minX
Rotation speed :
1r/min
Turntable diameter :
Φ600mm
Electrical control :
PLC & touch screen
Testing time :
1-99999S can be preset
Description


Oscillating Tube Water Spray Tester IPX3 IPX4 Waterproof Test System

Complied Standards & Clauses

The SN444 IPX3~4 Oscillating Tubes Test System is a professional-grade waterproof testing solution developed in accordance with IEC60529:2013.


Product Overview

The SN444 IPX3~4 Oscillating Tubes Test System is a professional-grade waterproof testing solution developed in accordance with IEC60529:2013. It is specifically designed for testing the IPX3 and IPX4 water ingress protection levels of electrical and electronic products.

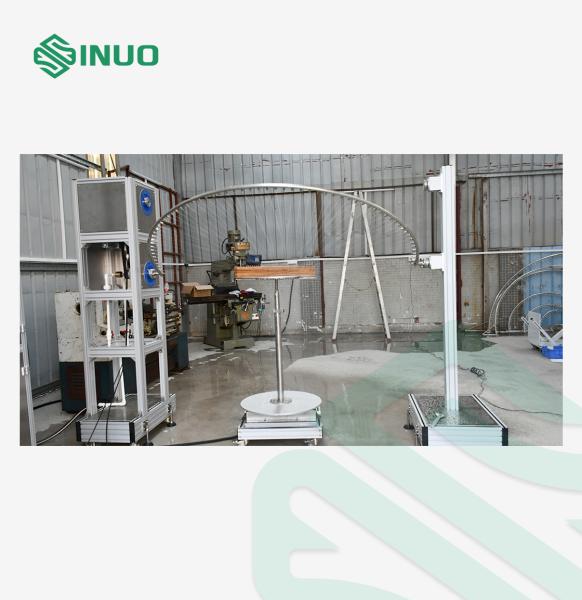

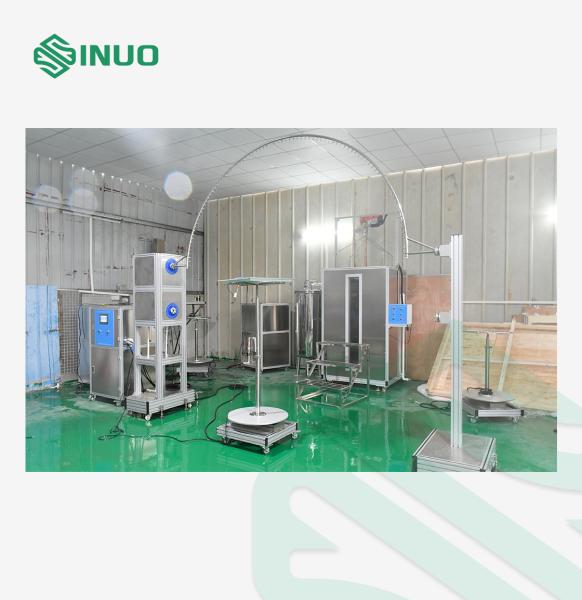

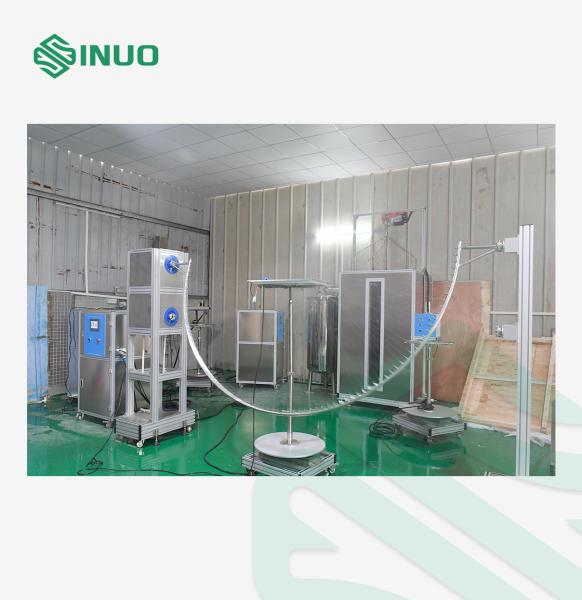

Equipped with a wide range of oscillating tubes (R200mm to R1600mm), a precision turntable, and a smart water supply control cabinet powered by PLC and touch screen interface, this system enables accurate, programmable, and repeatable waterproof testing. The adjustable swing angle, precise flow control, and customizable testing durations ensure full compliance with international standards.
This is an ideal testing solution for manufacturers of electrical appliances, automotive parts, outdoor electronics, lighting, and other IP-rated products seeking to verify waterproof protection through rigorous and automated testing processes.

Technical Parameters

No.

Item

Specification
1 Water Supply Flow rate >10L/min ±5%, clean filtered water

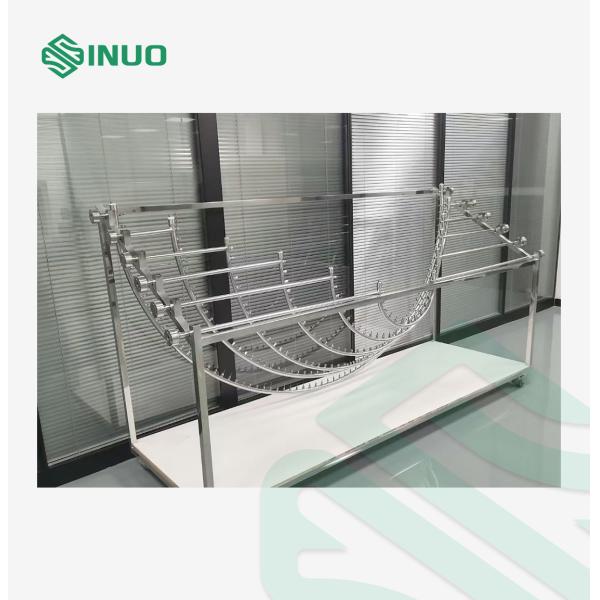

2 Oscillating Tube Sizes R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm (Stainless Steel)
3 Needle Hole Diameter Φ0.4mm
4 Included Angle of Holes IPX3: 120°, IPX4: 180°

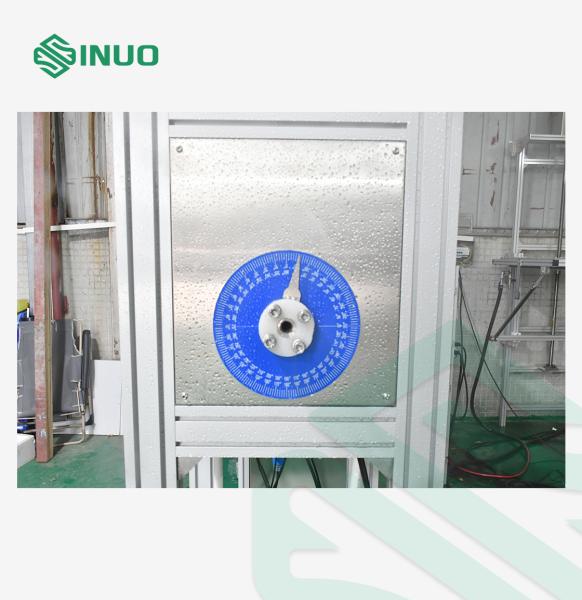

5 Swing Angle of Tube Max. ±175° (preset), compliant with IPX3/4 swing standards
6 Raining Speed IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°)
7 Water Flow Per Hole Adjustable (0.07 L/min × per hole)
8 Test Time Programmable from 1 to 99999 seconds
9 Pressure Gauge 0~0.25 MPa
10 Turntable Φ600mm, 1 r/min, load capacity ≤50 kg
11 Installation Site Requirements Flat ground, lighting, drainage, waterproof socket, ground installation
12 Control System PLC + Touch screen control
13 Power Supply (Machine) AC 380V, 50Hz, 4kW
14 Power Supply (Test Sample) AC 220V, 10A
