IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN442
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
IPX5 Nozzle Internal Diameter :
Ф6.3mm
IPX6 Nozzle Internal Diameter :
Ф12.5mm
IPX5 Delivery Rate :
12.5±0.625L/min
IPX6 Delivery Rate :
100±5 L/min
Pressure Gauge :
0~0.25MPa
Test Duration :
0.01S～99.9 min
Turntable Diameter :
Φ600mm
Rotation Speed :
1r/min
Description


IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment

Complied Standards & Clauses

It is designed and manufactured in accordance with the standard requirement of IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX5 and IPX6.


Product Overview

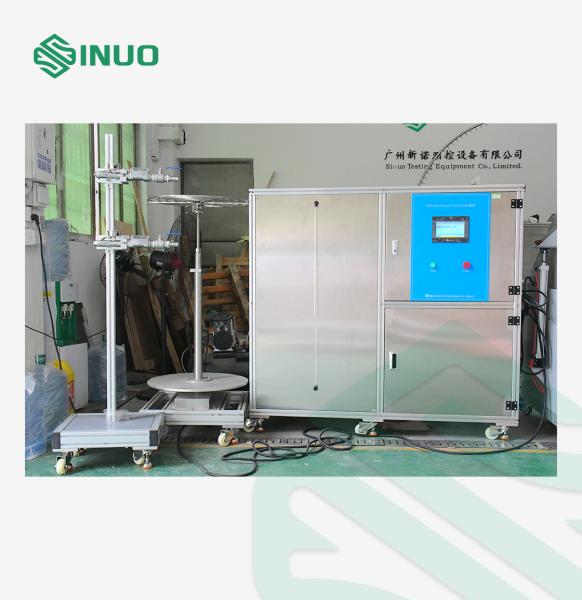

The testing system is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree I IPX5 and IPX6.

This IPX5 and IPX6 water ingress testing equipment ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.

Technical Parameters

IPX5/6

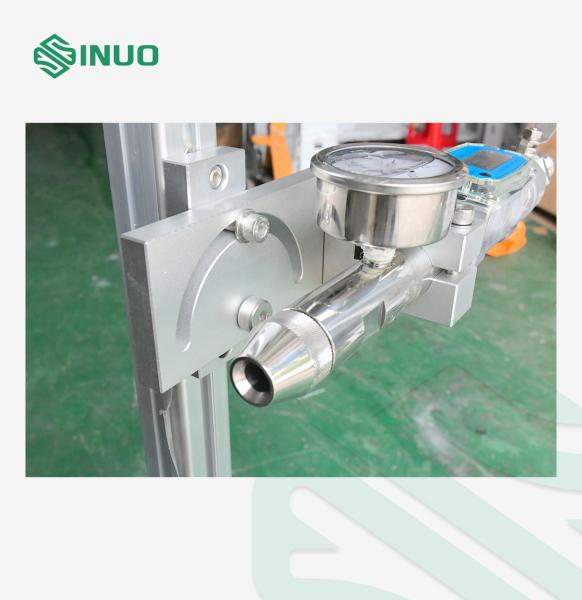

Parameters of Hose Nozzle

IPX5: Ф6.3mm; IPX6: Ф12.5mm

IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
Delivery Rate

IPX5: 12.5±0.625L/min

IPX6: 100±5 L/min
Distance from Nozzle to Enclosure Surface 2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Water Jet Directions The angle of water jetting can be adjusted
General
Control & Operation PLC and touch screen intelligent control system
Nozzle Fixed Method Spray nozzle and hose nozzles are fixed on the support
Pressure Gauge 0~0.25MPa, can be displayed
Test Duration 0.01S～99.9 min, can be preset
Turntable Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs

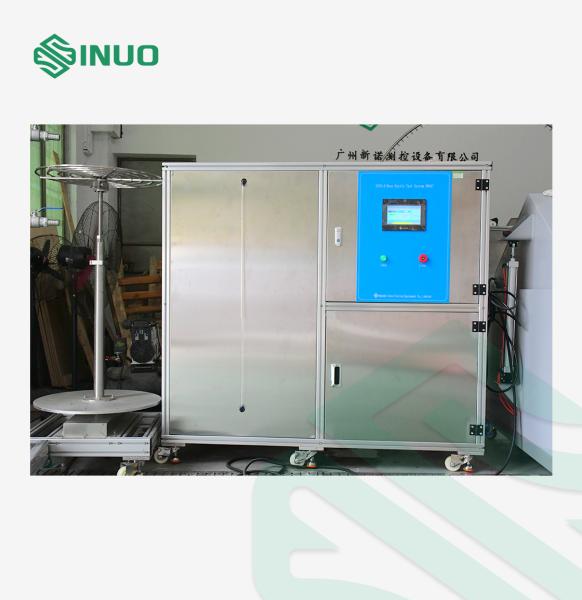

Water Storage Tank This test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. The water storage tank and electrical control part are integrated.
Safety Protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection.
Power Supply AC380V,50Hz, 4KW

Details

IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test EquipmentIPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
